SELECT A DIAGRAM

02 - Cook Top


03 - Oven


04 - Section


05 - Door And Drawer

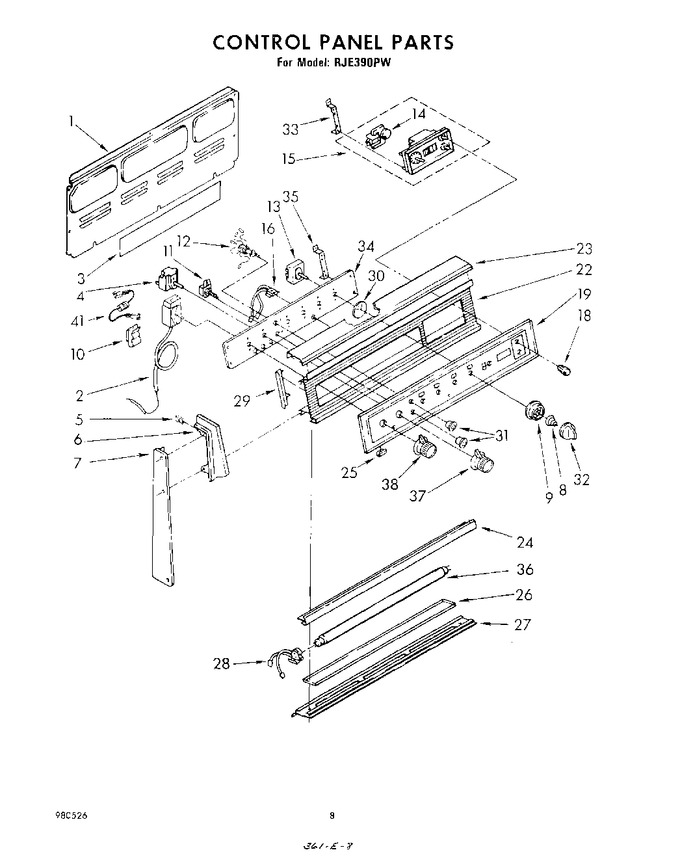

06 - Control Panel , Literature And Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	309239		Cover, Rear		Appelez-nous	-
1	WP681414		Screw, 10-16 X 1/2 (10)   (Replaces: 343641)			Immediately	$ 7.07
2	310018		Thermostat, Oven		Appelez-nous	-
2	487384		Screw, 6-32 X 1/4 (2)		Appelez-nous	-
3	309289		Barrier Strip		Appelez-nous	-
4	310005		Switch, Selector		Appelez-nous	-
4	155023		Screw, 8-32 X 1/4 (2)			Immediately	$ 7.91
5	98084		Clip, End Cap (6)		Appelez-nous	-
6	W11693756		Screw (4)   (Replaces: 98168)			Immediately	$ 12.65
6	308472		End Cap, L.h.		Appelez-nous	-
6	308470		End Cap, R.h.		Appelez-nous	-
7	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 7.07
7	WP965173		Screw, 8a X 3/8 (2)   (Replaces: 246132)			Immediately	$ 9.65
7	328333		End Trim, L.h.		Appelez-nous	-
7	328331		End Trim, R.h.		Appelez-nous	-
8	308348		Spring, Bezel (4)		Appelez-nous	-
9	308350		Bezel Control Knob (4)		Appelez-nous	-
10	309211		Tube Clip		Appelez-nous	-
11	255912		Nut, 1/2 Hex		Appelez-nous	-
11	308829		Switch, Oven Light		Appelez-nous	-
12	308830		Switch, Fluorescent Light		Appelez-nous	-
12	255912		Nut, 1/2 Hex		Appelez-nous	-
13	155023		Screw, 8-32 X 1/4 (8)			Immediately	$ 7.91
13	WP3149399		Switch, Infinite (use W/8`` Surface Unit) (2)   (Replaces: 308456)				$ 276.84
13	WP3149401		Switch Infinite (use W/6`` Surface Unit) (2)   (Replaces: 308457)				$ 134.65
14	308594		Motor, Timer		Appelez-nous	-
15	308846		Palnut, 10-32 (4)		Appelez-nous	-
15	310325		Timer, Digital (includes Illus. 14)		Appelez-nous	-
16	310326		Light, Indicator (surface Units (1))		Appelez-nous	-
16	308753		Light, Indicator (clean, Lock & Oven (3))		Appelez-nous	-
18	255853		Knob, Timer (3)		Appelez-nous	-
19	310730		Glass Panel		Appelez-nous	-
22	308754		Panel, Backup		Appelez-nous	-
23	308579		Rail, Top		Appelez-nous	-
24	308580		Rail, Bottom		Appelez-nous	-
24	254225		Screw, 8bt X 1/4 (3)		Appelez-nous	-
25	308974		Retainer, Glass (6)		Appelez-nous	-
26	308756		Lens, Lamp		Appelez-nous	-
27	309242		Retainer, Lens		Appelez-nous	-
28	308845		Nut, Speed (2)		Appelez-nous	-
28	WP3390631		Screw, 10a X 3/8 (7)   (Replaces: 309112)				$ 7.04
28	WP488627		Screw (2)   (Replaces: 342055)				$ 6.81
28	308851		Socket Assembly (l.h.)		Appelez-nous	-
28	308850		Socket Assembly (r.h.)		Appelez-nous	-
28	WP488366		Relief, Strain (2)   (Replaces: 308600)				$ 10.06
29	308779		Filler, Side (2)		Appelez-nous	-
29	246131		Screw, 6a X 3/8 (2)		Appelez-nous	-
30	308352		Skirt, Control Knob (4)		Appelez-nous	-
31	308784		Bezel, Switch (2)		Appelez-nous	-
32	308346		Knob, Control (4)		Appelez-nous	-
33	308823		Bracket, Timer (2)		Appelez-nous	-
34	308778		Plate, Control Panel		Appelez-nous	-
35	98520		Screw (6)		Appelez-nous	-
35	308824		Bracket, Plate (3)		Appelez-nous	-
36	WP488627		Screw (2)   (Replaces: 342055)				$ 6.81
36	WP95292		Lamp, Fluorescent   (Replaces: 95292)			Immediately	$ 121.45
37	328707		Knob, Selector		Appelez-nous	-
38	328709		Knob, Thermostat		Appelez-nous	-
41	980526		List, Parts		Appelez-nous	-
41	350956		Paint, Spray 13 Oz. (almond)				$ 46.30
41	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
41	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 16.12
41	799832		Kit. Porcelain Repair (white)		Appelez-nous	-
41	261810		Touch-up Self-clean (1/2 Pt.)		Appelez-nous	-
41	261582		Grease		Appelez-nous	-
41	WPW10208653		Insulation, Fiberglass (1-1/2`` X 24`` X 120``)   (Replaces: 261514)			Immediately	$ 49.92
41	WPW10208653		Insulation, Fiberglass (2-1/2`` X 22`` X 120``)   (Replaces: 240132)			Immediately	$ 49.92
41	241430		Foil, Aluminum Oven (18`` X 25`)				$ 20.65
41	308494		Installation Instructions		Appelez-nous	-
41	310607		Guide, Use & Care		Appelez-nous	-
41	308500		Book, Cooking Guide		Appelez-nous	-
41	242820		Wire (14 Ga. 150 C Black)		Appelez-nous	-
41	328891		Resistor & Terminal Assembly		Appelez-nous	-
41	242828		Wire (12 Ga. 150 C Black)		Appelez-nous	-
41	242821		Wire (14 Ga. 150 C Blue)		Appelez-nous	-
41	242822		Wire (14 Ga. 150 C Brown)		Appelez-nous	-
41	242830		Wire (14 Ga. 200 C Brown)		Appelez-nous	-
41	242823		Wire (14 Ga. 150 C Green)		Appelez-nous	-
41	242824		Wire (14 Ga. 150 C Orange)		Appelez-nous	-
41	242829		Wire, Red 12 Ga. 150~c		Appelez-nous	-
41	242825		Wire (14 Ga. 150 C Red)		Appelez-nous	-
41	242831		Wire (14 Ga. 200 C Red)				$ 342.23
41	242826		Wire, White 14 Ga. 150~c		Appelez-nous	-
41	242827		Wire (14 Ga. 150 C Yellow)		Appelez-nous	-
41	242832		Wire, Yellow 14 Ga. 200~c		Appelez-nous	-
41	DD81-03471A		Paint, Touch-up 1/2 Oz. (avocado)   (Replaces: 72109)				$ 54.25
41	DD81-03944A		Paint, Touch-up 1/2 Oz. (coffee)   (Replaces: 72108)				$ 98.33
41	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 124.07
41	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 44.36
41	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 34.39
41	261888		New Avocado		Appelez-nous	-
41	261886		Coffee		Appelez-nous	-
41	261890		Golden Harvest		Appelez-nous	-
41	285006		Paint, Spray 13 Oz. (black)			Immediately	$ 51.34
41	350942		Primer (white)   (Replaces: 206922)				$ 80.69
41	206925		Leveler (thinner) (2oz.)		Appelez-nous	-
41	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
41	978883		Almond (uncut)		Appelez-nous	-
41	261889		Xnew Avocado (uncut)		Appelez-nous	-
41	261887		Xcoffee (uncut)		Appelez-nous	-
41	261891		Xgolden Harvest (uncut)		Appelez-nous	-
41	799351		Thinner (1 Gal.)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
