SELECT A DIAGRAM

02 - Cook Top


03 - Oven


04 - Section


05 - Door And Drawer


06 - Control Panel , Literature And Optional

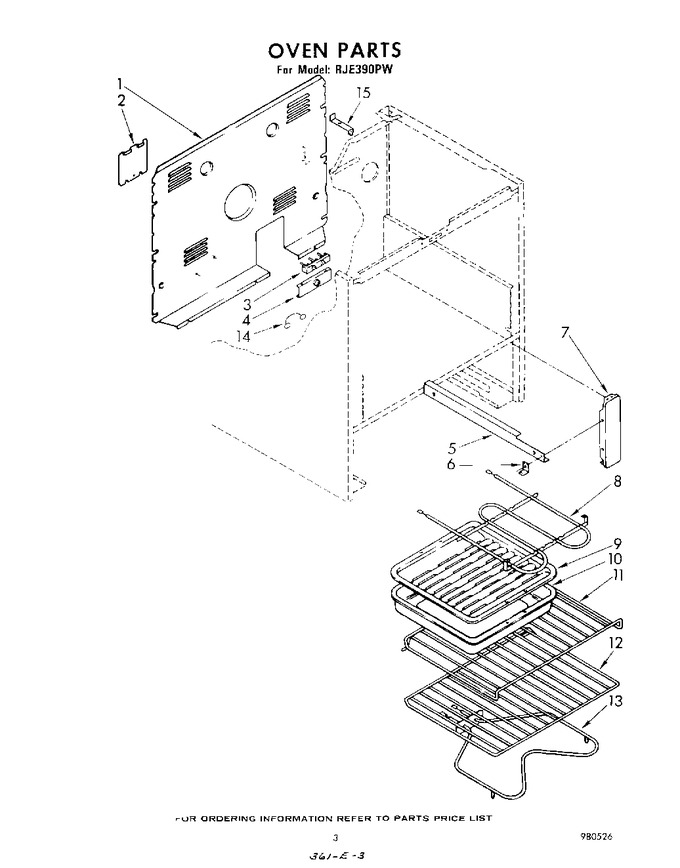

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	307971		Cover, Rear		Appelez-nous	-
1	WP681414		Screw, 10-16 X 1/2 (7)   (Replaces: 343641)			Immediately	$ 7.07
2	WP308544		Screw, 10-24 X 1/2 (2)   (Replaces: 308544)			Immediately	$ 6.98
2	307972		Cover, Access		Appelez-nous	-
3	WP8203546		Block, Terminal   (Replaces: 258076)			Immediately	$ 27.12
3	W10841059		Screw, 10-16 X 3/4 (2)   (Replaces: 98445)		Appelez-nous	-
3	258077		Terminal, 1/4		Appelez-nous	-
3	WP112432		Nut (6)   (Replaces: 112432)				$ 7.16
4	WP681414		Screw, 10-16 X 1/2 (2)   (Replaces: 343641)			Immediately	$ 7.07
4	307970		Bracket, Service		Appelez-nous	-
5	307982		Rail, R.h. (includes Illus. 6)		Appelez-nous	-
5	307983		Rail, L.h. (includes Illus. 6)		Appelez-nous	-
5	WP308685		Screw, 10a X 1/2 (2)   (Replaces: 253549)			Immediately	$ 7.08
6	307979		Glide, Front (2)		Appelez-nous	-
7	307981		Bracket, Mounting (2)		Appelez-nous	-
8	246127		Screw, 10-32 X 5/8 (4)		Appelez-nous	-
8	WP660579		Unit, Broil   (Replaces: 308129)				$ 140.80
9	308674		Rack, Broiler		Appelez-nous	-
10	310973		Pan, Broiler		Appelez-nous	-
11	308172		Rack, Oven (offset)		Appelez-nous	-
12	308173		Rack, Oven		Appelez-nous	-
13	WP308180		Unit, Bake   (Replaces: 308180)				$ 96.92
13	246127		Screw, 10-32 X 5/8 (2)		Appelez-nous	-
14	308498		Ground Strap		Appelez-nous	-
14	WP681414		Screwd, 10-32   (Replaces: 343631)			Immediately	$ 7.07
15	WP681414		Screw, 10-16 X 1/2 (2)   (Replaces: 343641)			Immediately	$ 7.07
15	309102		Bracket, Stand-off (2)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
