SELECT A DIAGRAM

02 - Cook Top

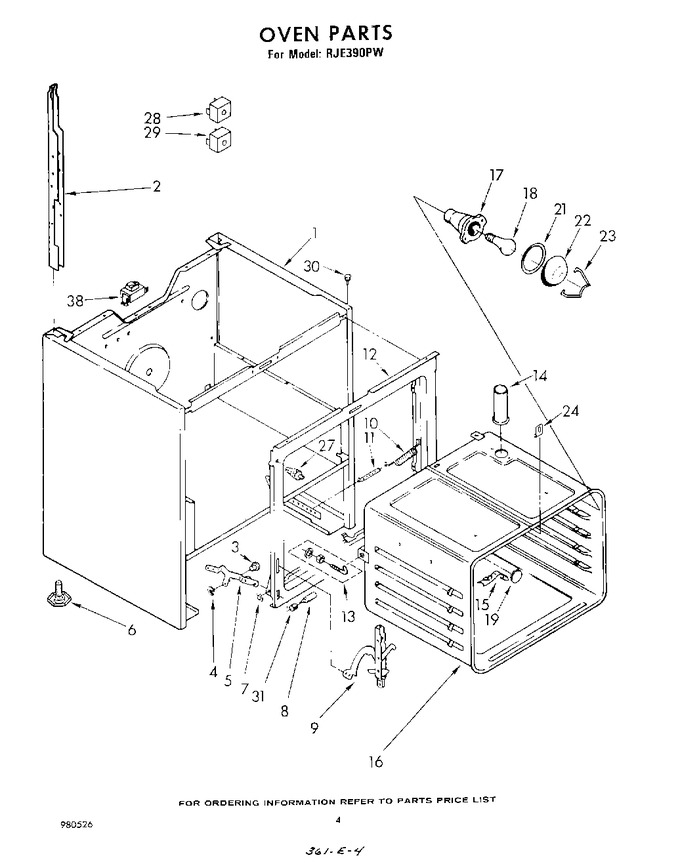

03 - Oven


04 - Section


05 - Door And Drawer


06 - Control Panel , Literature And Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	327873		Main Chassis (coffee)		Appelez-nous	-
1	327875		Main Chassis (almond)		Appelez-nous	-
1	327874		Main Chassis (golden Harvest)		Appelez-nous	-
1	327871		Main Chassis (white)		Appelez-nous	-
1	327872		Main Chassis (new Avocado)		Appelez-nous	-
2	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 7.07
2	309240		Support, R.h. Channel		Appelez-nous	-
2	309241		Support, L.h. Channel		Appelez-nous	-
3	WP307986		Hinge Pin (2)   (Replaces: 307986)				$ 11.78
4	307594		Ring, Retainer (2)		Appelez-nous	-
5	WP681414		Screw, 10-32 Hex (4)   (Replaces: 343631)			Immediately	$ 7.07
5	327890		Hinge (r.h.)		Appelez-nous	-
5	327891		Hinge (l.h.)		Appelez-nous	-
6	WP233550		Leg Leveling (4)   (Replaces: 233550)				$ 7.16
7	308306		Pushnut		Appelez-nous	-
8	307985		Pin, Hinge				$ 29.54
9	327892		Channel, Arm (2)		Appelez-nous	-
10	WP308126		Spring, Oven Door (2)   (Replaces: 308126)				$ 38.15
11	WP308125		Anchor, Spring (2)   (Replaces: 308125)				$ 10.94
12	WP681414		Screw, 10-16 X 1/2 (15)   (Replaces: 343641)			Immediately	$ 7.07
12	327886		Frame, Front		Appelez-nous	-
13	261883		Oven Mounting Kit (2)		Appelez-nous	-
14	WP308685		Screw, 10a X 1/2 (2)   (Replaces: 253549)			Immediately	$ 7.08
14	307961		Vent, Oven		Appelez-nous	-
15	98005642		Clip, Thermobulb (2)   (Replaces: 258139)			Immediately	$ 74.64
16	254230		Screw, 10a X 1/2		Appelez-nous	-
16	328473		Oven		Appelez-nous	-
17	307856		Socket, Lamp (alternate)		Appelez-nous	-
17	308043		Socket, Lamp (screw, 10-12 X 7/8 (2))		Appelez-nous	-
17	310208		Socket, Lamp (alternate)			Immediately	$ 36.34
18	8009		Bulb, Oven Light   (Replaces: 247591)			Immediately	$ 16.80
19	257314		Plug Button		Appelez-nous	-
21	308037		Gasket, Light		Appelez-nous	-
22	308039		Cover, Light		Appelez-nous	-
23	308038		Retainer, Light		Appelez-nous	-
24	307964		Clip, Oven		Appelez-nous	-
27	310345		Switch, Plunger				$ 94.86
28	310643		Switch, Broil		Appelez-nous	-
29	310644		Switch, Bake		Appelez-nous	-
30	238614		Bumper, Cooktop (2)				$ 72.68
31	309111		Snubber, Door (2)		Appelez-nous	-
38	346772		Ballast (alternate)		Appelez-nous	-
38	685591		Ballast (alternate)		Appelez-nous	-
38	WP681414		Ballast (screw, 10-16 X 1/2 (2))   (Replaces: 343641)			Immediately	$ 7.07
