SELECT A DIAGRAM

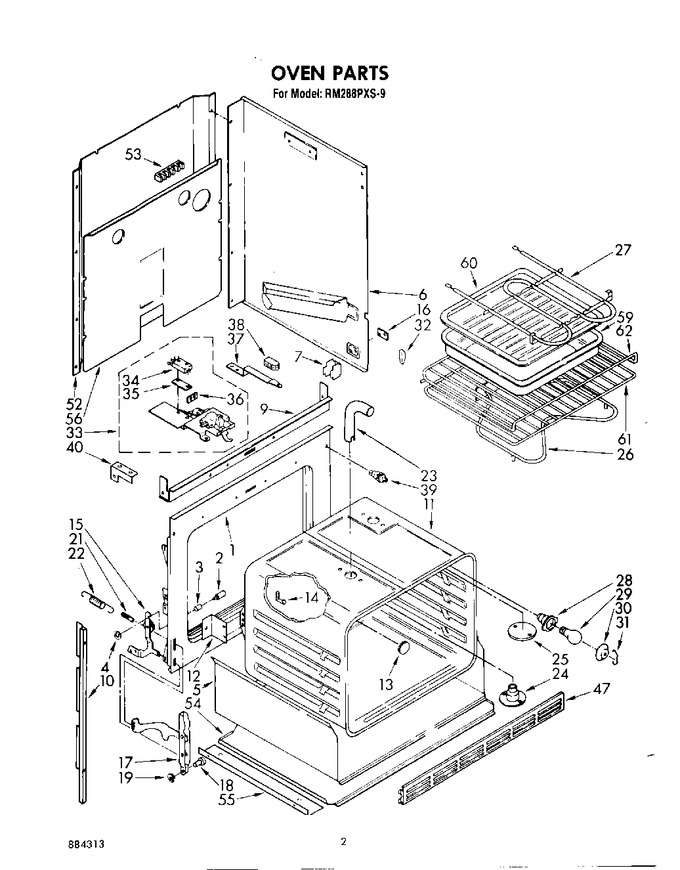

02 - Oven


03 - Cabinet And Airflow


04 - Magnetron And Airflow


05 - Cabinet And Stirrer


06 - Door And Latch


07 - Cabinet And Hinge


08 - Oven Door


09 - Control Component


10 - Wiring Harness


11 - Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	328747		Frame, Front		Appelez-nous	-
2	307985		Pin, Hinge Ear (2)				$ 29.54
3	309111		Snubber, Door (2)		Appelez-nous	-
4	308306		Pushnut (2)		Appelez-nous	-
5	310770		Insulation Tray		Appelez-nous	-
6	311006		Side Wrapper (right Side)		Appelez-nous	-
6	311009		Side Wrapper (left Side)		Appelez-nous	-
6	WP488729		Screw, 8-18 X 1/2 (14)   (Replaces: 313638)			Immediately	$ 7.01
7	311774		Support, Side Wrapper (4)		Appelez-nous	-
7	WP488729		Screw, 8-18 X 1/2 (4)   (Replaces: 313638)			Immediately	$ 7.01
9	WP488729		Screw, 8-18 X 1/2 (4)   (Replaces: 313638)			Immediately	$ 7.01
9	310693		Baffle, Top Insulation		Appelez-nous	-
10	WP488729		Screw, 8-18 X 1/2 (8)   (Replaces: 313638)			Immediately	$ 7.01
10	310689		Side Trim (r.h.)		Appelez-nous	-
10	310685		Side Trim L.h.		Appelez-nous	-
11	328756		Oven (30`` Pyro)		Appelez-nous	-
11	311056		Screw (3)		Appelez-nous	-
12	WP681414		Screw, 10-16 X 1/2 (6)   (Replaces: 343641)			Immediately	$ 7.07
12	310713		Bracket, Oven Mounting (2)		Appelez-nous	-
13	257314		Plug Button		Appelez-nous	-
14	98005642		Clip, Therm Bulb (2)   (Replaces: 313382)			Immediately	$ 74.64
15	328801		Hinge Ear, R.h.		Appelez-nous	-
15	328802		Hinge Ear, L.h.		Appelez-nous	-
16	WP308544		Screw, 10-24 X 1/2 (4)   (Replaces: 308544)			Immediately	$ 6.98
16	310659		Plate, Side Panel (2)		Appelez-nous	-
17	329713		Channel Arm (2)		Appelez-nous	-
18	WP307986		Pin, Hinge (2)   (Replaces: 307986)				$ 11.78
19	307594		Ring, Retainer (2)		Appelez-nous	-
21	WP308125		Anchor, Spring (2)   (Replaces: 308125)				$ 10.94
22	WP308126		Spring, Oven Door (2)   (Replaces: 308126)				$ 38.15
23	312697		Tube, Vent		Appelez-nous	-
24	310839		Eliminator, Smoke		Appelez-nous	-
24	WP488729		Screw, 8-18 X 1/2 (2)   (Replaces: 313638)			Immediately	$ 7.01
24	WP90767		Screw, 8a X 3/8   (Replaces: 90767)			Immediately	$ 7.04
25	WP488729		Screw, 8-18 X 1/2 (2)   (Replaces: 313638)			Immediately	$ 7.01
25	310662		Plate, Cover		Appelez-nous	-
26	WP308180		Unit, Bake (240v) (alt.)   (Replaces: 308180)				$ 96.92
26	WP312309		Unit, Bake (208v)   (Replaces: 312309)				$ 157.54
26	246127		Screw, 10-32 X 5/8 (2)		Appelez-nous	-
26	WP308180		(alt.)   (Replaces: 313827)				$ 96.92
26	WP308180		Unit, Bake (240v)   (Replaces: 661170)				$ 96.92
27	WP660579		(alt.)   (Replaces: 311714)				$ 140.80
27	WP660579		Unit, Broil (240v)   (Replaces: 660579)				$ 140.80
27	WP660579		(alt.)   (Replaces: 311713)				$ 140.80
27	312308		Unit, Broil (208v)		Appelez-nous	-
27	246127		Screw, 10-32 X 5/8 (4)		Appelez-nous	-
28	660556		Socket, Oven Light		Appelez-nous	-
28	308043		Screw, 10-12 X 7/8 (2)		Appelez-nous	-
28	310208		(alt.)			Immediately	$ 36.34
28	307856		(alt.)		Appelez-nous	-
29	8009		Bulb, Oven Light   (Replaces: 311255)			Immediately	$ 16.80
30	308039		Cover, Light		Appelez-nous	-
31	308038		Retainer, Light		Appelez-nous	-
32	311982		Coverplate		Appelez-nous	-
33	311056		Screw (2)		Appelez-nous	-
33	328585		Latch Assembly		Appelez-nous	-
33	WP488729		Screw, 8-18 X 1/2 (2)   (Replaces: 313638)			Immediately	$ 7.01
34	308185		Safety Switch		Appelez-nous	-
34	98106		Screw (2)		Appelez-nous	-
35	309245		Insulator, Switch		Appelez-nous	-
36	313035		Terminal, Shield		Appelez-nous	-
36	309258		Screw, 6 X 3/8b (2)		Appelez-nous	-
37	308422		Screw, 10-24 X 1/2 (2)		Appelez-nous	-
37	310825		Latch, Handle		Appelez-nous	-
38	311253		Knob, Latch Handle		Appelez-nous	-
38	246135		Screw, 8 X 5/16		Appelez-nous	-
39	310345		Switch, Door				$ 94.86
39	WP681414		Screw 10-32 X 1/2   (Replaces: 690989)			Immediately	$ 7.07
40	312320		Shield, Insulation		Appelez-nous	-
40	307748		Screw, 10a X 1/2 (1)		Appelez-nous	-
47	310668		Grill, Bottom				$ 556.11
47	309029		Screw, 8-15 X 1/2 (3)		Appelez-nous	-
52	WP488729		Screw, 8-18 X 1/2 (6)   (Replaces: 313638)			Immediately	$ 7.01
52	310459		Back Panel		Appelez-nous	-
53	WP8203546		Terminal Block   (Replaces: 258076)			Immediately	$ 27.12
53	WP112432		Nut, (3)   (Replaces: 112432)				$ 7.16
53	308043		Screw, 10-12 X 7/8 (2)		Appelez-nous	-
54	310458		Cover, Bottom		Appelez-nous	-
55	WP488729		Screw, 8-18 X 1/2 (4)   (Replaces: 313638)			Immediately	$ 7.01
55	311592		Angle, Support (2)		Appelez-nous	-
56	311012		Cover, Rear		Appelez-nous	-
56	WP488729		Screw, 8-18 X 1/2 (12)   (Replaces: 313638)			Immediately	$ 7.01
59	4396923		Pan, Broiler   (Replaces: 310976)			Immediately	$ 52.04
60	4396923		Grid, Broiler Pan   (Replaces: 258171)			Immediately	$ 52.04
61	308173		Rack, Oven		Appelez-nous	-
62	308172		Rack, Oven (offset)		Appelez-nous	-
