SELECT A DIAGRAM

02 - Oven


03 - Cabinet And Airflow


04 - Magnetron And Airflow

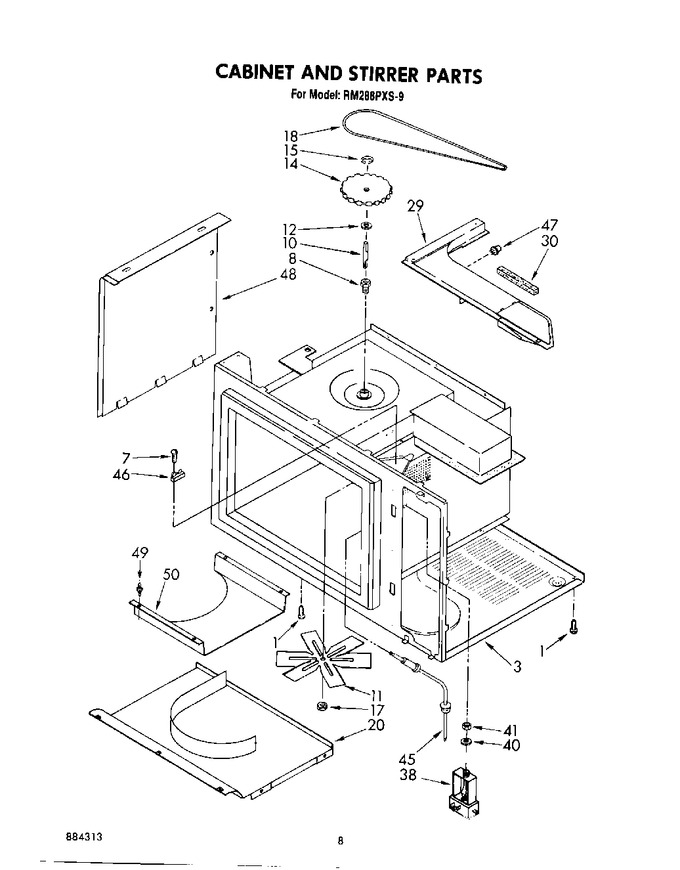

05 - Cabinet And Stirrer


06 - Door And Latch


07 - Cabinet And Hinge


08 - Oven Door


09 - Control Component


10 - Wiring Harness


11 - Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP488729		Screw, 8-18 X 1/2 (6)   (Replaces: 313638)			Immediately	$ 7.01
7	312713		Screw, 8-32 X 3/8		Appelez-nous	-
8	312023		Bushing, Stirrer		Appelez-nous	-
10	312026		Shaft, Stirrer		Appelez-nous	-
11	313595		Stirrer Blade		Appelez-nous	-
12	312025		Washer, Nylon		Appelez-nous	-
14	311923		Pulley, Stirrer Blade		Appelez-nous	-
15	311999		``e`` Ring		Appelez-nous	-
17	WP487939		Nut, Standard Hex 1/4-20   (Replaces: 311721)				$ 6.95
18	WP313646		Belt, Drive   (Replaces: 313646)				$ 76.05
20	313563		Stirrer Cover		Appelez-nous	-
20	313740		Fastener (4)		Appelez-nous	-
29	3147003		Baffle, Air		Appelez-nous	-
30	3147599		Seal, Foam		Appelez-nous	-
38	3147071		Jack, Probe		Appelez-nous	-
40	313105		Washer Probe		Appelez-nous	-
41	313104		Nut		Appelez-nous	-
45	313044		(alt.)		Appelez-nous	-
45	313527		(alt.)		Appelez-nous	-
45	661164		Probe, Temperature		Appelez-nous	-
46	312713		Screw, 8-32 X 3/8		Appelez-nous	-
46	313855		Fuse, Thermal		Appelez-nous	-
47	3147060		Sensor, Gas		Appelez-nous	-
47	313818		Screw (2)		Appelez-nous	-
48	3147004		Cover, Side		Appelez-nous	-
48	313816		Screw, 8-32 X 1/2 (4)		Appelez-nous	-
49	313739		Support (4)		Appelez-nous	-
50	313735		Plate, Tuning		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
