Diagram # Part Number Description Series Availability Ships Price Add to Cart
9 313456 Rivet (3) Appelez-nous -
10 313639 Shelf, Microwave (install With Silastic No. 307576) Appelez-nous -
12 313614 Trim, Shelf (front) Appelez-nous -
13 313615 Trim, Shelf (rear) Appelez-nous -
19 330514 Socket, Complete Appelez-nous -
20 WP3395618 Bulb, Oven Light   (Replaces: 313969) In-Stock Immediately $ 71.33

30 161463 Screw, 10a X 2 (4) Appelez-nous -
30 WP3149478 Support, Shelf (4)   (Replaces: 313653) Special Order $ 8.64

32 313663 Rack, Wire Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

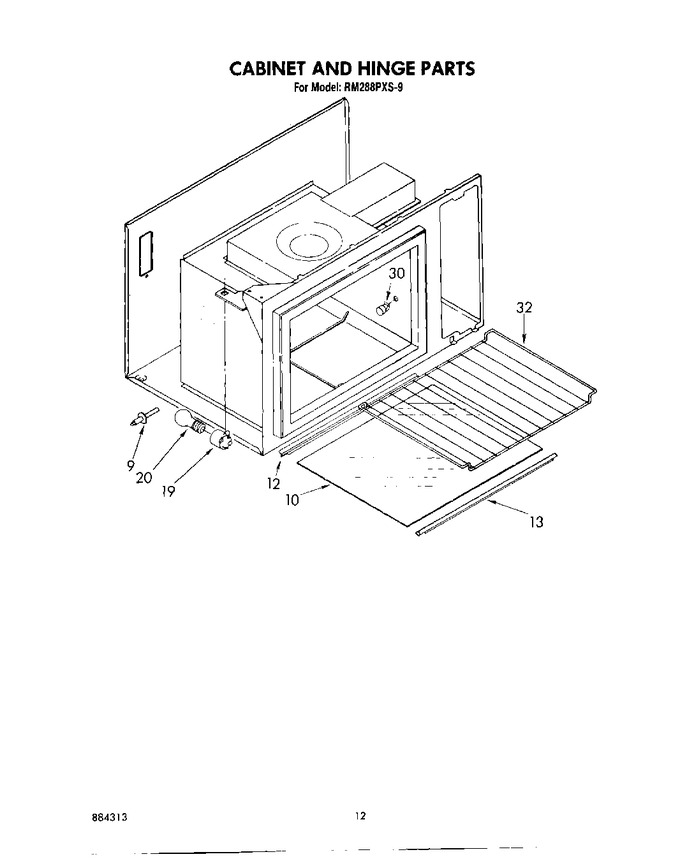

Diagram for RM288PXS9
