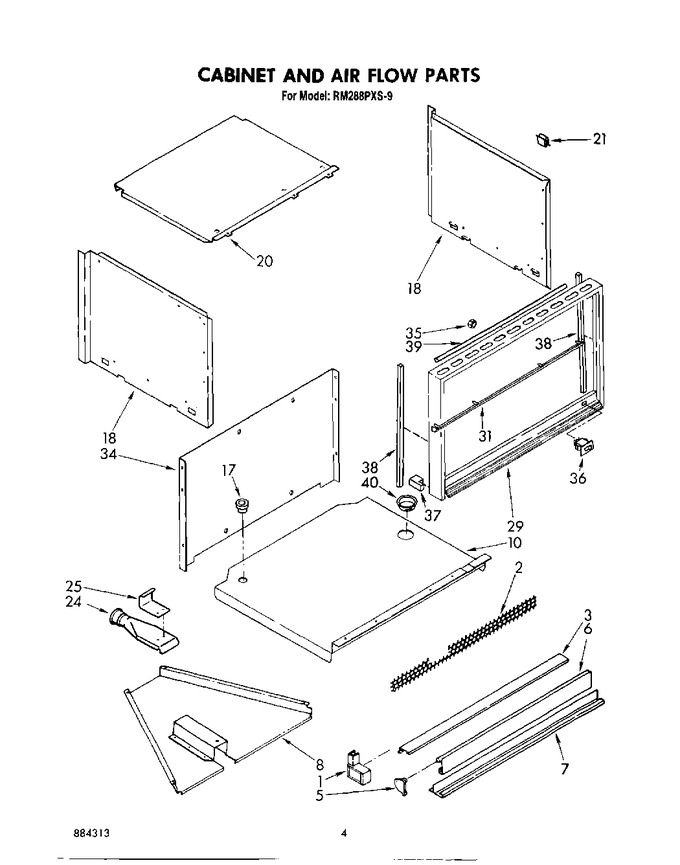

03 - Cabinet And Airflow


04 - Magnetron And Airflow


05 - Cabinet And Stirrer


06 - Door And Latch


07 - Cabinet And Hinge


08 - Oven Door


09 - Control Component


10 - Wiring Harness


11 - Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	342043		Screw (2)		Appelez-nous	-
1	311650		End Cap, R.h.		Appelez-nous	-
1	311649		End Cap, L.h.		Appelez-nous	-
2	312432		Trim, Oven Vent		Appelez-nous	-
3	246131		Screw, 6a X 3/8		Appelez-nous	-
3	312446		Trim, Top		Appelez-nous	-
3	342043		Screw (2)		Appelez-nous	-
5	310833		End Trim, Vent (right Side)		Appelez-nous	-
5	310832		End Trim, Vent (left Side)		Appelez-nous	-
6	312447		Door, Vent		Appelez-nous	-
7	309100		Screw, 10a X 1/2 (2)		Appelez-nous	-
7	311190		Trim, Bottom		Appelez-nous	-
7	342043		Screw (2)		Appelez-nous	-
8	3170178		Box Air		Appelez-nous	-
10	3147494		Support Plate		Appelez-nous	-
10	WP488729		Screw, 8-18 X 1/2 (7)   (Replaces: 313638)			Immediately	$ 7.01
17	309552		Snap Bushing		Appelez-nous	-
18	3147492		Side Panel, R.h.		Appelez-nous	-
18	3147493		Side Panel, L.h.		Appelez-nous	-
20	WP488729		Screw, 8-18 X 1/2 (8)   (Replaces: 313638)			Immediately	$ 7.01
20	3147495		Panel, Top		Appelez-nous	-
21	311311		Clip (2)		Appelez-nous	-
24	312696		Vent Tube		Appelez-nous	-
25	254225		Screw 8bt X 1/4 (2)		Appelez-nous	-
25	312698		Support, Vent Tube		Appelez-nous	-
29	3170093		Frame		Appelez-nous	-
31	314032		Grill, Air		Appelez-nous	-
34	3147491		Cover, Rear		Appelez-nous	-
34	WP488729		Screw, 8-18 X 1/2 (12)   (Replaces: 313638)			Immediately	$ 7.01
35	3147378		Nut (3)		Appelez-nous	-
36	WP4314961		Switch, Rocker   (Replaces: 314134)				$ 80.53
37	3147750		Seal, Foam (2)		Appelez-nous	-
38	3147595		Seal, Foam (2)		Appelez-nous	-
39	3147596		Seal, Foam (2)		Appelez-nous	-
40	3147647		Bushing, Snap		Appelez-nous	-
