Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 3148928 End Cap, L.h. Appelez-nous -
1 342043 Screw (2) Appelez-nous -
1 3148929 End Cap, R.h. Appelez-nous -
2 3187410 Trim, Oven Vent Appelez-nous -
3 342043 Screw (2) Appelez-nous -
3 246131 Screw, 6a X 3/8 (2) Appelez-nous -
3 3148678 Trim, Top Appelez-nous -
4 309552 Snap Bushing Appelez-nous -
5 3148698 End Trim, Vent Door R.h. Appelez-nous -
5 3148697 End Trim, Vent Door L.h. Appelez-nous -
6 3148617 Door, Vent Appelez-nous -
7 WP965173 Screw (2)   (Replaces: 246132) In-Stock Immediately $ 9.65

7 3148618 Trim, Bottom Appelez-nous -
8 3170178 Box Air Appelez-nous -
10 3147494 Support Plate Appelez-nous -
10 WP488729 Screw, 8-18 X 1/2 (7)   (Replaces: 3148107) In-Stock Immediately $ 7.01

11 3147595 Seal, Foam (2) Appelez-nous -
14 3147596 Seal, Foam (2) Appelez-nous -
16 3147750 Seal, Foam (2) Appelez-nous -
17 3147647 Bushing, Snap Appelez-nous -
18 3147492 Side Panel, R.h. Appelez-nous -
18 WP488729 Screw (6)   (Replaces: 3148107) In-Stock Immediately $ 7.01

18 3147493 Side Panel, L.h. Appelez-nous -
20 WP488729 Screw, 8-18 X 1/2 (8)   (Replaces: 3148107) In-Stock Immediately $ 7.01

20 3147499 Panel, Top Appelez-nous -
24 312696 Vent Tube Appelez-nous -
25 312698 Support, Vent Tube Appelez-nous -
25 WP488729 Screw, 8-18 X 1/2   (Replaces: 313638) In-Stock Immediately $ 7.01

25 254225 Screw 8bt X 1/4 (2) Appelez-nous -
26 WP488729 Screw (8)   (Replaces: 3148107) In-Stock Immediately $ 7.01

26 3147498 Panel, Support Appelez-nous -
29 3149798 Frame, Outer Appelez-nous -
34 WP488729 Screw (10)   (Replaces: 3148107) In-Stock Immediately $ 7.01

34 3147491 Cover, Rear Appelez-nous -
35 307748 Screw (2) Appelez-nous -
35 WP4314961 Switch, Rocker   (Replaces: 314134) Special Order $ 80.53

35 312713 Screw (3) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

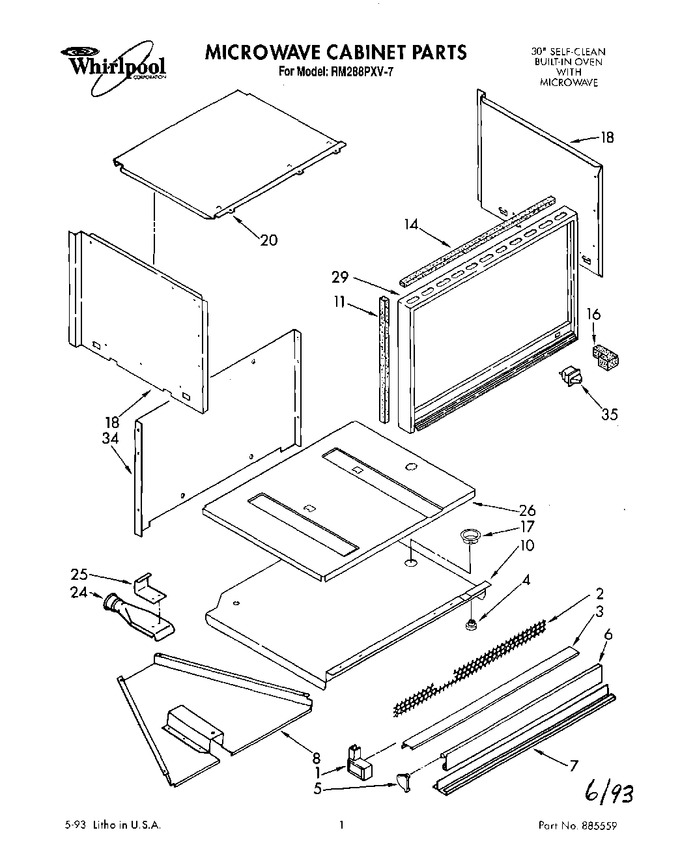

Diagram for RM288PXV7
