SELECT A DIAGRAM

01 - Section


02 - Magnetron And Air Flow


03 - Control Panel


04 - Stirrer Drive, Optional


05 - Microwave Door And Latch


06 - Wiring Harness


07 - Oven, Literature


08 - Oven Door

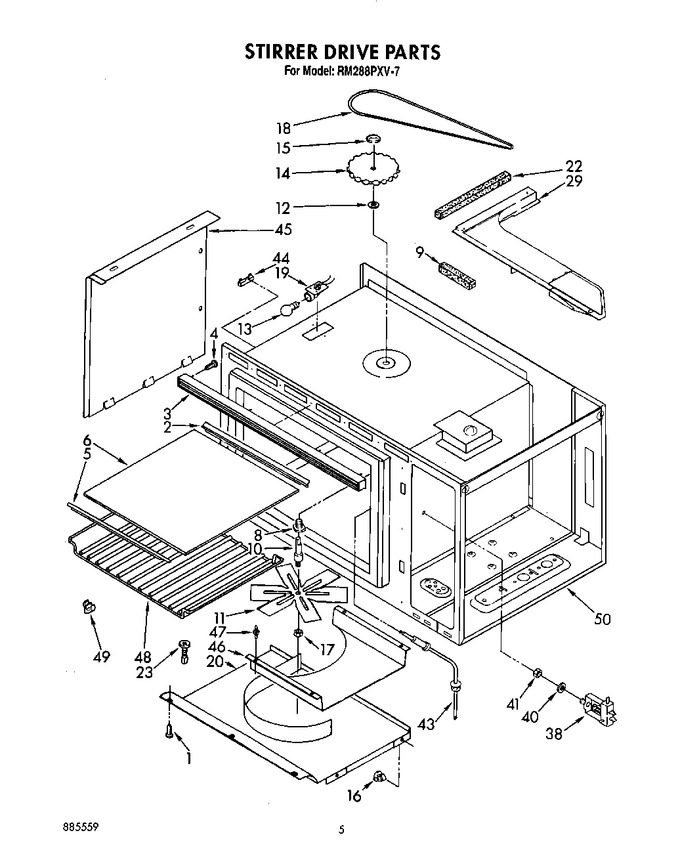

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	313816		Screw, 8-32 X 1/2 (6)		Appelez-nous	-
2	313615		Trim, Shelf (rear)		Appelez-nous	-
3	3149300		Deflector, Air		Appelez-nous	-
4	3150025		Screw (3)		Appelez-nous	-
5	313614		Trim, Shelf (front)		Appelez-nous	-
6	312713		Screw, 8-32 X 3/8		Appelez-nous	-
6	W10841140		Also Order (silastic)   (Replaces: 307576)			Immediately	$ 24.92
6	313639		Shelf, Glass		Appelez-nous	-
8	312023		Bushing, Stirrer		Appelez-nous	-
9	3147599		Seal, Foam		Appelez-nous	-
10	312026		Shaft, Stirrer		Appelez-nous	-
11	313595		Stirrer Blade		Appelez-nous	-
12	312025		Washer, Nylon		Appelez-nous	-
13	WP3395618		Bulb, Oven   (Replaces: 313969)			Immediately	$ 71.33
14	311923		Pulley, Stirrer Blade		Appelez-nous	-
15	311999		``e`` Ring		Appelez-nous	-
16	313740		Fastener (4)		Appelez-nous	-
17	WP487939		Nut, Standard Hex 1/4-20   (Replaces: 311721)				$ 6.95
18	WP313646		Belt, Drive   (Replaces: 313646)				$ 76.05
19	330514		Socket, Light		Appelez-nous	-
20	313816		Screw, 8-32 X 1/2		Appelez-nous	-
20	313563		Stirrer Cover		Appelez-nous	-
22	313753		Seal, Foam		Appelez-nous	-
23	310423		Fastener		Appelez-nous	-
29	3147003		Baffle, Air		Appelez-nous	-
38	661209		Probe Jack		Appelez-nous	-
40	313105		Washer Probe		Appelez-nous	-
41	313104		Nut		Appelez-nous	-
43	313527		Probe, Temperature		Appelez-nous	-
44	313855		Fuse, Thermal		Appelez-nous	-
44	312713		Screw		Appelez-nous	-
45	WP488729		Screw (4)   (Replaces: 313638)			Immediately	$ 7.01
45	3147004		Cover, Side		Appelez-nous	-
46	313735		Plate, Tuning		Appelez-nous	-
47	313739		Support (4)		Appelez-nous	-
48	313663		Rack, Wire		Appelez-nous	-
49	WP3149478		Support Rack   (Replaces: 313653)				$ 8.64
50	3171507		Mounting Hardware		Appelez-nous	-
50	261582		Grease		Appelez-nous	-
50	W10841140		Sealer, Silastic (3 Oz.)   (Replaces: 307576)			Immediately	$ 24.92
50	591014		Adhesive Loctite (1/3 Oz.)		Appelez-nous	-
50	WP75614		Line, Splice (5)   (Replaces: 309551)				$ 44.41
50	799832		Kit. Porcelain Repair (white)		Appelez-nous	-
50	242820		Wire (14 Ga. 150 C Black)		Appelez-nous	-
50	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 16.12
50	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
50	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
50	350956		Paint, Spray 13 Oz. (almond)				$ 46.30
50	3171640		Cavity		Appelez-nous	-
50	242828		Wire (12 Ga. 150 C Black)		Appelez-nous	-
50	242821		Wire (14 Ga. 150 C Blue)		Appelez-nous	-
50	242822		Wire (14 Ga. 150 C Brown)		Appelez-nous	-
50	242830		Wire (14 Ga. 200 C Brown)		Appelez-nous	-
50	242823		Wire (14 Ga. 150 C Green)		Appelez-nous	-
50	242824		Wire (14 Ga. 150 C Orange)		Appelez-nous	-
50	242829		Wire, Red 12 Ga. 150~c		Appelez-nous	-
50	242825		Wire (14 Ga. 150 C Red)		Appelez-nous	-
50	242831		Wire (14 Ga. 200 C Red)				$ 342.23
50	242826		Wire, White 14 Ga. 150~c		Appelez-nous	-
50	242827		Wire (14 Ga. 150 C Yellow)		Appelez-nous	-
50	242832		Wire, Yellow 14 Ga. 200~c		Appelez-nous	-
50	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 124.07
50	WP261869		Citrine White (microwave)   (Replaces: 261869)				$ 23.85
50	254323		Touch-up, Oven		Appelez-nous	-
50	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 44.36
50	350942		Primer (white)   (Replaces: 206922)				$ 80.69
50	206925		Leveler, Enamel		Appelez-nous	-
50	261890		Harvest Gold		Appelez-nous	-
50	285006		Enamel, Black   (Replaces: 799339)			Immediately	$ 51.34
50	350930		White   (Replaces: 799343)			Immediately	$ 34.39
50	261900		Citrine White (5 Oz.)				$ 51.34
50	799340		Enamel, Black (1 Qt. Uncut)		Appelez-nous	-
50	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
50	261891		Harvest Gold		Appelez-nous	-
50	978883		Almond		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
