SELECT A DIAGRAM

01 - Section


02 - Magnetron And Air Flow

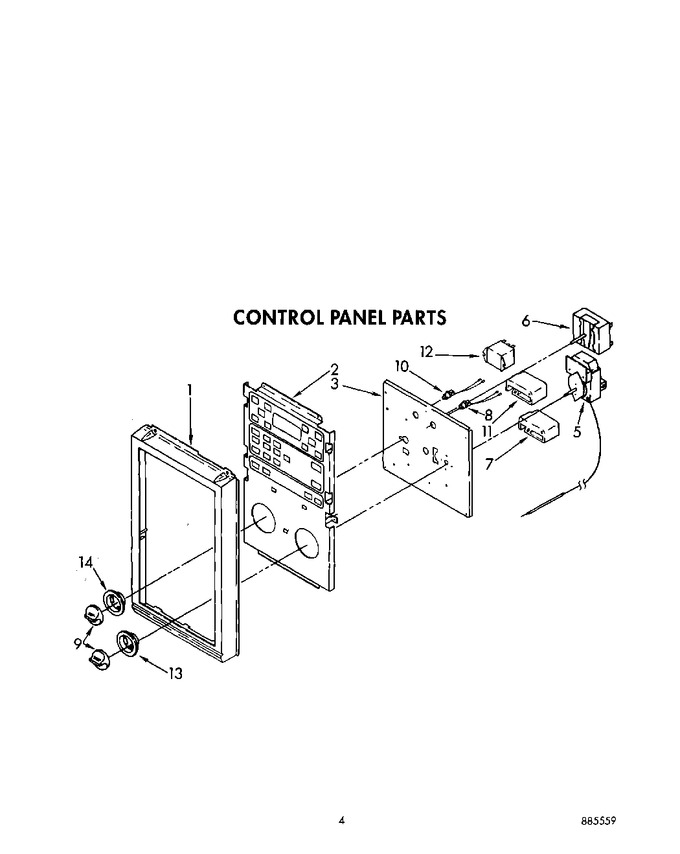

03 - Control Panel


04 - Stirrer Drive, Optional


05 - Microwave Door And Latch


06 - Wiring Harness


07 - Oven, Literature


08 - Oven Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3182412		Frame, Control Panel		Appelez-nous	-
2	3148272		Module, Control		Appelez-nous	-
2	313818		Screw, 8-32 X 3/16 (6)		Appelez-nous	-
3	313818		Screw, 8-32 X 3/16 (4)		Appelez-nous	-
3	3147282		Bracket, Control (mounting)		Appelez-nous	-
5	WP313808		Screw, 6-32 X 1/4 (2)   (Replaces: 311932)				$ 6.84
5	3148931		Thermostat		Appelez-nous	-
6	308119		Screw, 8-32 X 3/16 (2)		Appelez-nous	-
6	661452		Switch, Selector		Appelez-nous	-
7	314215		Screw, No.6		Appelez-nous	-
7	314210		Switch, Bake (4)		Appelez-nous	-
8	3147517		Light, Indicator (4)		Appelez-nous	-
9	WP3150371		Knob, Control (2)   (Replaces: 3150371)				$ 19.40
10	3149034		Light, Indicator		Appelez-nous	-
11	314209		Switch, Broil		Appelez-nous	-
11	314215		Screw, No.6		Appelez-nous	-
12	246131		Screw, 6ab X 3/8 (2)		Appelez-nous	-
12	314125		Relay, Power		Appelez-nous	-
13	311073		Escutcheon, Thermostat		Appelez-nous	-
13	254225		Screw, 8bt X 1/4		Appelez-nous	-
14	254225		Screw, 8bt X 1/4		Appelez-nous	-
14	WP311068		Escutcheon, Selector   (Replaces: 311068)				$ 49.73

    View Diagram in Separate Window       Print Part List
