SELECT A DIAGRAM

01 - Section


02 - Magnetron And Air Flow


03 - Control Panel


04 - Stirrer Drive, Optional

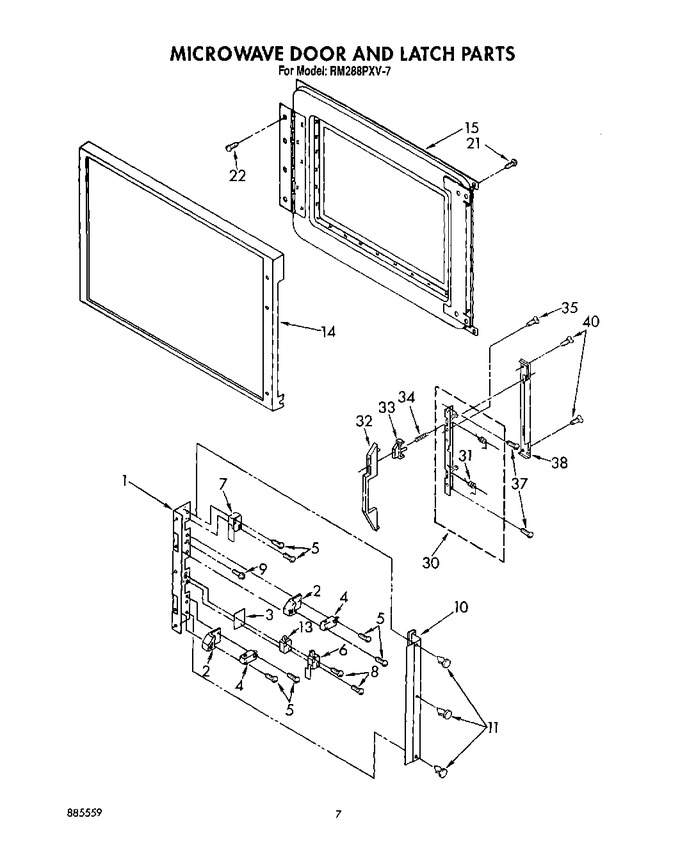

05 - Microwave Door And Latch


06 - Wiring Harness


07 - Oven, Literature


08 - Oven Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	312713		Screw, 8-32 X 3/8		Appelez-nous	-
1	311354		Bracket, Catch		Appelez-nous	-
2	311795		Catch (2)		Appelez-nous	-
3	313126		Insulator		Appelez-nous	-
4	814037		Switch, Primary & Secondary Interlock (2)   (Replaces: 661146)				$ 81.32
5	312717		Screw, 4-40 X 3/4 Pan Head Thread Form (6)		Appelez-nous	-
6	661145		Switch, Light/ Monitor		Appelez-nous	-
7	313120		Switch, Door		Appelez-nous	-
8	310211		Screw, 4-40 X 10 (2)		Appelez-nous	-
9	309080		Screw, 8-32 X 3/8 Slot Hex Washer Head Self-tapping (ground)		Appelez-nous	-
10	311360		Shield		Appelez-nous	-
11	313740		Fastener		Appelez-nous	-
13	661144		Switch, Miniature		Appelez-nous	-
14	3171819		Frame, Door		Appelez-nous	-
15	3171012		Door, Inner		Appelez-nous	-
21	313823		Screw (2)		Appelez-nous	-
22	WPW10068250		Screw (2)   (Replaces: 311777)				$ 3.66
30	329066		Latch Assembly		Appelez-nous	-
31	311352		Spring, Torsion (2)		Appelez-nous	-
32	314169		Handle, Door		Appelez-nous	-
33	3149637		Button, Door Handle		Appelez-nous	-
34	310197		Spring, Compression		Appelez-nous	-
35	303776		Screw, 8-22 Fillister Head Thead Form   (Replaces: 313811)		Appelez-nous	-
37	313820		Screw, 8-32 X 7/16 Hex Washer Head Thread Form (3)		Appelez-nous	-
38	3148297		End Cap		Appelez-nous	-
40	313823		Screw, 8-22 Thread Form Truss Head (4)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
