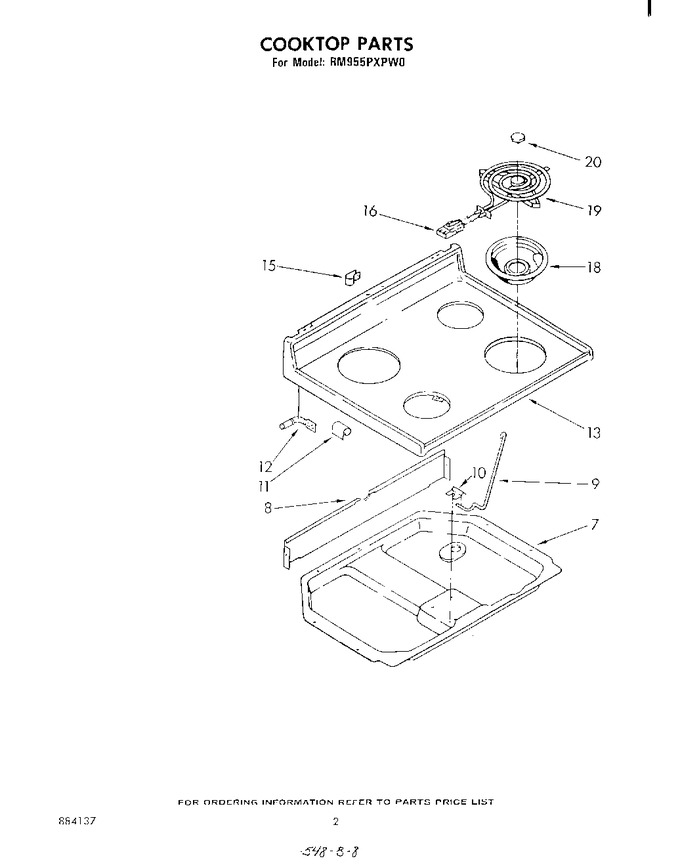

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 7 | WP3390631 | Screw, 10a X 3/8 (4) (Replaces: 309112) |
|
$ 7.04 | |||||
| 7 | 307929 | Burner Box |
|
- | |||||
| 8 | 307973 | Shield, Wiring |
|
- | |||||
| 8 | WP681414 | Screw, 10-16 X 1/2 (4) (Replaces: 343641) |
|
Immediately | $ 7.07 | ||||
| 9 | 307968 | Rod, Cooktop |
|
- | |||||
| 10 | 307967 | Retainer, Cooktop |
|
- | |||||
| 10 | WP3390631 | Screw, 10a X 3/8 (Replaces: 309112) |
|
$ 7.04 | |||||
| 11 | WP681414 | Screw, 10-16 X 1/2 (4) (Replaces: 343641) |
|
Immediately | $ 7.07 | ||||
| 11 | 307965 | Bracket, Cooktop (2) |
|
- | |||||
| 12 | 307966 | Pin, Cooktop (2) |
|
- | |||||
| 12 | WP681414 | Screw, 10-16 X 1/2 (4) (Replaces: 343641) |
|
Immediately | $ 7.07 | ||||
| 13 | 307866 | Cooktop (white) |
|
- | |||||
| 13 | 307871 | Cooktop (almond) |
|
- | |||||
| 13 | 307863 | Cooktop (harvest Gold) |
|
- | |||||
| 13 | WP681414 | Cooktop (screw, 10-32 X 1/2 (2)) (Replaces: 690989) |
|
Immediately | $ 7.07 | ||||
| 13 | 313166 | Cooktop (platinum) |
|
- | |||||
| 13 | 313165 | Cooktop (toast) |
|
- | |||||
| 15 | WP965173 | Screw, 8a X 3/8 (Replaces: 246132) |
|
Immediately | $ 9.65 | ||||
| 15 | WP308605 | Strain Relief (Replaces: 308604) |
|
$ 10.08 | |||||
| 16 | WP313808 | Screw 6-32 X 1/4 (4) (Replaces: 311932) |
|
$ 6.84 | |||||
| 16 | 330031 | Receptacle Clip (4) (Replaces: 258858) |
|
Immediately | $ 14.48 | ||||
| 18 | WPW10196406 | Reflector Pan (6`` (2)) (Replaces: 308539) |
|
Immediately | $ 12.05 | ||||
| 18 | W10196405RW | Reflector Pan (8`` (2)) (Replaces: 308540) |
|
Immediately | $ 18.70 | ||||
| 19 | WP660533 | Unit, Surface 8`` R.f. & L.r. (includes Illus. 20) (Replaces: 312560) |
|
Immediately | $ 39.47 | ||||
| 19 | WPY04100165 | Unit, Surface 6`` L.f. & R.r. (Replaces: 312557) |
|
Immediately | $ 50.62 | ||||
| 20 | 309195 | Medallion (4) |
|
- |
