SELECT A DIAGRAM

02 - Cooktop


03 - Control Panel


04 - Oven


05 - Door And Drawer


06 - Section


07 - Upper Chassis And Component


08 - Magnetron And Airflow


09 - Cabinet And Stirrer


10 - Door And Latch


11 - Wiring Harness , Literature And Optional


12 - Section


13 - Cabinet And Hinge

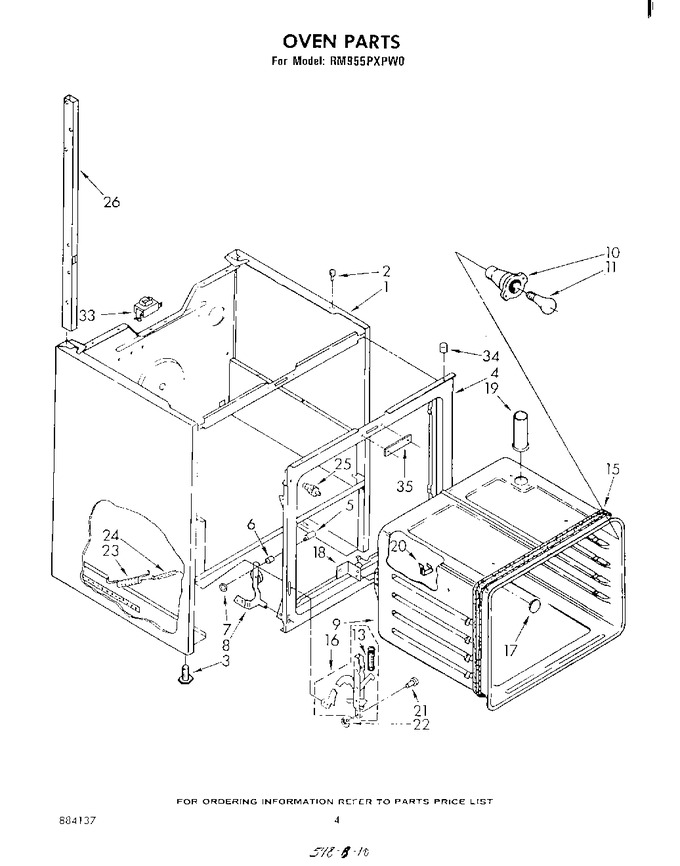

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	330092		Main Chassis (platinum)		Appelez-nous	-
1	330091		Main Chassis (toast)		Appelez-nous	-
1	WP681414		Main Chassis (screw 10-32 X 1/2 (2))   (Replaces: 690989)			Immediately	$ 7.07
1	330086		Main Chassis (white)		Appelez-nous	-
1	330090		Main Chassis (almond)		Appelez-nous	-
1	330089		Main Chassis (harvest Gold)		Appelez-nous	-
1	WP681414		Main Chassis (screw, 10-16 X 1/2 (2))   (Replaces: 343641)			Immediately	$ 7.07
2	238614		Bumper, Cooktop (2)				$ 72.68
3	WPW10058460		Leg Leveling (4)   (Replaces: 312701)			Immediately	$ 7.07
4	WP681414		Screw, 10-16 X 1/2 (13)   (Replaces: 343641)			Immediately	$ 7.07
4	330166		Frame, Front		Appelez-nous	-
5	307985		Pin, Hinge (2)				$ 29.54
6	309111		Snubber, Door (2)		Appelez-nous	-
7	308306		Pushnut (2)		Appelez-nous	-
8	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 7.07
8	327890		Hinge (r.h.)		Appelez-nous	-
8	327891		Hinge (l.h.)		Appelez-nous	-
9	329001		Oven (30`` Continuous Clean)		Appelez-nous	-
9	311056		Screw (3)		Appelez-nous	-
10	307856		Socket, Lamp (alt.)		Appelez-nous	-
10	310208		Socket, Lamp (alt.)			Immediately	$ 36.34
10	660556		Socket, Lamp		Appelez-nous	-
11	8009		Bulb, Oven Light   (Replaces: 311255)			Immediately	$ 16.80
13	308207		Spring, Door Stop		Appelez-nous	-
15	309107		Seal, Oven				$ 63.50
16	329712		Channel, Arm (2)		Appelez-nous	-
17	257314		Plug Button		Appelez-nous	-
18	311220		Bracket, Oven (mounting)		Appelez-nous	-
18	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 7.07
19	307960		Vent, Oven		Appelez-nous	-
19	307748		Screw, 10a X 1/2 (2)		Appelez-nous	-
20	98005642		Clip, Therm Bulb (2)   (Replaces: 313382)			Immediately	$ 74.64
21	WP307986		Hinge Pin (2)   (Replaces: 307986)				$ 11.78
22	307594		Ring, Retainer (2)		Appelez-nous	-
23	308127		Spring, Oven Door (2)				$ 11.75
24	WP308125		Anchor, Spring (2)   (Replaces: 308125)				$ 10.94
25	310345		Switch, Door				$ 94.86
26	313329		Support, Tubing L.h.		Appelez-nous	-
26	313327		Support, Tubing R.h.		Appelez-nous	-
33	685591		Ballast (alt.)		Appelez-nous	-
33	660001		Ballast		Appelez-nous	-
33	346772		Ballast (alt.)		Appelez-nous	-
34	310210		Screw, 8-32 X 5/16 (2)		Appelez-nous	-
34	311909		Locator, Cooktop (2)		Appelez-nous	-
35	310952		Plate Cover		Appelez-nous	-
35	WP313808		Screw, 6-32 X 1/4 (2)   (Replaces: 311932)				$ 6.84
	WP681414		Screw, 10-16 X 1/2 (2)   (Replaces: 343641)			Immediately	$ 7.07
	308043		Screw, 10-12 X 7/8 (2)		Appelez-nous	-
