SELECT A DIAGRAM

02 - Cooktop


03 - Control Panel


04 - Oven


05 - Door And Drawer


06 - Section


07 - Upper Chassis And Component


08 - Magnetron And Airflow


09 - Cabinet And Stirrer


10 - Door And Latch

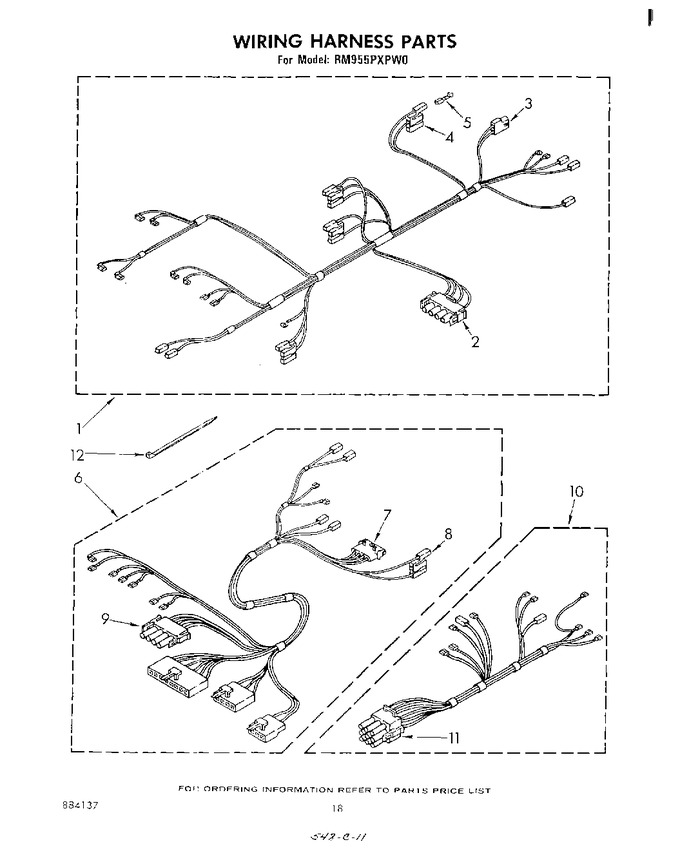

11 - Wiring Harness , Literature And Optional


12 - Section


13 - Cabinet And Hinge


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	313414		Harness, Wiring (main)		Appelez-nous	-
1	246135		Screw, 8d X 5/16		Appelez-nous	-
2	310958		Block, Disconnect		Appelez-nous	-
3	717252		Block, Disconnect		Appelez-nous	-
4	310241		Housing		Appelez-nous	-
5	WP248562		Terminals   (Replaces: 248562)				$ 6.95
6	313432		Harness, Wiring (control)		Appelez-nous	-
7	310960		Block, Disconnect (female)		Appelez-nous	-
8	353425		Block, Disconnect		Appelez-nous	-
9	310957		Block, Disconnect		Appelez-nous	-
10	313436		Harness, Selector Thermostat		Appelez-nous	-
11	309406		Block, Disconnect		Appelez-nous	-
12	310878		Rack, Meat (micro)		Appelez-nous	-
12	350956		Paint, Spray 13 Oz. (almond)				$ 46.30
12	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
12	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
12	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 16.12
12	261582		Grease		Appelez-nous	-
12	WP482338		Sealer, Silastic (3 Oz.)   (Replaces: 482338)			Immediately	$ 57.16
12	591014		Adhesive Loctite (1/3 Oz.)		Appelez-nous	-
12	WP75614		Line, Splice (5)   (Replaces: 309551)				$ 44.41
12	799832		Kit. Porcelain Repair (white)		Appelez-nous	-
12	242985		Rotisserie Kit (rck 81)		Appelez-nous	-
12	242820		Wire (14 Ga. 150 C Black)		Appelez-nous	-
12	307677		Browning Tray (micro)		Appelez-nous	-
12	WPW10339879		Cable Tie (3)   (Replaces: 309330)				$ 7.11
12	242828		Wire (12 Ga. 150 C Black)		Appelez-nous	-
12	242821		Wire (14 Ga. 150 C Blue)		Appelez-nous	-
12	242822		Wire (14 Ga. 150 C Brown)		Appelez-nous	-
12	242830		Wire (14 Ga. 200 C Brown)		Appelez-nous	-
12	242823		Wire (14 Ga. 150 C Green)		Appelez-nous	-
12	242824		Wire (14 Ga. 150 C Orange)		Appelez-nous	-
12	242829		Wire, Red 12 Ga. 150~c		Appelez-nous	-
12	242825		Wire (14 Ga. 150 C Red)		Appelez-nous	-
12	242831		Wire (14 Ga. 200 C Red)				$ 342.23
12	242826		Wire, White 14 Ga. 150~c		Appelez-nous	-
12	242827		Wire (14 Ga. 150 C Yellow)		Appelez-nous	-
12	242832		Wire, Yellow 14 Ga. 200~c		Appelez-nous	-
12	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 124.07
12	72112		Paint, (touch-up 1/2 Oz.) (toast)		Appelez-nous	-
12	DD81-03496A		Paint, Touch-up 1/2 Oz. (platinum)   (Replaces: 72113)				$ 105.40
12	WP261869		Citrine White (microwave)   (Replaces: 261869)				$ 23.85
12	254323		Touch-up, Oven		Appelez-nous	-
12	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 44.36
12	350942		Primer (white)   (Replaces: 206922)				$ 80.69
12	206925		Leveler, Enamel		Appelez-nous	-
12	261890		Harvest Gold		Appelez-nous	-
12	285006		Enamel, Black   (Replaces: 799339)			Immediately	$ 51.34
12	350930		White   (Replaces: 799343)			Immediately	$ 34.39
12	285365		Toast		Appelez-nous	-
12	285366		Paint, Spray (13 Oz.) (platinum)		Appelez-nous	-
12	261900		Citrine White (5 Oz.)				$ 51.34
12	799340		Enamel, Black (1 Qt. Uncut)		Appelez-nous	-
12	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
12	261891		Harvest Gold		Appelez-nous	-
12	978883		Almond		Appelez-nous	-
12	285367		Enamal, Toast (1 Qt. Uncut)		Appelez-nous	-
12	285368		Platinum (uncut)		Appelez-nous	-
12	WPW10208653		Insulation, Fiberglass (1-1/2`` X 24`` X 120``)   (Replaces: 261514)			Immediately	$ 49.92
12	WPW10208653		Insulation, Fiberglass (2-1/2`` X 22`` X 120``)   (Replaces: 240132)			Immediately	$ 49.92
	LIT312876		Use & Care Guide		Appelez-nous	-
	LIT313480		Installation Instructions		Appelez-nous	-
	LIT313353		Tech Sheet		Appelez-nous	-
	LIT884137		List, Repair Parts		Appelez-nous	-
	LIT313358		Book, Cooking Guide		Appelez-nous	-
	LIT311892		Cookbook		Appelez-nous	-
	LIT312879		Use & Care Guide (microwave)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
