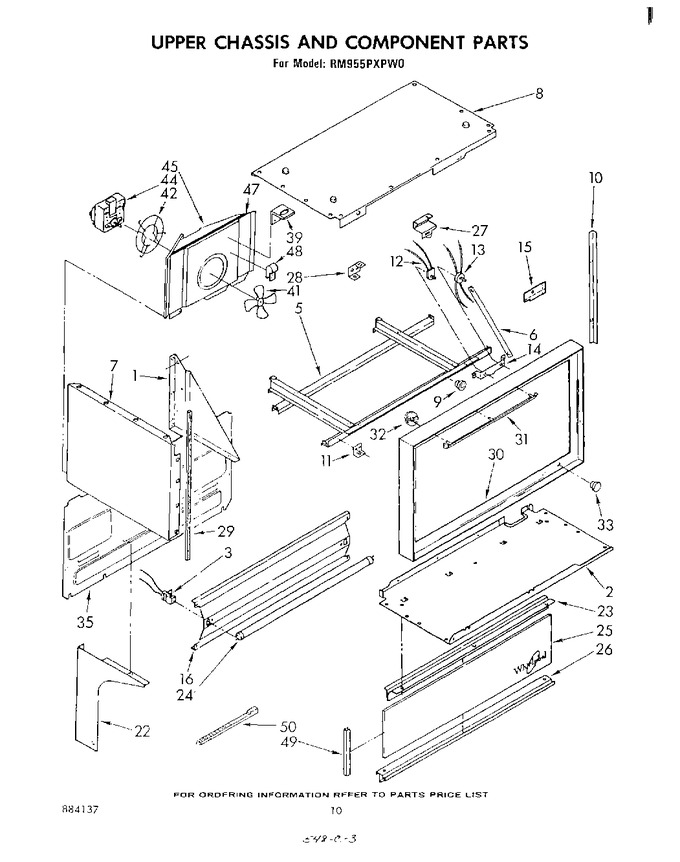

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	312810		Gusset, R.h.		Appelez-nous	-
1	312812		Gusset, L.h.		Appelez-nous	-
1	WP681414		Screw, 10-16 X 1/2 (6)   (Replaces: 343641)			Immediately	$ 7.07
2	313331		Panel, Bottom		Appelez-nous	-
2	WP681414		Screw, 10-16 X 1/2 (2)   (Replaces: 343641)			Immediately	$ 7.07
2	312783		Bumper (4)		Appelez-nous	-
3	WP965173		Screw, 8a X 3/8 (2)   (Replaces: 246132)			Immediately	$ 9.65
3	313469		Socket Assembly R.h.		Appelez-nous	-
3	313468		Socket Assembly L.h.		Appelez-nous	-
5	328397		Support, Frame		Appelez-nous	-
5	258857		Screw, 10-32 X 1/2 (2)		Appelez-nous	-
5	WP681414		Screw, 10-16 X 1/2 (10)   (Replaces: 343641)			Immediately	$ 7.07
6	311933		Strap, Support (2)		Appelez-nous	-
6	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 7.07
7	313164		Side Panel L.h. (platinum)		Appelez-nous	-
7	312261		Side Panel L.h. (white)		Appelez-nous	-
7	312264		Side Panel L.h. (harvest Gold)		Appelez-nous	-
7	WP681414		Side Panel L.h. (screw 10-61 X 1/2 (6))   (Replaces: 343641)			Immediately	$ 7.07
7	WP488627		Side Panel L.h. (screw, 8a X 1/2 (2) Side Panel R.h.)   (Replaces: 338156)				$ 6.81
7	312265		Side Panel L.h. (almond)		Appelez-nous	-
7	313163		Side Panel L.h. (toast)		Appelez-nous	-
7	313162		Side Panel L.h. (platinum)		Appelez-nous	-
7	312272		Side Panel L.h. (almond)		Appelez-nous	-
7	313161		Side Panel L.h. (toast)		Appelez-nous	-
7	312271		Side Panel L.h. (harvest Gold)		Appelez-nous	-
7	312268		Side Panel L.h. (white)		Appelez-nous	-
8	WP965173		Top Panel (screw, 8a X 3/8 (8))   (Replaces: 246132)			Immediately	$ 9.65
8	308297		Top Panel (seal, Foam)		Appelez-nous	-
8	312281		Top Panel (platinum)		Appelez-nous	-
8	312280		Top Panel (toast)		Appelez-nous	-
8	312279		Top Panel (almond)		Appelez-nous	-
8	312278		Top Panel (harvest Gold)		Appelez-nous	-
8	312275		Top Panel (white)		Appelez-nous	-
9	309552		Bushing		Appelez-nous	-
10	WP965173		Screw, 8a X 3/8 (2)   (Replaces: 246132)			Immediately	$ 9.65
10	309629		Angle, Side Panel R.h.		Appelez-nous	-
11	309454		Bracket, Frame Mounting (3)		Appelez-nous	-
11	WP681414		Screw, 10-16 X 1/2 (6)   (Replaces: 343641)			Immediately	$ 7.07
12	313484		Push, Switch		Appelez-nous	-
13	313483		Switch, Fluorescent Light		Appelez-nous	-
14	309455		Bracket, Switch Mounting		Appelez-nous	-
14	WP681414		Screw, 10-16 X 1/2 (2)   (Replaces: 343641)			Immediately	$ 7.07
15	313741		Barrier		Appelez-nous	-
16	313577		Panel, Backguard		Appelez-nous	-
16	246134		Screw, 10a X 1/2 (4)		Appelez-nous	-
22	330201		End Trim R.h. (platinum)		Appelez-nous	-
22	330203		End Trim R.h. (almond)		Appelez-nous	-
22	WP681414		End Trim R.h. (screw, 10-16 X 1/2 (4))   (Replaces: 343641)			Immediately	$ 7.07
22	330194		End Trim R.h. (white)		Appelez-nous	-
22	330198		End Trim R.h. (harvest Gold)		Appelez-nous	-
22	330197		End Trim R.h. (almond)		Appelez-nous	-
22	330196		End Trim R.h. (toast)		Appelez-nous	-
22	330195		End Trim R.h. (platinum End Trim L.h.)		Appelez-nous	-
22	330200		End Trim R.h. (white)		Appelez-nous	-
22	330204		End Trim R.h. (harvest Gold)		Appelez-nous	-
22	308043		End Trim R.h. (screw, 10-12 X 7/8 (4))		Appelez-nous	-
22	330202		End Trim R.h. (toast)		Appelez-nous	-
23	WP488627		Screw, 8a X 1/2 (3)   (Replaces: 338156)				$ 6.81
23	313320		Trim, Glass (top)		Appelez-nous	-
24	WP95292		Lamp, Fluorescent   (Replaces: 95292)			Immediately	$ 121.45
25	313322		Panel, Glass		Appelez-nous	-
26	WP965173		Screw, 8a X 3/8 (2)   (Replaces: 246132)			Immediately	$ 9.65
26	313321		Trim, Glass (bottom)		Appelez-nous	-
27	311953		Bracket, Control Panel Mounting		Appelez-nous	-
28	WP681414		Screw, 10-16 X 1/2 (5)   (Replaces: 343641)			Immediately	$ 7.07
28	312237		Bracket, Chassis Mounting		Appelez-nous	-
29	WP339956		Seal   (Replaces: 339956)			Immediately	$ 7.77
30	312599		Frame, Outer		Appelez-nous	-
30	246135		Screw, 8d X 5/6		Appelez-nous	-
30	WP488627		Screw, 8a X 1/2 (6)   (Replaces: 338156)				$ 6.81
31	309499		Deflector, Air		Appelez-nous	-
32	WP90296		Clip (3)   (Replaces: 90296)				$ 7.07
33	313030		Bezel, Switch (2)		Appelez-nous	-
35	308112		Cover, Rear		Appelez-nous	-
35	WP681414		Screw, 10-16 X 1/2 (7)   (Replaces: 343641)			Immediately	$ 7.07
39	254217		Screw, 10a X 3/8 (4)		Appelez-nous	-
39	308839		Bracket, Receptacle (2)		Appelez-nous	-
41	307535		Blade, Fan		Appelez-nous	-
41	307602		Nut, Hex 6-32 (2)		Appelez-nous	-
42	247326		Screw, 10-24 X 1/2 (3)		Appelez-nous	-
42	310420		Mount, Fan Motor		Appelez-nous	-
44	WP681414		Screw, 10-16 X 1/2 (2)   (Replaces: 343641)			Immediately	$ 7.07
44	312389		Motor		Appelez-nous	-
44	W11693756		Screw 8a-15 X 5/8   (Replaces: 258665)			Immediately	$ 12.65
45	312340		Bracket, Fan		Appelez-nous	-
47	WP339956		Seal, Air Duct   (Replaces: 339956)			Immediately	$ 7.77
48	WP488366		Strain Relief   (Replaces: 308601)				$ 10.06
48	254217		Screw, 10a X 3/8		Appelez-nous	-
49	313319		Trim, End (glass) (2)		Appelez-nous	-
50	WPW10339879		Cable, Tie   (Replaces: 309330)				$ 7.11
