SELECT A DIAGRAM

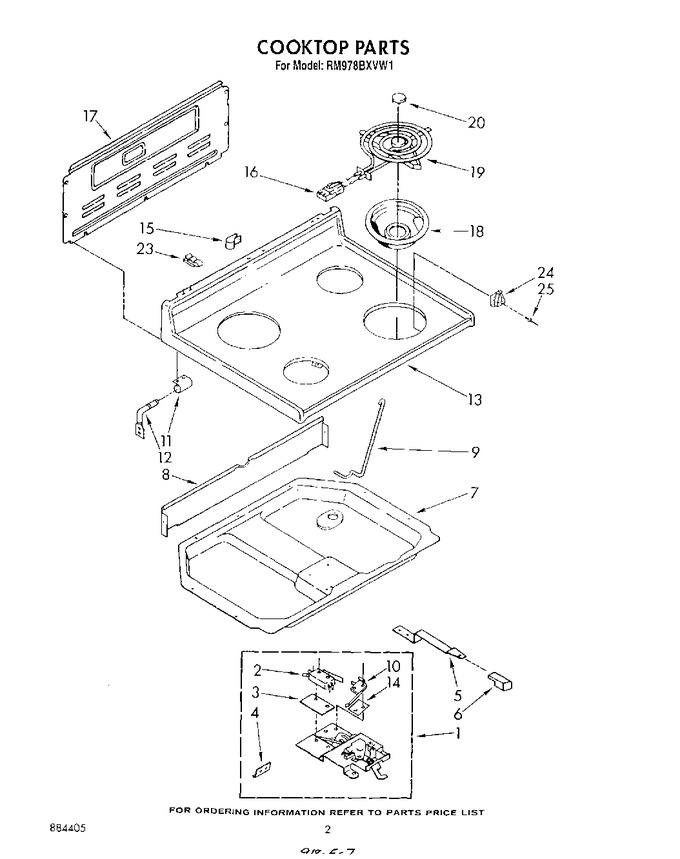

02 - Cooktop


03 - Oven


04 - Door


05 - Control Panel


06 - Cabinet And Latch , Literature And Optional


07 - Microwave Electrical


08 - Stirrer Drive


09 - Eye Level Chassis


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3171148		Latch, Lock		Appelez-nous	-
1	WP681414		Screw, 10-16 X 1/2 (2)   (Replaces: 343641)			Immediately	$ 7.07
2	98106		Screw (2)		Appelez-nous	-
2	308185		Switch, Safety		Appelez-nous	-
3	309245		Insulator, Switch		Appelez-nous	-
4	309258		Screw, 6 X 3/8b (2)		Appelez-nous	-
4	313035		Shield, Terminal		Appelez-nous	-
5	WP488627		Screw, 8-18 X 1/2   (Replaces: 313349)				$ 6.81
5	3147065		Handle, Latch		Appelez-nous	-
6	3148684		Knob, Latch		Appelez-nous	-
7	3149194		Box, Burner		Appelez-nous	-
7	WP3390631		Screw, 10a X 3/8 (4)   (Replaces: 309112)				$ 7.04
8	307973		Shield, Wiring		Appelez-nous	-
8	WP681414		Screw, 10-16 X 1/2 (2)   (Replaces: 343641)			Immediately	$ 7.07
9	3148659		Rod, Support (2)		Appelez-nous	-
10	3148669		Switch, Lock		Appelez-nous	-
10	313489		Screw (2)		Appelez-nous	-
11	307965		Bracket (2)		Appelez-nous	-
11	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 7.07
12	307966		Pin, Cooktop (2)		Appelez-nous	-
12	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 7.07
13	3170984		Cooktop (platinum)		Appelez-nous	-
13	3170983		Cooktop (toast)		Appelez-nous	-
13	3170982		Cooktop (almond)		Appelez-nous	-
13	3170981		Cooktop (white)		Appelez-nous	-
14	3147864		Insulator, Switch		Appelez-nous	-
15	WP965173		Screw, 8a X 3/8   (Replaces: 246132)			Immediately	$ 9.65
15	WP308605		Stain Relief   (Replaces: 308604)				$ 10.08
16	WP313808		Screw, 6-32 X 1/4 (4)   (Replaces: 313808)				$ 6.84
16	330031		Receptacle, Clip (4)   (Replaces: 312606)			Immediately	$ 14.48
17	WP681414		Screw (4)   (Replaces: 343641)			Immediately	$ 7.07
17	3148975		Panel, Rear Cooktop		Appelez-nous	-
18	WPW10196406		Reflector Pan 6`` (2)   (Replaces: 3148357)			Immediately	$ 12.05
18	W10196405RW		Reflector Pan (8`` (2))   (Replaces: 3148358)			Immediately	$ 18.70
19	WP660533		313967 (alt.) (8`` (2))   (Replaces: 660533)			Immediately	$ 39.47
19	WP660532		Element Surface (6`` (2))   (Replaces: 660529)			Immediately	$ 36.90
20	309195		Medallion (4)		Appelez-nous	-
23	313570		Clamp, Tube		Appelez-nous	-
24	814103		Clip, Hold Down (4)   (Replaces: 3148790)				$ 9.02
25	3149254		Harness, Surface Elements		Appelez-nous	-
25	309406		Housing, Connector		Appelez-nous	-
25	310222		Connector, Pin (8)		Appelez-nous	-
25	814103		Rivet (4)   (Replaces: 3148789)				$ 9.02
25	330031		Receptacle (4)			Immediately	$ 14.48
	WP660533		(alt.)   (Replaces: 313963)			Immediately	$ 39.47
	WP660532		(alt.)   (Replaces: 309192)			Immediately	$ 36.90
	WP660533		(alt.)   (Replaces: 309340)			Immediately	$ 39.47

    View Diagram in Separate Window       Print Part List
