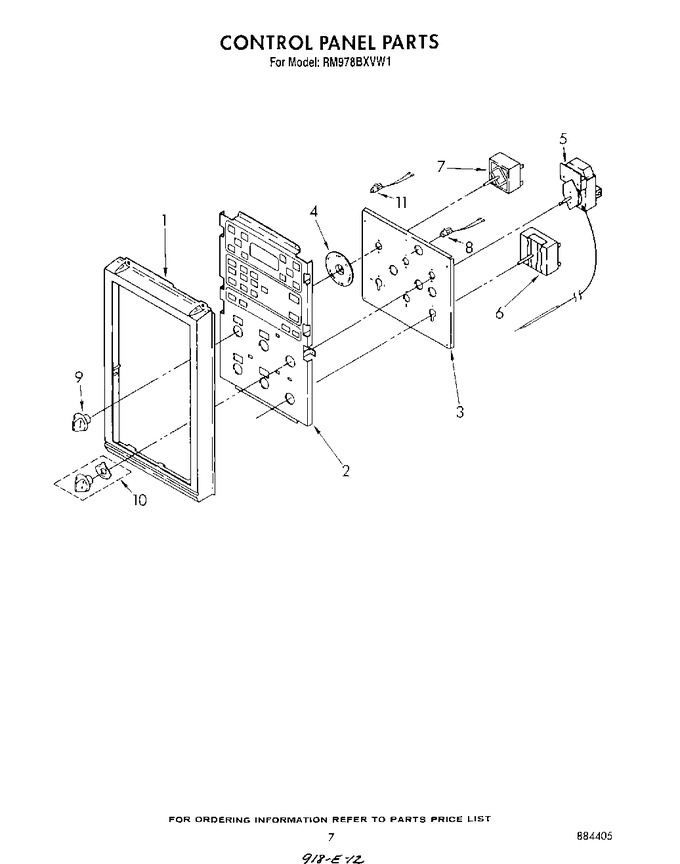

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3148090		Frame, Control Panel		Appelez-nous	-
2	313818		Screw, 8-32 X 3/16 (6)		Appelez-nous	-
2	3147942		Module, Control		Appelez-nous	-
3	313818		Screw, 8-32 X 3/16 (4)		Appelez-nous	-
3	3147280		Bracket, Control (mounting)		Appelez-nous	-
4	3147032		Skirt, Dail (4)		Appelez-nous	-
5	WP313808		Screw, 6-32 X 1/4 (2)   (Replaces: 311932)				$ 6.84
5	3148930		Thermostat		Appelez-nous	-
6	308119		Screw, 8-32 X 3/16 (2)		Appelez-nous	-
6	3147234		Switch Selctor		Appelez-nous	-
7	308477		Switch, Infinite (4)		Appelez-nous	-
7	308119		Screw, 8-32 X 3/16 (8)		Appelez-nous	-
8	3147862		Light, Indicator (3)		Appelez-nous	-
9	3147030		Knob, Control (4)		Appelez-nous	-
10	3147888		Knob, Selector (2)		Appelez-nous	-
11	310222		Connector, Pin (12)		Appelez-nous	-
11	310223		Connector, Pin (6)		Appelez-nous	-
11	3147549		Wiring Harness (infinite Switch)		Appelez-nous	-
11	309409		Housing, Connector		Appelez-nous	-
11	309407		Connector, Pin (8)		Appelez-nous	-
11	3147917		Wiring Harness (select/therm)		Appelez-nous	-
11	309405		Housing, Connector		Appelez-nous	-
11	3149036		Light, Indicator		Appelez-nous	-
11	3147560		Harness, Control		Appelez-nous	-
11	3147218		Socket		Appelez-nous	-
11	308565		Housing, Connector		Appelez-nous	-
11	308564		Connector, Pin (12)		Appelez-nous	-
11	308563		Key, Polarizing (used To Install Pin Into Housing)		Appelez-nous	-
11	3147554		Harness, Main Electronic		Appelez-nous	-
11	311575		Housing, Connector		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
