SELECT A DIAGRAM

02 - Cooktop


03 - Oven


04 - Door


05 - Control Panel


06 - Cabinet And Latch , Literature And Optional


07 - Microwave Electrical


08 - Stirrer Drive


09 - Eye Level Chassis

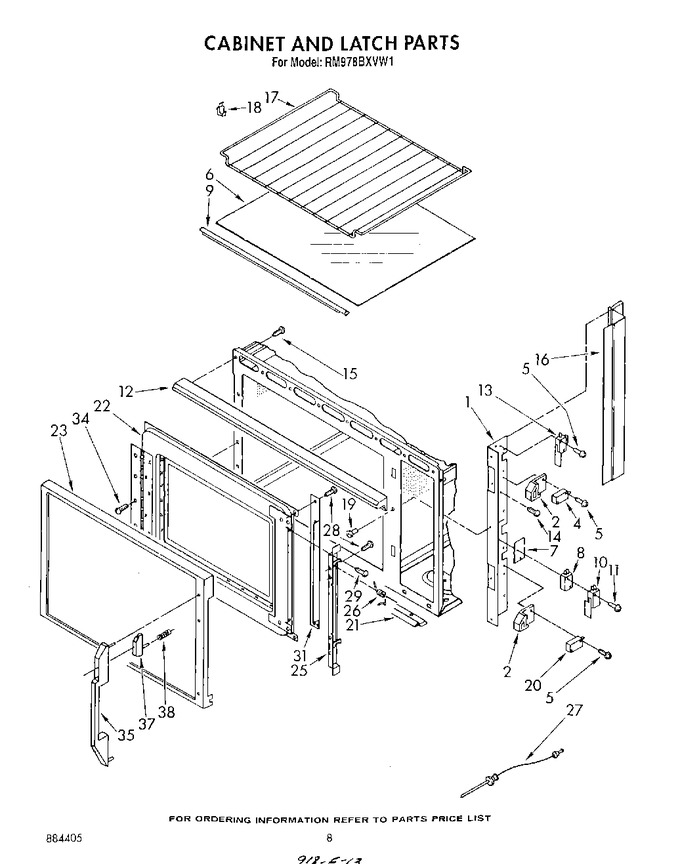

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	311354		Bracket, Catch Includes 3, No.19		Appelez-nous	-
2	311795		Catch (2)		Appelez-nous	-
4	814037		Switch, Primary Interlock   (Replaces: 661146)				$ 81.32
4	814037		Switch, Primary Interlock (alt.)   (Replaces: 313077)				$ 81.32
4	814037		Switch, Primary Interlock (alt.)   (Replaces: 313125)				$ 81.32
5	312717		Screw 4-40x3/4 (8)		Appelez-nous	-
6	WP482338		Sealer, Silastic (3 Oz.)   (Replaces: 482338)			Immediately	$ 57.16
6	313639		Shelf, Glass Install With:		Appelez-nous	-
7	313126		Insulator		Appelez-nous	-
8	313615		Trim, Shelf (rear)		Appelez-nous	-
8	313614		Trim, Shelf (front)		Appelez-nous	-
8	661144		Switch, Monitor/ Oven Light		Appelez-nous	-
8	313075		Switch, Monitor/ Oven Light (alt.)		Appelez-nous	-
8	313123		Switch, Monitor/ Oven Light (alt.)		Appelez-nous	-
10	661145		Switch, Monitor/ Oven Light		Appelez-nous	-
10	313124		Switch, Monitor/ Oven Light (alt.)		Appelez-nous	-
10	313076		Switch, Monitor/ Oven Light (alt.)		Appelez-nous	-
11	310211		Screw, 4-40 X 1 (2)		Appelez-nous	-
12	3149297		Grille, Air		Appelez-nous	-
13	313120		Switch, Electronic		Appelez-nous	-
14	309080		Screw 8-32 X 3/8		Appelez-nous	-
15	3149443		Screw, 6-20 X 1/2 (3)		Appelez-nous	-
16	311360		Shield		Appelez-nous	-
17	313663		Rack, Wire		Appelez-nous	-
18	WP3149478		Support, Rack (4)   (Replaces: 313653)				$ 8.64
19	311928		Rivet, Pop (6)				$ 5.33
20	814037		Switch, Secondary Interlock (alt.)   (Replaces: 313077)				$ 81.32
20	814037		Switch, Secondary Interlock   (Replaces: 661146)				$ 81.32
20	814037		Switch, Secondary Interlock (alt.)   (Replaces: 313125)				$ 81.32
21	313598		Trim, Lower		Appelez-nous	-
22	330451		Door, Inner		Appelez-nous	-
23	3170439		Frame, Door		Appelez-nous	-
25	329066		Latch, Complete		Appelez-nous	-
26	311352		Spring, Torsion (2)		Appelez-nous	-
27	313527		Probe, Temperature		Appelez-nous	-
28	303776		Screw, 8-32 X 5/16 (2)   (Replaces: 313811)		Appelez-nous	-
29	313820		Screw (2)		Appelez-nous	-
31	3148296		End Cap		Appelez-nous	-
34	WPW10068250		Screw, 8-32 X .29 (4)   (Replaces: 311777)				$ 3.66
35	313610		Handle, Door		Appelez-nous	-
37	313611		Button, Door Handle				$ 35.65
38	814023		Paint, 1 Qt. Bulk (non-vent Kit)		Appelez-nous	-
38	350956		Paint, 13 Oz. Spray (almond)				$ 46.30
38	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
38	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
38	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 16.12
38	978883		Paint, 1 Qt. Bulk (almond (uncut))		Appelez-nous	-
38	285367		Enamal, Toast (1 Qt. Uncut)		Appelez-nous	-
38	285368		Paint, 1 Qt. Bulk (platinum (uncut))		Appelez-nous	-
38	WPW10208653		Insulation, Fiberglass (1-1/2`` X 24`` X 120``)   (Replaces: 261514)			Immediately	$ 49.92
38	WPW10208653		Insulation, Fiberglass (2-1/2`` X 22`` X 120``)   (Replaces: 240132)			Immediately	$ 49.92
38	261582		Paint, 1 Qt. Bulk (grease)		Appelez-nous	-
38	WP482338		Sealer, Silastic (3 Oz.)   (Replaces: 482338)			Immediately	$ 57.16
38	591014		Adhesive Loctite (1/3 Oz.)		Appelez-nous	-
38	WP75614		Line, Splice (5)   (Replaces: 309551)				$ 44.41
38	799832		Kit. Porcelain Repair (white)		Appelez-nous	-
38	242985		Paint, 1 Qt. Bulk (rotisserie Kit)		Appelez-nous	-
38	242820		Wire (14 Ga. 150 C Black)		Appelez-nous	-
38	310197		Spring, Compression		Appelez-nous	-
38	3147554		Harness, Main Electronic		Appelez-nous	-
38	311575		Housing, Connector		Appelez-nous	-
38	310223		Connector, Pin (6)		Appelez-nous	-
38	242828		Wire (12 Ga. 150 C Black)		Appelez-nous	-
38	242829		Wire, 25` Roll 12 Ga. 150oc (red 14 Ga. 150oc)		Appelez-nous	-
38	242821		Wire (14 Ga. 150 C Blue)		Appelez-nous	-
38	242822		Wire (14 Ga. 150 C Brown)		Appelez-nous	-
38	242823		Wire (14 Ga. 150 C Green)		Appelez-nous	-
38	242824		Wire (14 Ga. 150 C Orange)		Appelez-nous	-
38	242825		Wire (14 Ga. 150 C Red)		Appelez-nous	-
38	242826		Wire, 25` Roll 12 Ga. 150oc (white)		Appelez-nous	-
38	242827		Wire (14 Ga. 150 C Yellow)		Appelez-nous	-
38	242830		Wire (14 Ga. 200 C Brown)		Appelez-nous	-
38	242831		Wire (14 Ga. 200 C Red)				$ 342.23
38	242832		Wire, 25` Roll 12 Ga. 150oc (yellow)		Appelez-nous	-
38	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 124.07
38	72112		Paint, (touch-up 1/2 Oz.) (toast)		Appelez-nous	-
38	DD81-03496A		Paint, Touch-up 1/2 Oz. (platinum)   (Replaces: 72113)				$ 105.40
38	WP261869		Paint, 1/2 Oz. Touch-up (citrine White (microwave))   (Replaces: 261869)				$ 23.85
38	254323		Paint, 1/2 Oz. Touch-up (touch-up Oven)		Appelez-nous	-
38	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 44.36
38	350942		Paint, 13 Oz. Spray (primer, White)   (Replaces: 206922)				$ 80.69
38	206925		Paint, 13 Oz. Spray (leveler, Enamel)		Appelez-nous	-
38	261890		Paint, 13 Oz. Spray (harvest Gold)		Appelez-nous	-
38	285365		Paint, Spray (13 Oz.) (toast)		Appelez-nous	-
38	285366		Paint, Spray (13 Oz.) (platinum)		Appelez-nous	-
38	285006		Paint, 13 Oz. Spray (black)   (Replaces: 799339)			Immediately	$ 51.34
38	350930		Paint, 13 Oz. Spray (white)   (Replaces: 799343)			Immediately	$ 34.39
38	261900		Paint, 13 Oz. Spray (citrine White (5 Oz.))				$ 51.34
38	799340		Paint, 1 Qt. Bulk (black (uncut))		Appelez-nous	-
38	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
38	261891		Paint, 1 Qt. Bulk (harvest Gold (uncut))		Appelez-nous	-
