Diagram # Part Number Description Series Availability Ships Price Add to Cart
2 3147004 Cover, Side Appelez-nous -
2 WP488729 Screw, 8-18 X .50 (4)   (Replaces: 313638) In-Stock Immediately $ 7.01

7 312713 Screw, 8-32 X 3/8 Pan Head Phillips Appelez-nous -
8 312023 Bushing, Stirrer Appelez-nous -
9 3147599 Seal, Foam Appelez-nous -
10 312026 Shaft, Stirrer Appelez-nous -
11 313595 Stirrer Blade Appelez-nous -
12 312025 Washer, Nylon Appelez-nous -
13 313816 Screw, 8-32 X 1/2 (3) Appelez-nous -
14 311923 Pulley, Stirrer Blade Appelez-nous -
15 311999 ``e`` Ring Appelez-nous -
16 313740 Fastner (4) Appelez-nous -
17 WP487939 Nut, Standard Hex 1/4-20   (Replaces: 311721) Special Order $ 6.95

18 WP313646 Belt, Drive   (Replaces: 313646) Special Order $ 76.05

20 313563 Stirrer Cover Appelez-nous -
23 313735 Plate, Tuning Appelez-nous -
24 313739 Support (4) Appelez-nous -
29 310423 Fastener Appelez-nous -
29 3147002 Baffle, Air Appelez-nous -
44 313855 Fuse, Thermal Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

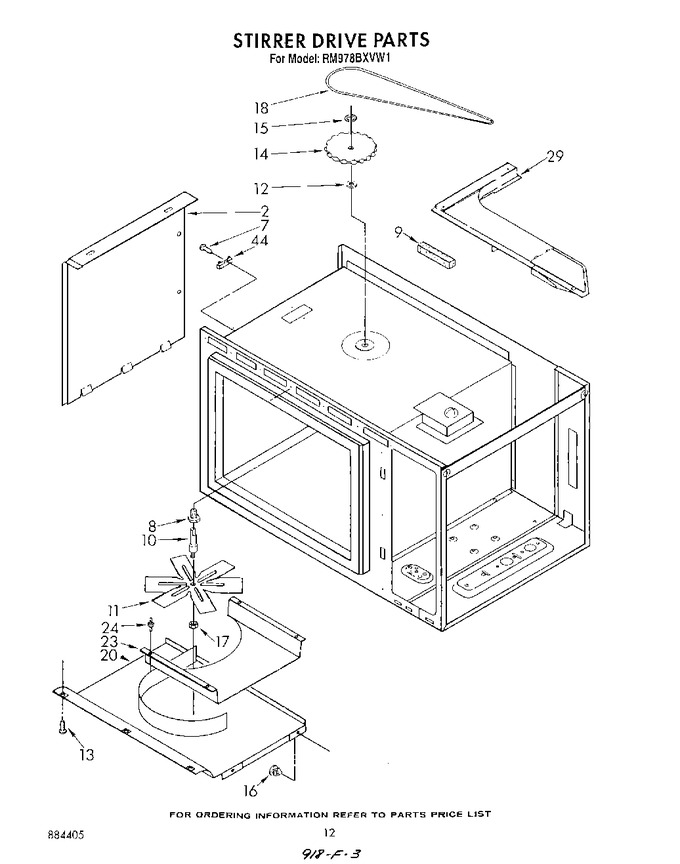

Diagram for RM978BXVW1
