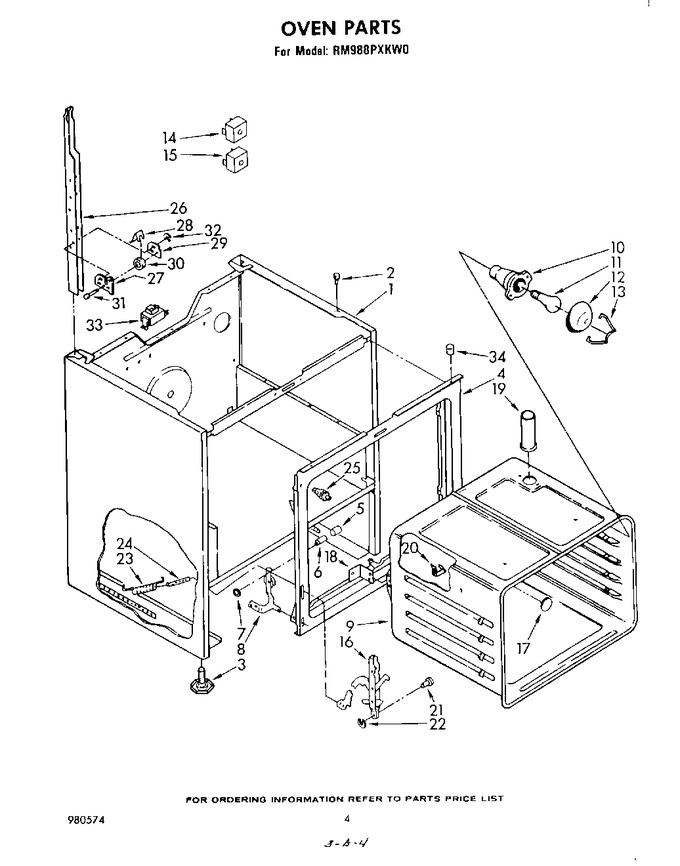

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	327874		Main Chassis (harvest Gold)		Appelez-nous	-
1	327871		Main Chassis (white)		Appelez-nous	-
1	327875		Main Chassis (almond)		Appelez-nous	-
2	238614		Bumper, Cooktop (2)				$ 72.68
3	WP233550		Leg Leveling (4)   (Replaces: 233550)				$ 7.16
4	327886		Frame, Front		Appelez-nous	-
4	WP681414		Screw, 10-16 X 1/2 (15)   (Replaces: 343641)			Immediately	$ 7.07
5	307985		Pin, Hinge				$ 29.54
6	309111		Snubber, Door (2)		Appelez-nous	-
7	308306		Pushnut		Appelez-nous	-
8	327890		Hinge (r.h.)		Appelez-nous	-
8	327891		Hinge (l.h.)		Appelez-nous	-
8	WP681414		Screw, 10-32 Hex (4)   (Replaces: 343631)			Immediately	$ 7.07
9	311056		Screw (3)		Appelez-nous	-
9	329002		Oven (30`` Pyro)		Appelez-nous	-
10	308043		Socket, Lamp (screw, 10-12 X 7/8 (2))		Appelez-nous	-
10	307856		Socket, Lamp (alternate)		Appelez-nous	-
10	310208		Socket, Lamp (alternate)			Immediately	$ 36.34
11	8009		Bulb, Oven Light   (Replaces: 311255)			Immediately	$ 16.80
12	308039		Cover, Light		Appelez-nous	-
13	308038		Retainer, Light		Appelez-nous	-
14	310643		Switch, Broil		Appelez-nous	-
15	310644		Switch, Bake		Appelez-nous	-
16	327892		Channel, Arm (2)		Appelez-nous	-
17	257314		Plug Button		Appelez-nous	-
18	311220		Bracket, Oven (mounting)		Appelez-nous	-
18	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 7.07
19	WP308685		Screw, 10a X 1/2 (2)   (Replaces: 253549)			Immediately	$ 7.08
19	309025		Vent, Oven		Appelez-nous	-
20	98005642		Clip, Therm Bulb (2)   (Replaces: 258139)			Immediately	$ 74.64
21	WP307986		Hinge Pin (2)   (Replaces: 307986)				$ 11.78
22	307594		Ring, Retainer (2)		Appelez-nous	-
23	WP308126		Spring, Oven Door (2)   (Replaces: 308126)				$ 38.15
24	WP308125		Anchor, Spring (2)   (Replaces: 308125)				$ 10.94
25	310345		Switch, Door				$ 94.86
26	309505		Support, Tube (r.h.)		Appelez-nous	-
26	309503		Support, Tube (l.h.)		Appelez-nous	-
27	308993		Hinge, Cooktop (2)		Appelez-nous	-
28	308977		Spring, Detent (2)		Appelez-nous	-
29	WP308544		Screw, 10-24 X 1/2 (8)   (Replaces: 308544)			Immediately	$ 6.98
29	308978		Plate, Roller Guide (2)		Appelez-nous	-
30	308976		Roller, Latch (2)		Appelez-nous	-
31	309259		Pin, Roller (2)		Appelez-nous	-
32	307605		Ring, Retainer (2)		Appelez-nous	-
33	685591		Ballast (alternate)		Appelez-nous	-
33	WP681414		Ballast (screw, 10-16 X 1/2 (2))   (Replaces: 343641)			Immediately	$ 7.07
33	346772		Ballast (alternate)		Appelez-nous	-
34	310210		Screw, 8-32 X 5/16 (2)		Appelez-nous	-
34	311909		Locator, Cooktop		Appelez-nous	-
