Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 307981 Bracket, Mounting (2) Appelez-nous -
2 307982 Rail R.h. (includes Illus. 3) Appelez-nous -
2 307983 Rail L.h. (includes Illus. 3) Appelez-nous -
2 WP308685 Screw, 10a X 1/2 (2)   (Replaces: 253549) In-Stock Immediately $ 7.08

3 307979 Glide, Front (2) Appelez-nous -
4 246127 Screw, 10-32 X 5/8 (2) Appelez-nous -
4 WP308180 Unit, Bake   (Replaces: 308180) Special Order $ 96.92

5 246127 Unit, Broil (screw, 10-32 X 5/8 (2)) Appelez-nous -
5 WP660579 Unit, Broil (alternate)   (Replaces: 311713) Special Order $ 140.80

5 WP660579 Unit, Broil (alternate)   (Replaces: 311714) Special Order $ 140.80

6 WP681414 Screw, 10-16 X 1/2 (2)   (Replaces: 343641) In-Stock Immediately $ 7.07

6 309064 Shield, Cook/counter Appelez-nous -
7 WP112432 Nut (6)   (Replaces: 112432) Special Order $ 7.16

7 W10841059 Screw, 10-16 X 3/4 (2)   (Replaces: 98445) Appelez-nous -
7 WP8203546 Terminal Block   (Replaces: 258076) In-Stock Immediately $ 27.12

8 308498 Ground Strap Appelez-nous -
8 WP681414 Screw, 10-32   (Replaces: 343631) In-Stock Immediately $ 7.07

9 309211 Tube Clip Appelez-nous -
10 307970 Bracket, Service Appelez-nous -
10 WP681414 Screw, 10-16 X 1/2 (2)   (Replaces: 343641) In-Stock Immediately $ 7.07

11 309102 Stand-off (bracket) Appelez-nous -
11 WP681414 Screw,10-16 X 1/2   (Replaces: 343641) In-Stock Immediately $ 7.07

12 307971 Cover, Rear Appelez-nous -
12 WP681414 Screw, 10-16 X 1/2 (7)   (Replaces: 343641) In-Stock Immediately $ 7.07

13 WP308544 Screw, 10-24 X 1/2 (2)   (Replaces: 308544) In-Stock Immediately $ 6.98

13 307972 Cover, Service Appelez-nous -
14 310973 Pan, Broiler Appelez-nous -
15 308674 Rack, Broiler Appelez-nous -
16 308173 Rack, Oven (straight) Appelez-nous -
17 308172 Rack, Oven (offset) Appelez-nous -
18 311982 Plate, Cover Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

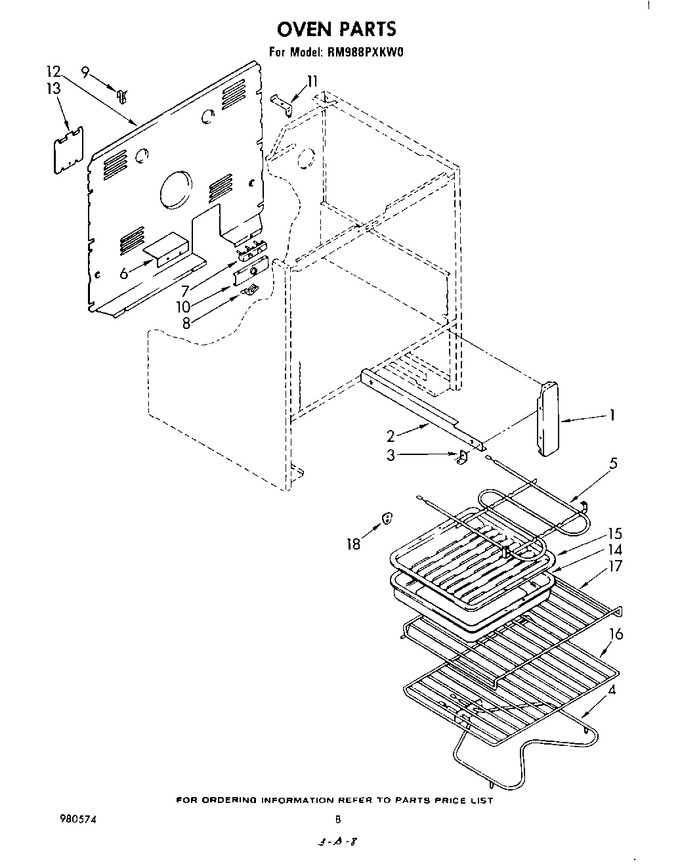

Diagram for RM988PXKW0
