Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 309608 Frame, Control Panel Appelez-nous -
2 311633 Touch Module Appelez-nous -
3 309490 Splice, Panel Appelez-nous -
4 311674 Control Panel, Glass Appelez-nous -
5 309609 Cap, Control Panel (bottom) Appelez-nous -
6 348689 Screw, No. 8 (2) Special Order $ 66.92

7 61027 Display Assembly (includes Illus. 8) Special Order $ 28.88

7 61053 Clip (2) Appelez-nous -
8 60776 Display, Clock (yellow) Appelez-nous -
9 WP486754 Screw, 6-32 X 1/4 (3)   (Replaces: 246119) Special Order $ 6.75

10 309485 Bracket, P.c. Board Appelez-nous -
10 246131 Screw, 6a X 3/8 (2) Appelez-nous -
11 138473 Lockwasher Appelez-nous -
13 60792 Power Supply Assembly Appelez-nous -
14 309080 Screw, 8-32 X 3/8 (2) Appelez-nous -
15 TB1056 Transformer & Harness Assembly   (Replaces: 60355) Appelez-nous -
15 WP486754 Screw, 6-32 X 1/4   (Replaces: 246119) Special Order $ 6.75

16 138473 Lockwasher Appelez-nous -
17 309258 Screw, 6 X 3/8 Appelez-nous -
19 310372 Relay, Power (12v) (alternate) Appelez-nous -
19 310370 Relay, Power (12v) (alternate) Appelez-nous -
20 310373 Relay, Power Latch (120v) (alternate) Appelez-nous -
20 310371 Relay, Power Latch (120v) (alternate) Appelez-nous -
21 309258 Screw, 6 X 3/8 (4) Appelez-nous -
22 61096 Microcomputer Assembly Appelez-nous -
23 328430 Protector Assembly Appelez-nous -
24 310951 Rivet Appelez-nous -
25 309080 Screw, 8-32 X 3/8 (2) Appelez-nous -
26 WPW10339879 Cable, Tie   (Replaces: 309330) Special Order $ 7.11

27 309434 Timer, Auto Appelez-nous -
28 308443 Motor, Timer Appelez-nous -
29 309645 Nut, Aluminum (4) Appelez-nous -
30 166681 Screw, 10-32 X 5/16 (2) Appelez-nous -
31 309841 Cable, Support Appelez-nous -
32 328137 Bracket, Control Mounting Appelez-nous -
33 311545 Light, Indicator (250v) (7) Appelez-nous -
34 310023 Thermostat (lower Oven) Appelez-nous -
35 310054 Insulator Appelez-nous -
35 487384 Screw, 6-32 X 1/4 (2) Appelez-nous -
36 308119 Screw, 8-32 X 3/16 (2) Appelez-nous -
36 310007 Switch, Selector Appelez-nous -
37 308119 Screw, 8-32 X 3/16 (8) Appelez-nous -
37 308475 Switch, Infinite (4) Appelez-nous -
38 328923 Resistor & Terminal Assembly Appelez-nous -
39 WP965173 Screw, 8a X 3/8 (3)   (Replaces: 246132) In-Stock Immediately $ 9.65

39 WP308605 Strain, Relief   (Replaces: 308605) Special Order $ 10.08

39 WP308605 Strain Relief   (Replaces: 308604) Special Order $ 10.08

39 488946 Strain Relief   (Replaces: 308606) Special Order $ 18.41

40 309489 Skirt, Knob (4) Appelez-nous -
41 138473 Lockwasher Appelez-nous -
42 WP486754 Screw, 6-32 X 1/4 (4)   (Replaces: 246119) Special Order $ 6.75

43 311945 Screw Appelez-nous -
44 309553 Knob, Timer (3) Appelez-nous -
45 309556 Bezel, Control Knob (4) Appelez-nous -
46 308348 Spring, Bezel (4) Appelez-nous -
47 308346 Knob, Control (4) Appelez-nous -
48 328709 Knob, Thermostat Appelez-nous -
49 328707 Knob, Selector Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

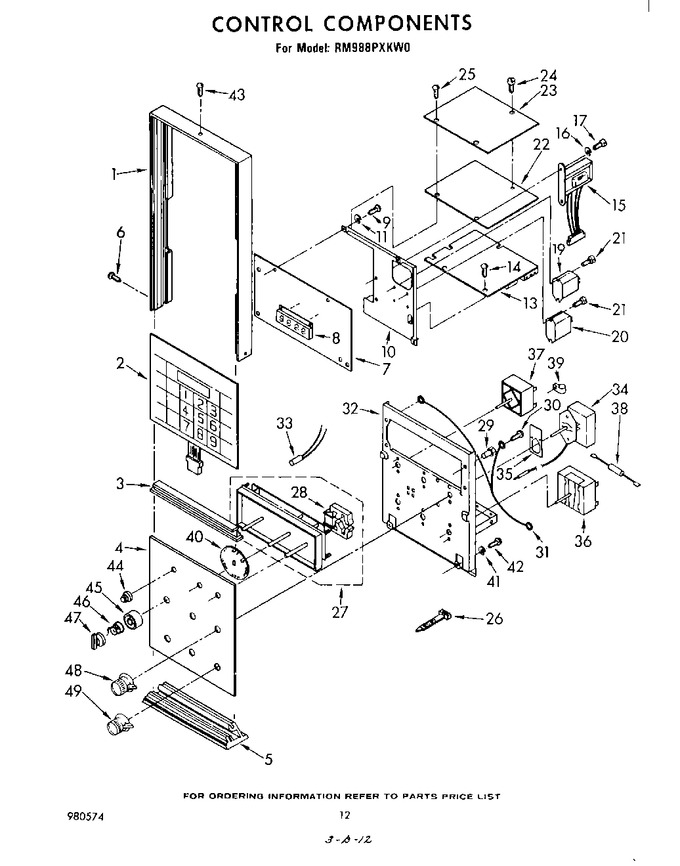

Diagram for RM988PXKW0
