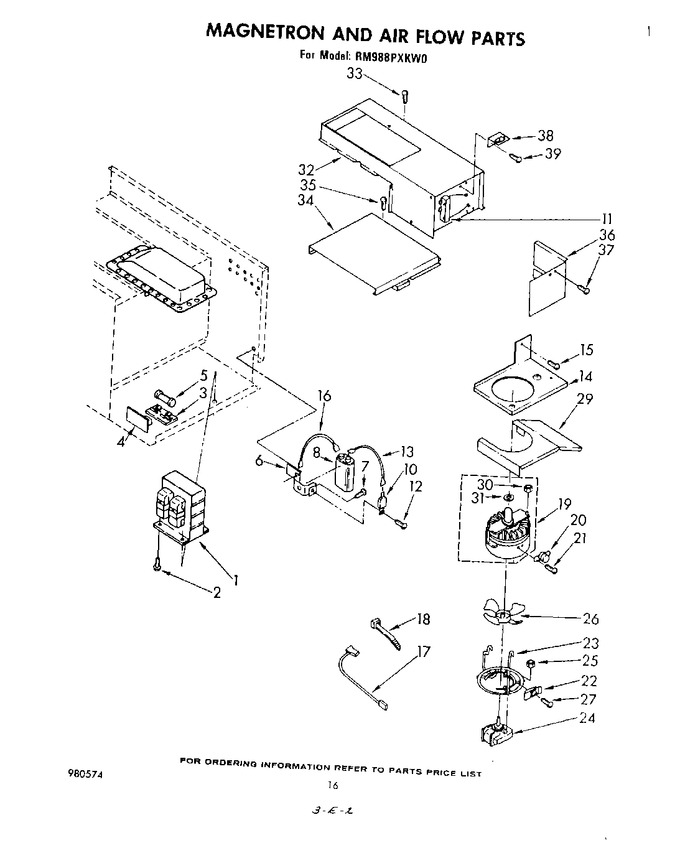

09 - Magnetron And Air Flow


10 - Light, Hinge And Stirrer , Literature


11 - Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	307676		Transformer		Appelez-nous	-
2	312185		Screw, 10-32 X 1/2 (4)		Appelez-nous	-
3	309795		Block, Fuse		Appelez-nous	-
4	310391		Shield, Fuse		Appelez-nous	-
5	WPW10017410		Fuse   (Replaces: 311167)			Immediately	$ 19.05
6	308572		Bracket, Capacitor		Appelez-nous	-
7	258857		Screw, 10-32 X 1/2		Appelez-nous	-
8	311723		Capacitor (includes 329163 Resistor, 2 Watt 10m) (alternate)		Appelez-nous	-
8	311724		Capacitor (includes 329163 Resistor, 2 Watt 10m) (alternate)		Appelez-nous	-
10	832836		Rectifier, High Voltage		Appelez-nous	-
11	309623		Relay, Reed (alternate)		Appelez-nous	-
11	WP965173		Relay, Reed (screw, 8a X 3/8 (2))   (Replaces: 246132)			Immediately	$ 9.65
11	309941		Reed Relay (alternate)		Appelez-nous	-
12	310629		Screw, 8-32 X 3/8		Appelez-nous	-
13	311466		Jumper, High Voltage		Appelez-nous	-
14	309477		Duct, Bottom		Appelez-nous	-
15	254217		Screw, 10a X 3/8 (2)		Appelez-nous	-
16	311467		Jumper, High Voltage		Appelez-nous	-
17	309084		Wire, High Voltage (2)		Appelez-nous	-
18	WPW10339879		Cable Tie (2)   (Replaces: 309330)				$ 7.11
19	310299		Magnetron		Appelez-nous	-
20	307564		Thermostat		Appelez-nous	-
21	246131		Screw, 6a X 3/8 (2)		Appelez-nous	-
22	308845		Fastener, Speed Nut (3)		Appelez-nous	-
23	311905		Mount, Motor (fan)		Appelez-nous	-
24	309849		Motor, Fan		Appelez-nous	-
25	311136		Nut (2)		Appelez-nous	-
26	307535		Blade, Fan		Appelez-nous	-
27	WP681414		Screw, 10-16 X 1/2 (3)   (Replaces: 343641)			Immediately	$ 7.07
29	312186		Shield, Magnetron		Appelez-nous	-
30	310300		Nut, 5mm Flange (2)		Appelez-nous	-
31	310302		Gasket, Magnetron		Appelez-nous	-
32	328913		Duct, Cooling Air		Appelez-nous	-
33	254217		Screw, 10a X 3/8 (6)		Appelez-nous	-
34	328399		Duct, Discharge		Appelez-nous	-
35	254217		Screw, 10a X 3/8 (2)		Appelez-nous	-
36	309899		Baffle, Air		Appelez-nous	-
37	WP965173		Screw, 8a X 3/8 (2)   (Replaces: 246132)			Immediately	$ 9.65
38	308839		Bracket, Receptacle		Appelez-nous	-
39	254217		Screw, 10a X 3/8 (2)		Appelez-nous	-
