Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 3150217 Frame, Control Appelez-nous -
1 312006 Screw (2) Appelez-nous -
2 313818 Screw, 8-32 X 3/16 (6) Appelez-nous -
2 3148982 Module, Control Appelez-nous -
3 313818 Screw, 8-32 X 3/16 (4) Appelez-nous -
3 3147280 Bracket, Control (mounting) Appelez-nous -
4 3147032 Skirt, Dail (4) Appelez-nous -
5 WP313808 Screw, 6-32 X 1/4 (2)   (Replaces: 311932) Special Order $ 6.84

5 3148930 Thermostat, Oven Appelez-nous -
6 WP965173 Screw, No.8 X .31 (2)   (Replaces: 3150344) In-Stock Immediately $ 9.65

6 3148421 Switch, Selector Appelez-nous -
7 308119 Screw, 8-32 X 3/16 (8) Appelez-nous -
7 308477 Switch, Infinite (4) Appelez-nous -
8 3147862 Light, Indicator (3) Appelez-nous -
9 3147030 Knob, Control (4) Appelez-nous -
10 3147888 Knob, Selector (2) Appelez-nous -
11 3149036 Light, Indicator Appelez-nous -
12 314125 Relay, Power Appelez-nous -
12 246131 Screw No.6 X 3/8 Appelez-nous -
13 697811 Relay   (Replaces: 3147643) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

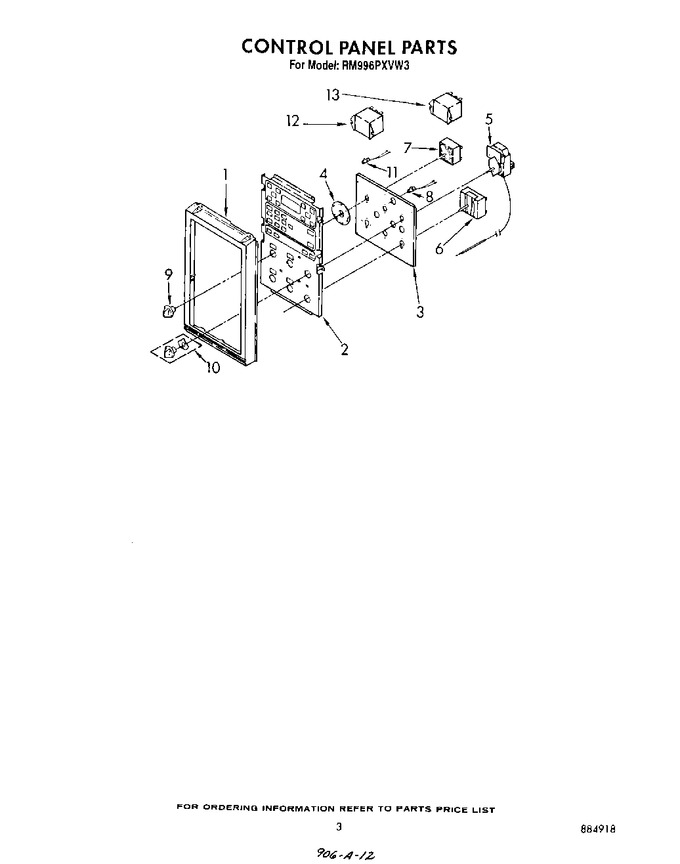

Diagram for RM996PXVW3
