Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 3149579 Wire Harness (main) Appelez-nous -
2 3147917 Wiring Harness (select/therm) Appelez-nous -
3 3147549 Wiring Harness (infinite Switch) Appelez-nous -
4 3147556 Wire Harness (infinite Switch) Appelez-nous -
6 3147567 Wire Harness (infinite Switch) Appelez-nous -
7 3149072 Wire Harness (cooktop) Appelez-nous -
8 3147559 Wiring Harness Control (microwave) Appelez-nous -
9 3147554 Wiring Harness Main (microwave) Appelez-nous -
10 16515 Clip   (Replaces: 313438) Special Order $ 17.60

11 3147832 Terminal, Adapter Appelez-nous -
12 308609 Strain, Relief Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

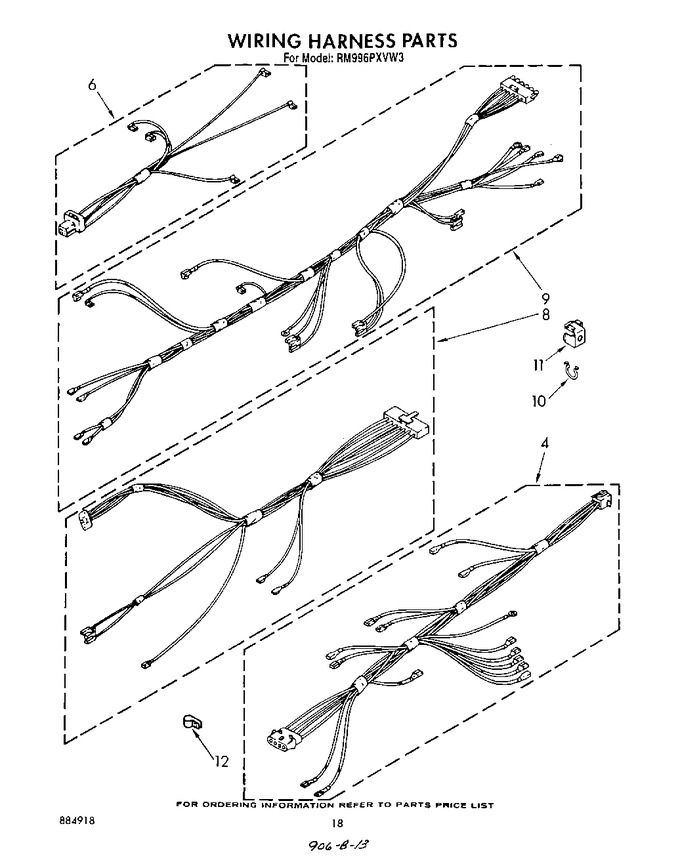

Diagram for RM996PXVW3
