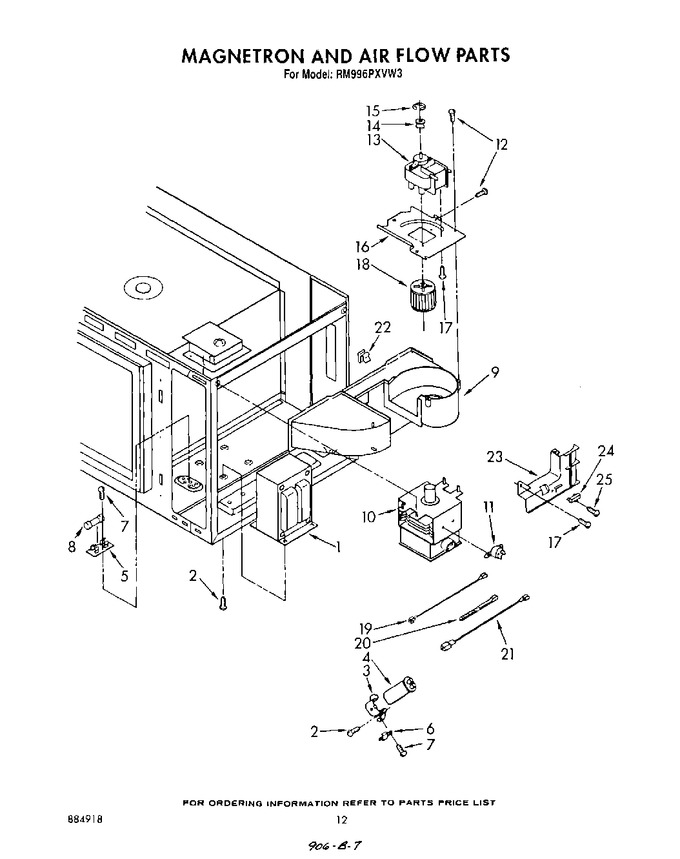

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3147272 | Transformer |
|
- | |||||
| 2 | 312185 | Screw, 10-32 X 1/2 (4) |
|
- | |||||
| 3 | 312619 | Bracket, Capacitor |
|
- | |||||
| 4 | 312632 | Capacitor (alt.) |
|
- | |||||
| 4 | 661004 | Capacitor |
|
- | |||||
| 4 | 312631 | Capacitor (alt.) |
|
- | |||||
| 5 | 4454949 | Block, Fuse (Replaces: 314121) |
|
$ 81.63 | |||||
| 6 | 313830 | Rectifier, High Voltage |
|
- | |||||
| 7 | 312713 | Screw, 8-32 X 3/8 (2) |
|
- | |||||
| 8 | WPW10017410 | Fuse (20 Amp) (Replaces: 309796) |
|
Immediately | $ 19.05 | ||||
| 9 | 313578 | Air Duct (horizontal) |
|
- | |||||
| 10 | 311992 | Magnetron (alt.) |
|
- | |||||
| 10 | 313034 | Magnetron (alt.) |
|
- | |||||
| 10 | 311995 | Magnetron (alt.) |
|
- | |||||
| 10 | 311994 | Magnetron (alt.) |
|
- | |||||
| 10 | 311993 | Magnetron (alt.) |
|
- | |||||
| 10 | 660595 | Magnetron |
|
- | |||||
| 11 | 313521 | Thermal Protector (alt.) |
|
- | |||||
| 11 | 312800 | Thermal Protector (alt.) |
|
- | |||||
| 11 | 661165 | Thermal Protector |
|
- | |||||
| 12 | 346893 | Screw, 11-16 X 1/2 Double Load Space Thread (2) |
|
- | |||||
| 13 | 313641 | Transmotor |
|
- | |||||
| 14 | 311922 | Pulley, Motor |
|
- | |||||
| 15 | 311999 | ``e`` Ring |
|
- | |||||
| 16 | 313601 | Bracket, Motor |
|
- | |||||
| 17 | WP486579 | Screw, 6 X 1/4 Round Head Cross Recess (4) (Replaces: 311865) |
|
$ 6.61 | |||||
| 18 | 3147223 | Wheel, Blower |
|
- | |||||
| 19 | 313130 | Jumper, High Voltage Red (6-5/16``) |
|
- | |||||
| 20 | WPW10339879 | Cable Tie (2) (Replaces: 309330) |
|
$ 7.11 | |||||
| 21 | 3147863 | High Voltage Lead, Gray 6-3/4`` (2) |
|
- | |||||
| 22 | 311311 | Clip |
|
- | |||||
| 23 | 3147262 | Extension, Air Duct |
|
- | |||||
| 24 | 3147275 | Fuse, Thermal |
|
- | |||||
| 25 | 313818 | Screw |
|
- | |||||
| NI | 312782 | Screw (2) |
|
- |
