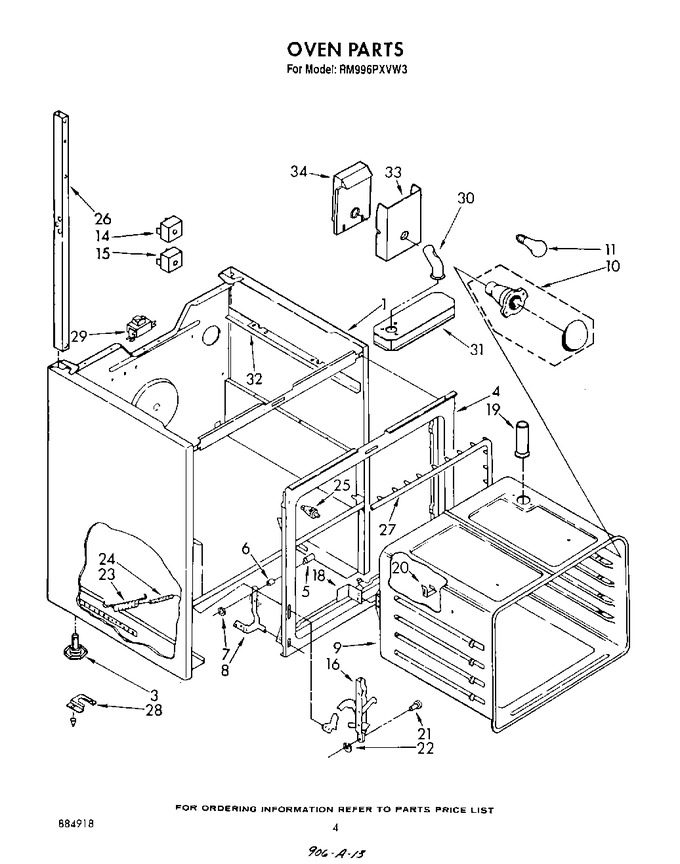

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP681414		Main Chassis (screw, 10-16 X 1/2 (2))   (Replaces: 343641)			Immediately	$ 7.07
1	330086		Main Chassis (white)		Appelez-nous	-
1	330090		Main Chassis (almond)		Appelez-nous	-
1	WP681414		Main Chassis (screw 10-32 X 1/2 (2))   (Replaces: 690989)			Immediately	$ 7.07
3	WPW10058460		Leg, Leveling (4)   (Replaces: 3150150)			Immediately	$ 7.07
4	WP681414		Screw, 10-16 X 1/2 (13)   (Replaces: 343641)			Immediately	$ 7.07
4	3172194		Frame, Front		Appelez-nous	-
5	307985		Pin, Hinge (2)				$ 29.54
6	309111		Snubber, Door (2)		Appelez-nous	-
7	308306		Pushnut (2)		Appelez-nous	-
8	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 7.07
8	327891		Hinge (l.h.)		Appelez-nous	-
8	327890		Hinge (r.h.)		Appelez-nous	-
9	3172547		Oven (30`` Pyro)		Appelez-nous	-
9	311056		Screw (2)		Appelez-nous	-
9	3150537		Screw		Appelez-nous	-
10	307856		Socket, Lamp (alt.)		Appelez-nous	-
10	310208		Socket, Lamp (alt.)			Immediately	$ 36.34
10	W11594027		Socket, Lamp   (Replaces: 3150505)			Immediately	$ 78.31
11	8009		Bulb, Oven Light   (Replaces: 311255)			Immediately	$ 16.80
14	314215		Screw, No.6		Appelez-nous	-
14	314209		Switch, Broil		Appelez-nous	-
15	314215		Screw, No.6		Appelez-nous	-
15	314210		Switch, Bake		Appelez-nous	-
16	329710		Channel, Arm (2)		Appelez-nous	-
18	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 7.07
18	311220		Bracket, Oven (mounting)		Appelez-nous	-
19	3147241		Vent, Oven		Appelez-nous	-
19	307748		Screw, 10a X 1/2 (2)		Appelez-nous	-
20	98005642		Clip, Therm Bulb (2)   (Replaces: 313382)			Immediately	$ 74.64
21	WP307986		Hinge Pin (2)   (Replaces: 307986)				$ 11.78
22	307594		Ring, Retainer (2)		Appelez-nous	-
23	WP308126		Spring, Oven Door (2)   (Replaces: 308126)				$ 38.15
24	WP308125		Anchor, Spring (2)   (Replaces: 308125)				$ 10.94
25	310345		Switch, Door				$ 94.86
26	314195		Support, Tubing R.h.		Appelez-nous	-
26	314197		Support, Tubing L.h.		Appelez-nous	-
27	3148284		Seal, Door		Appelez-nous	-
28	3148605		Anchor, Plastic (2)		Appelez-nous	-
28	8273888A		Bracket, Anchor   (Replaces: 3148603)				$ 27.96
28	3148604		Screw (2)		Appelez-nous	-
29	660001		Ballast		Appelez-nous	-
29	3147001		Screw		Appelez-nous	-
29	685591		Ballast (alt.)		Appelez-nous	-
29	346772		Ballast (alt.)		Appelez-nous	-
30	3148906		Vent, Oven		Appelez-nous	-
31	3147076		Box, Vent		Appelez-nous	-
32	254217		Screw No.10x3/8		Appelez-nous	-
32	3147646		Support, Chassis		Appelez-nous	-
33	3149006		Shield, Box		Appelez-nous	-
33	98520		Screw (2)		Appelez-nous	-
34	310433		Insulation, Wrap		Appelez-nous	-
34	3171381		Box, Vent		Appelez-nous	-
34	WPW10208653		Insulation, Oven   (Replaces: 3149287)			Immediately	$ 49.92
	LIT3147391		Installation Instructions		Appelez-nous	-
	WP681414		Screw (2)   (Replaces: 343641)			Immediately	$ 7.07
	LIT884918		Repair Parts List		Appelez-nous	-
	LIT3149507		Cooking Guide		Appelez-nous	-
	LIT312913		Use & Care Guide (microwave)		Appelez-nous	-
	LIT3150585		Use & Care Guide (range)		Appelez-nous	-
	LIT311895		Cookbook		Appelez-nous	-
	LIT3150643		Tech Sheet		Appelez-nous	-
