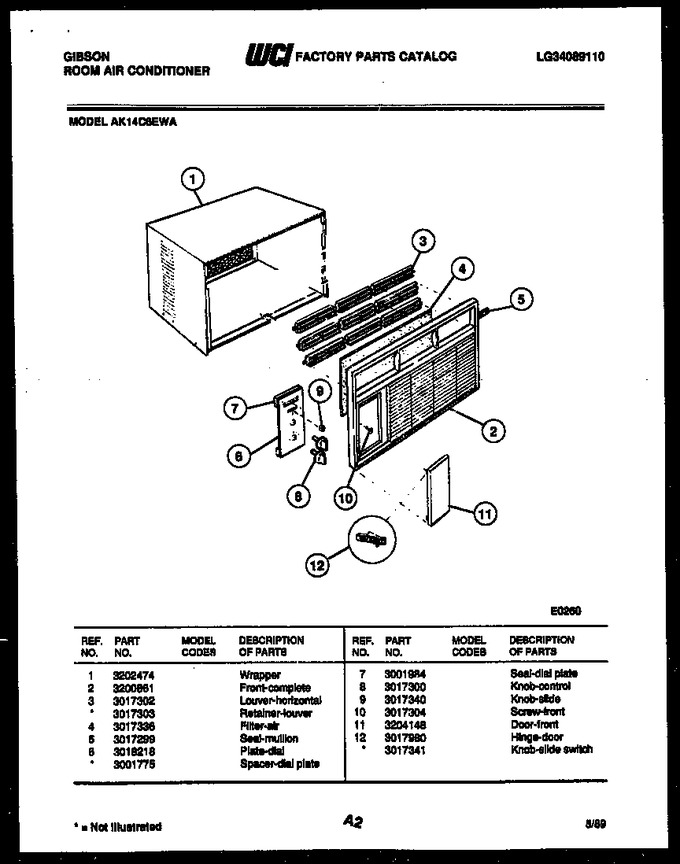

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3202474 | Wrapper |
|
- | |||||
| 2 | 3200861 | Front-complete |
|
- | |||||
| 3 | 3017302 | Louver-horizontal |
|
- | |||||
| 4 | 3017336 | Filter-air |
|
- | |||||
| 5 | 3017299 | Seal Mullion |
|
- | |||||
| 6 | 3018218 | Plate-dial |
|
- | |||||
| 7 | 3001984 | Seal-dial Plate |
|
- | |||||
| 8 | 3017300 | Knob-control |
|
- | |||||
| 9 | 3017340 | Knob-slide |
|
- | |||||
| 10 | 3017304 | Screw-front |
|
- | |||||
| 11 | 3204148 | Door - Front |
|
- | |||||
| 12 | 3017980 | Hinge-door |
|
- | |||||
| *15334 | 3017341 | Knob - Slide, Switch |
|
- | |||||
| 3A | 3017303 | Retainer-louver (non-illustrated) |
|
- | |||||
| 6A | 3001775 | Spacer-dial Plate, ( Non-illustrated) |
|
- |
