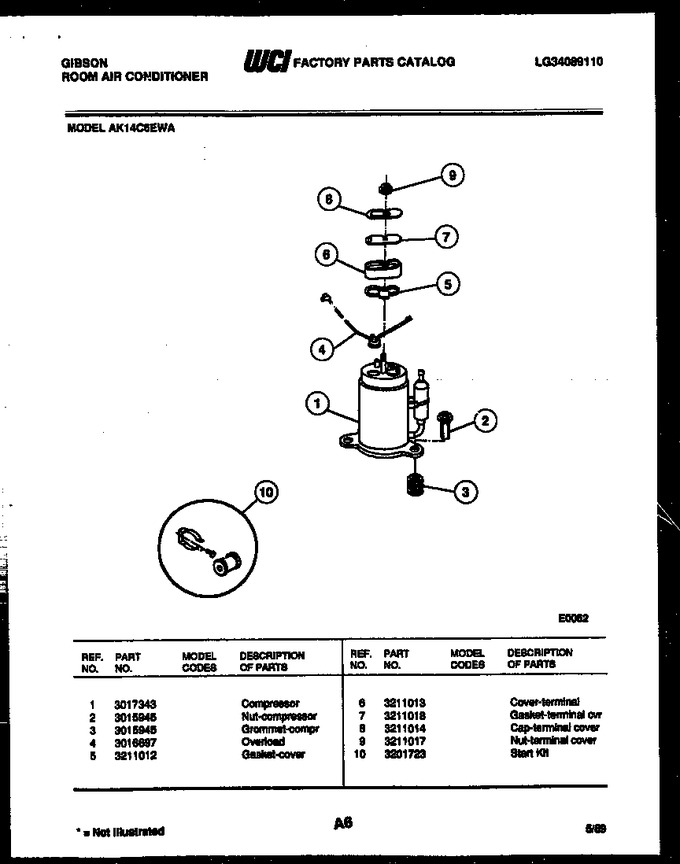

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3017343 | Compressor |
|
- | |||||
| 2 | 3015946 | Nut - Compressor |
|
- | |||||
| 3 | 3015945 | Grommet - Compr |
|
- | |||||
| 4 | 3016697 | Overload |
|
- | |||||
| 5 | 3211012 | Gasket-cover |
|
- | |||||
| 6 | 3211013 | Cover-terminal |
|
- | |||||
| 7 | 3211018 | Gasket - Terminal Cvr |
|
- | |||||
| 8 | 3211014 | Cap - Terminal Cover |
|
- | |||||
| 9 | 3211017 | Nut - Terminal Cover |
|
- | |||||
| 10 | 3201723 | Start Kit |
|
- |
