02 - Cabinet Parts
03 - Electrical Parts
04 - Air Handling Parts
05 - Unit Parts
06 - Compressor Parts
07 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

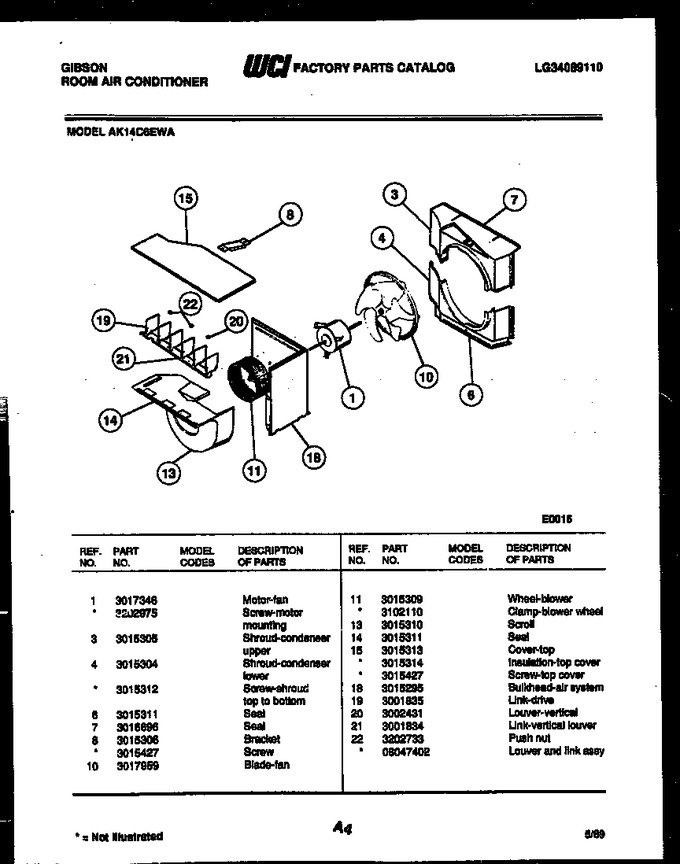

| 1 | 3017346 | Motor - Fan |
|
- | |||||
| 3 | 3015305 | Shroud-condenser Upper |
|
- | |||||
| 4 | 3015304 | Shroud-condenser Lower |
|
- | |||||
| 6 | 3015311 | Seal |
|
- | |||||
| 7 | 3016696 | Seal |
|
- | |||||
| 8 | 3015306 | Bracket |
|
- | |||||
| 10 | 3017959 | Blade-fan |
|
- | |||||
| 11 | 3015309 | Wheel-blower |
|
- | |||||
| 13 | 3015310 | Scroll |
|
- | |||||
| 14 | 3015311 | Seal |
|
- | |||||
| 15 | 3015313 | Cover-top |
|
- | |||||
| 18 | 3015295 | Bulkhead - Air System |
|
- | |||||
| 19 | 3001835 | Link-drive |
|
- | |||||
| 20 | 3002431 | Louver-vertical |
|
- | |||||
| 21 | 3001834 | Link-vertical Louver |
|
- | |||||
| 22 | 3202733 | Push Nut |
|
- | |||||
| *15340 | 08047402 | Louver And Link Assy |
|
- | |||||
| 11A | 3102110 | Clamp-blower Wheel (non-illustrated) |
|
- | |||||
| 15A | 3015314 | Insulation-top Cover (non-illustrated) |
|
- | |||||
| 15B | 3015427 | Screw-top Cover (non-illustrated) |
|
- | |||||
| 1A | 3202975 | Screw-motor Mounting (non-illustrated) |
|
- | |||||
| 4A | 3015312 | Screw-shroud Top To Bottom (non-illustrated) |
|
- | |||||
| 8A | 3015427 | Screw (non-illustrated) |
|
- |
