02 - Cabinet Parts


03 - Electrical Parts


04 - Air Handling Parts


05 - Unit Parts


06 - Compressor Parts


07 - Cabinet And Installation Parts

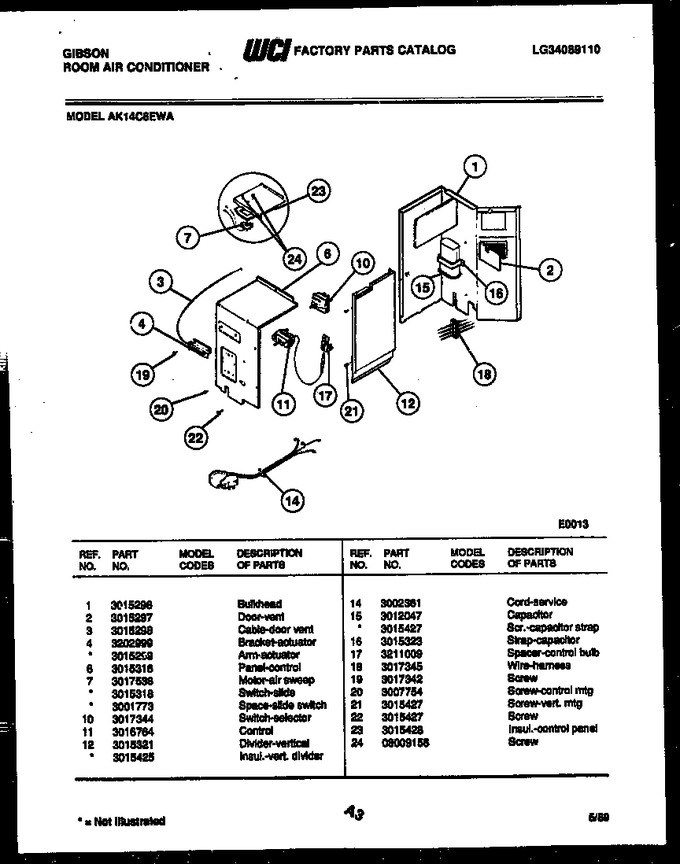

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3015296		Bulkhead		Appelez-nous	-
2	3015297		Door - Vent		Appelez-nous	-
3	3015298		Cable-door Vent		Appelez-nous	-
4	3202999		Bracket-actuator		Appelez-nous	-
6	3015316		Panel-control		Appelez-nous	-
7	3017538		Motor - Air Sweep		Appelez-nous	-
10	3017344		Switch - Selector				$ 166.42
11	3016764		Control		Appelez-nous	-
12	3015321		Divider - Vertical		Appelez-nous	-
14	3002361		Cord-service		Appelez-nous	-
15	3012047		Capacitor		Appelez-nous	-
16	3015323		Strap-capacitor		Appelez-nous	-
17	3211009		Spacer - Control Bulb		Appelez-nous	-
18	3017345		Wire-harness		Appelez-nous	-
19	3017342		Screw		Appelez-nous	-
20	3007754		Screw-control Mtg		Appelez-nous	-
21	3015427		Screw-vert. Mtg		Appelez-nous	-
22	3015427		Screw		Appelez-nous	-
23	3015428		Insul. - Control Panel		Appelez-nous	-
24	08009156		Screw		Appelez-nous	-
12A	3015425		Insul-vert. Divider (non-illustrated)		Appelez-nous	-
15A	3015427		Scr.-capacitor Strap (non-illustrated)		Appelez-nous	-
4A	3015299		Arm - Actuator (non-illustrated)		Appelez-nous	-
7A	3015318		Switch-slide (non-illustrated)		Appelez-nous	-
7B	3001773		Space - Slide Switch (non-illustrated)		Appelez-nous	-
