Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 3172194 Frame, Front Appelez-nous -
2 307985 Pin, Hinge Ear (2) Special Order $ 29.54

3 309111 Snubber, Door (2) Appelez-nous -
4 308306 Pushnut (2) Appelez-nous -
5 310770 Insulation Tray Appelez-nous -
6 311006 Side Wrapper (right Side) Appelez-nous -
6 WP488729 Screw (2)   (Replaces: 3148107) In-Stock Immediately $ 7.01

6 311009 Side Wrapper (left Side) Appelez-nous -
7 WP488729 Screw (4)   (Replaces: 3148107) In-Stock Immediately $ 7.01

7 311774 Support, Side Wrapper (4) Appelez-nous -
8 3148284 Gasket, Door Appelez-nous -
9 310693 Baffle, Top Appelez-nous -
9 WP488729 Screw   (Replaces: 3148107) In-Stock Immediately $ 7.01

10 310689 Side Trim (right Hand) Appelez-nous -
10 310685 Side Trim (left Hand) Appelez-nous -
10 WP488729 Side Trim (screw (8))   (Replaces: 3148107) In-Stock Immediately $ 7.01

11 311056 Screw (3) Appelez-nous -
11 3172548 Oven (30`` Pyro) Appelez-nous -
12 310713 Bracket, Oven Appelez-nous -
12 WP489069 Screw (6)   (Replaces: 693994) In-Stock Immediately $ 7.07

12 WP488729 Screw (2)   (Replaces: 3148107) In-Stock Immediately $ 7.01

15 328802 Hinge Ear, L.h. Appelez-nous -
15 328801 Hinge Ear, R.h. Appelez-nous -
16 WP308544 Screw (4)   (Replaces: 308544) In-Stock Immediately $ 6.98

16 310659 Plate, Side Panel (2) Appelez-nous -
17 329713 Channel Arm (2) Appelez-nous -
18 WP307986 Pin, Hinge (2)   (Replaces: 307986) Special Order $ 11.78

19 307594 Ring, Retainer (2) Appelez-nous -
20 3148442 Screw (2) Appelez-nous -
20 311256 Baffle, Insulation Appelez-nous -
21 WP308125 Anchor, Spring (2)   (Replaces: 308125) Special Order $ 10.94

22 WP308126 Spring, Oven Door (2)   (Replaces: 308126) Special Order $ 38.15

23 WP488729 Screw   (Replaces: 313638) In-Stock Immediately $ 7.01

23 3150319 Tube, Vent Appelez-nous -
24 WP488729 Screw (2)   (Replaces: 3148107) In-Stock Immediately $ 7.01

24 310839 Eliminator, Smoke Appelez-nous -
25 310662 Plate, Cover Appelez-nous -
25 WP488729 Screw (2)   (Replaces: 3148107) In-Stock Immediately $ 7.01

26 WP308180 Unit, Bake   (Replaces: 661170) Special Order $ 96.92

26 3150532 Screw (2) Appelez-nous -
27 WP660579 Unit, Broil   (Replaces: 660579) Special Order $ 140.80

27 3150532 Screw (4) Appelez-nous -
27 WP488729 Screw   (Replaces: 313638) In-Stock Immediately $ 7.01

28 W11594027 Oven Light Assy.   (Replaces: 3150505) In-Stock Immediately $ 78.31

28 308043 Screw (2) Appelez-nous -
29 8009 Bulb, Oven Light   (Replaces: 311255) In-Stock Immediately $ 16.80

30 WP488729 Screw (2)   (Replaces: 3148107) In-Stock Immediately $ 7.01

30 3148440 Sensor, Heat Appelez-nous -
33 WP488729 Screw (2)   (Replaces: 3148107) In-Stock Immediately $ 7.01

33 311056 Screw (2) Appelez-nous -
33 3183002 Latch Assembly Appelez-nous -
34 98106 Screw (2) Appelez-nous -
34 3183001 Safety Switch Appelez-nous -
35 309245 Insulator, Switch Appelez-nous -
36 WP488729 Screw (2)   (Replaces: 3148107) In-Stock Immediately $ 7.01

36 313035 Terminal, Shield Appelez-nous -
36 309258 Screw (2) Appelez-nous -
37 308422 Screw (4) Appelez-nous -
37 310825 Latch, Handle Appelez-nous -
38 3183294 Screw Appelez-nous -
38 3183293 Knob, Latch Appelez-nous -
39 4159372 Screw Appelez-nous -
39 310345 Switch, Door Special Order $ 94.86

42 3148669 Switch, Lock Appelez-nous -
43 3147864 Insulator, Switch Appelez-nous -
47 309029 Screw (3) Appelez-nous -
47 310668 Bottom Grill Special Order $ 556.11

52 311012 Cover, Rear Appelez-nous -
52 WP488729 Screw (12)   (Replaces: 3148107) In-Stock Immediately $ 7.01

53 WP8203546 Terminal Block   (Replaces: 258076) In-Stock Immediately $ 27.12

53 308043 Screw (2) Appelez-nous -
53 WP112432 Nut, (3)   (Replaces: 112432) Special Order $ 7.16

54 310458 Cover, Plate (2) Appelez-nous -
55 WP488729 Screw (2)   (Replaces: 3148107) In-Stock Immediately $ 7.01

55 311592 Angle, Support (2) Appelez-nous -
56 WP488729 Screw (6)   (Replaces: 3148107) In-Stock Immediately $ 7.01

56 3149542 Panel, Back Appelez-nous -
59 4396923 Pan, Broiler   (Replaces: 3147845) In-Stock Immediately $ 52.04

60 4396923 Grid, Pan   (Replaces: 3147563) In-Stock Immediately $ 52.04

61 308173 Rack, Oven Appelez-nous -
62 308172 Rack, Oven (offset) Appelez-nous -
63 3149328 Insulation, Top Appelez-nous -
63 311982 Coverplate (2) Appelez-nous -
63 WP488729 Screw (2)   (Replaces: 313638) In-Stock Immediately $ 7.01

63 3150532 Screw (2) Appelez-nous -
63 310433 Insulation, Wrap Appelez-nous -
63 310434 Insulation, Oven Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

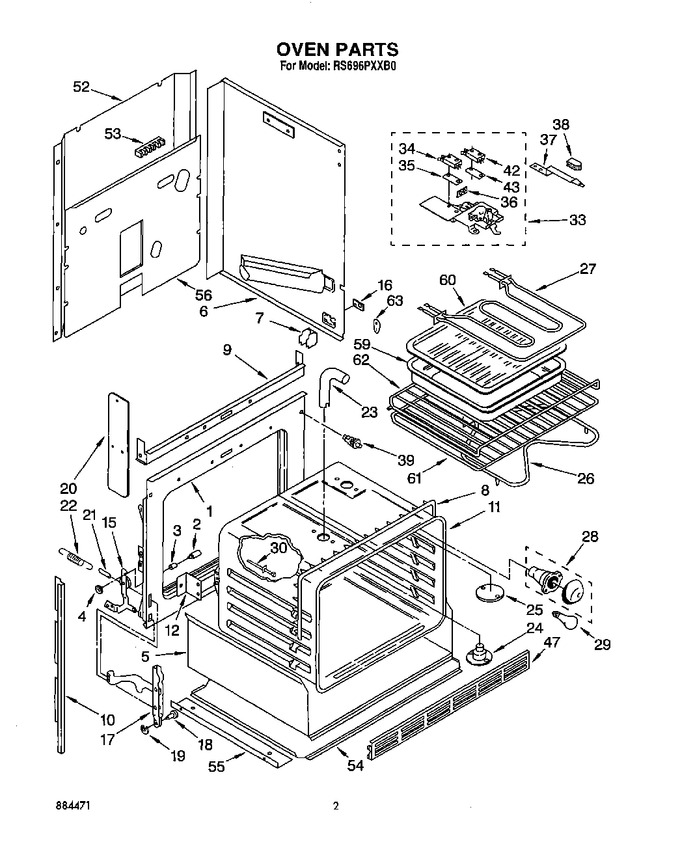

Diagram for RS696PXXB0
