02 - Oven
03 - Control Panel
04 - Oven Door
05 - Wiring Harness, Lit/optional

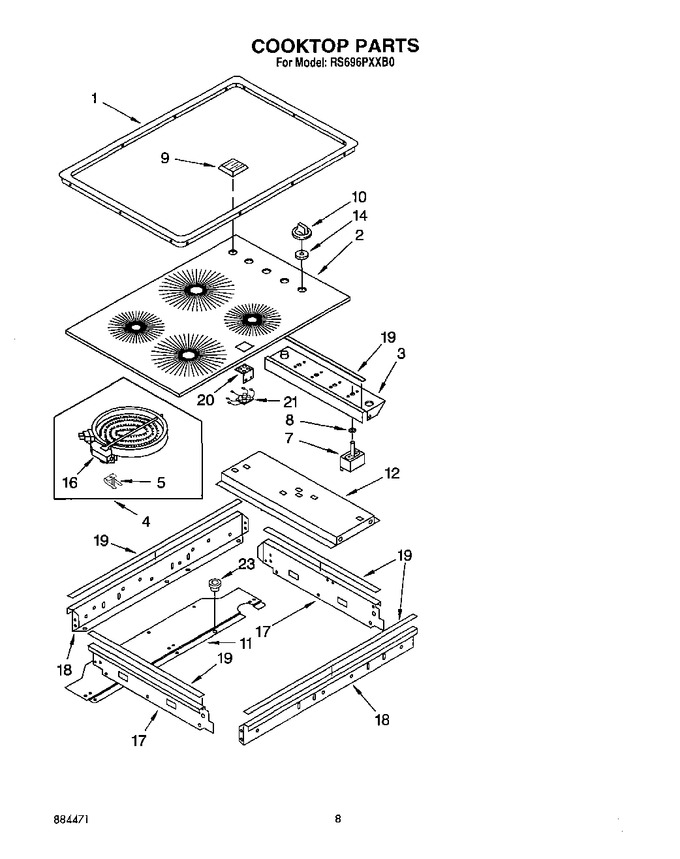

06 - Cooktop
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP308685 | Screw (14) (Replaces: 3182346) |
|
Immediately | $ 7.08 | ||||
| 1 | 3150305 | Trim Ring, Cooktop |
|
- | |||||
| 2 | 3150191 | Cooktop, Glass |
|
- | |||||
| 3 | 3150338 | Bracket, Switch Mounting |
|
- | |||||
| 4 | 3148825 | Element, Surface (1400w Left Rear) |
|
- | |||||
| 4 | 3148827 | Element, Surface (2100w Right Rear) |
|
- | |||||
| 4 | 3148828 | Element, Surface (2400w Left Front) |
|
- | |||||
| 4 | 3148826 | Element, Surface (1700w Right Front) |
|
- | |||||
| 5 | 3149191 | Spring Locator (8) |
|
$ 9.45 | |||||
| 5 | WP486754 | Screw (8) (Replaces: 246119) |
|
$ 6.75 | |||||
| 7 | 3148958 | Switch, Infinite (use W/2400w Left Front Burner) |
|
- | |||||
| 7 | 3148949 | Switch, Infinite (use W/1700w Right Front Burner) |
|
$ 67.77 | |||||
| 7 | W10900107 | Switch, Infinite (use W/1400w Left Rear Burner) (Replaces: 3148962) |
|
Immediately | $ 51.87 | ||||
| 7 | 3148950 | Switch, Infinite (use W/2100w Right Rear Burner) |
|
$ 28.56 | |||||
| 7 | 155023 | Switch, Infinite (screw (8)) |
|
Immediately | $ 7.91 | ||||
| 8 | 309839 | Seal, Switch Cover |
|
- | |||||
| 9 | 3147037 | Cover, Vent |
|
- | |||||
| 10 | 3150374 | Knob, Control (4) |
|
- | |||||
| 11 | WP488729 | Screw (3) (Replaces: 3148107) |
|
Immediately | $ 7.01 | ||||
| 11 | 3147566 | Cover, Top Rear |
|
- | |||||
| 12 | WP488729 | Screw (4) (Replaces: 3148107) |
|
Immediately | $ 7.01 | ||||
| 12 | 3150316 | Support, Element |
|
- | |||||
| 14 | 3182435 | Seal, Switch (4) |
|
- | |||||
| 16 | 3149126 | Switch, Limit (use W/3148826 Element) |
|
- | |||||
| 16 | 3149123 | Switch, Limit (use W/3148827 Element) |
|
- | |||||
| 16 | 3149125 | Switch, Limit (use W/3148825 Element) |
|
- | |||||
| 16 | 3149127 | Switch, Limit (use W/3148828 Element) |
|
- | |||||
| 17 | 3150323 | Rail, Side (right Hand) |
|
- | |||||
| 17 | 3150324 | Rail, Side (left Hand) |
|
- | |||||
| 18 | WP488729 | Screw (4) (Replaces: 3148107) |
|
Immediately | $ 7.01 | ||||
| 18 | 3181646 | Clip, ``u Nut`` |
|
- | |||||
| 18 | 3183380 | Rail, Front & Rear |
|
- | |||||
| 19 | 3181645 | Seal, Silicone (small (3)) |
|
- | |||||
| 19 | 3181644 | Seal, Silicone (large (2)) |
|
- | |||||
| 20 | WP488729 | Screw (2) (Replaces: 3148107) |
|
Immediately | $ 7.01 | ||||
| 20 | 3150321 | Bracket, Hot Surface Indicator |
|
- | |||||
| 21 | 3150304 | Lamp, Hot Surface Indicator |
|
- | |||||
| 23 | 258109 | Bushing |
|
- |
