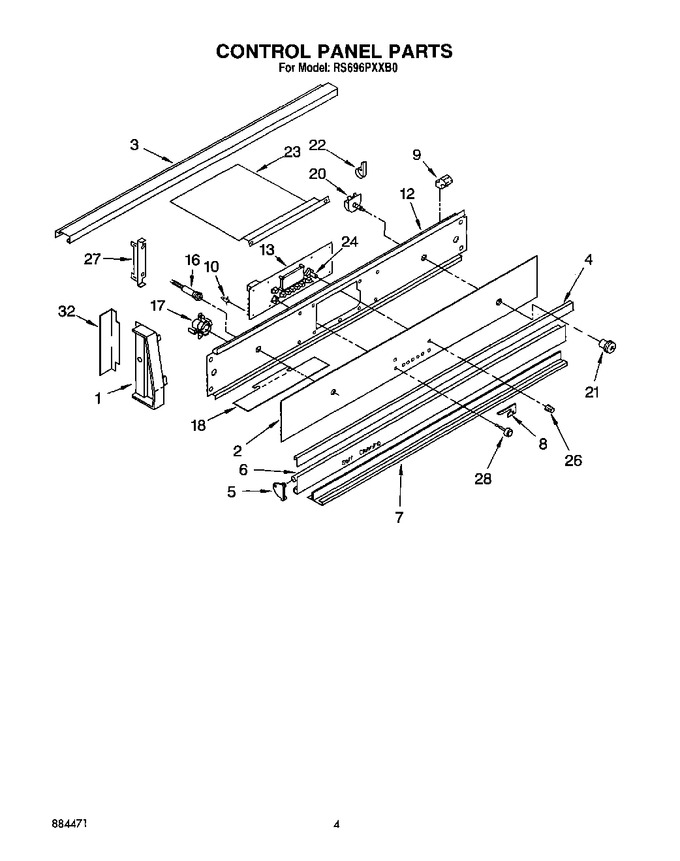

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3148445		End Cap (left Hand)		Appelez-nous	-
1	3148444		End Cap (right Hand)		Appelez-nous	-
2	3150154		Glass, Control Panel		Appelez-nous	-
3	342043		Screw (4)		Appelez-nous	-
3	3148616		Rail, Top		Appelez-nous	-
4	3181929		Trim, Center		Appelez-nous	-
5	3148697		Trim, Vent Door (right Hand)		Appelez-nous	-
5	3148698		Trim, Vent Door (left Hand)		Appelez-nous	-
6	3148617		Door, Vent		Appelez-nous	-
6	342043		Screw (2)		Appelez-nous	-
7	3148618		Trim, Bottom		Appelez-nous	-
7	98520		Screw (4)		Appelez-nous	-
8	3149142		Shield, Air		Appelez-nous	-
8	98520		Screw		Appelez-nous	-
9	3149882		Retainer, Glass (4)		Appelez-nous	-
10	3181558		Support, Circuit Board		Appelez-nous	-
12	3150535		Bracket, Control		Appelez-nous	-
13	3148560		Electronic Range Control		Appelez-nous	-
16	3150241		Light, Indicator		Appelez-nous	-
17	98520		Screw (4)		Appelez-nous	-
17	WP313808		Screw (2)   (Replaces: 313808)				$ 6.84
17	3149649		Thermostat, Oven		Appelez-nous	-
18	3181682		Shield, Control		Appelez-nous	-
20	312796		Washer		Appelez-nous	-
20	98520		Screw (4)		Appelez-nous	-
20	312581		Switch, Oven Light		Appelez-nous	-
21	313030		Bezel Switch		Appelez-nous	-
22	98520		Screw, 8a X 5/16		Appelez-nous	-
22	WP308605		Strain, Relief   (Replaces: 308605)				$ 10.08
23	3149419		Shield, Heat		Appelez-nous	-
23	98520		Screw (2)		Appelez-nous	-
24	3149321		Shaft, Bit Generator		Appelez-nous	-
26	313523		Knob, Bit Generator				$ 13.66
27	3148634		Bracket, Control Panel (2)		Appelez-nous	-
27	98520		Screw (4)		Appelez-nous	-
28	313958		Button Assy. (8)		Appelez-nous	-
32	3149900		Trim, End Cap		Appelez-nous	-
