02 - Oven
03 - Control Panel
04 - Oven Door

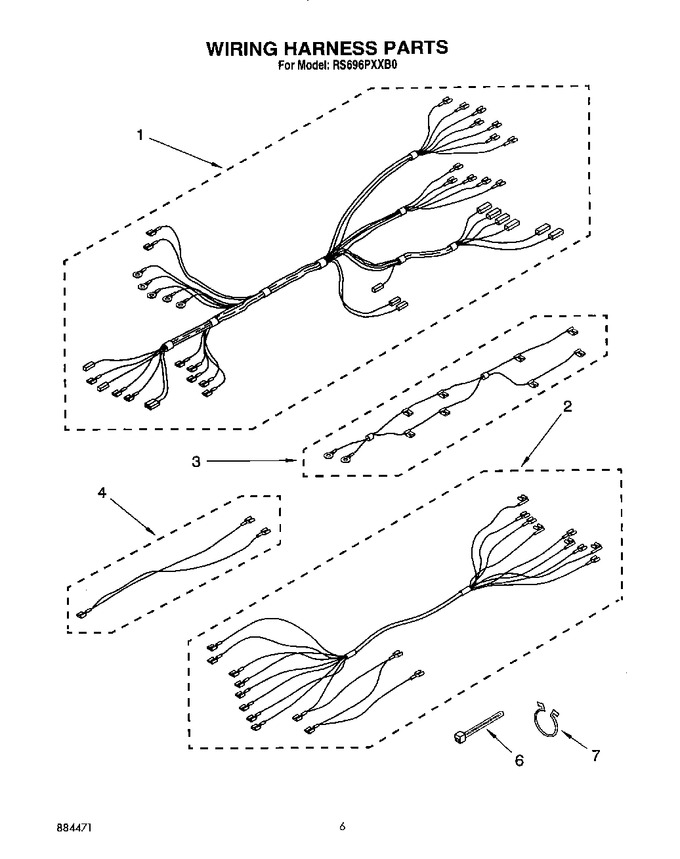

05 - Wiring Harness, Lit/optional
06 - Cooktop
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3149976 | Harness, Wire (main) |
|
- | |||||
| 2 | 3150311 | Harness, Wire (surface Elements) |
|
- | |||||
| 3 | 3149966 | Harness, Wire (infinite Switch) |
|
- | |||||
| 4 | 3150242 | Jumper, Thermo Disk |
|
- | |||||
| 6 | WPW10339879 | Tie, Cable (Replaces: 535183) |
|
$ 7.11 | |||||
| 7 | 16515 | Clip, Harness (2) (Replaces: 313438) |
|
$ 17.60 | |||||
| 7 | 307748 | Screw (2) |
|
- | |||||
| 7 | 308504 | Screw (2) |
|
- | |||||
| 3171507 | Mounting Hardware |
|
- | ||||||
| CERAMABRYTE | Cleaner, Glass (Replaces: 814009) |
|
Immediately | $ 9.95 | |||||
| LIT3149971 | Tech Sheet |
|
- | ||||||
| LIT3147387 | Installation Instructions |
|
- | ||||||
| LIT3149930 | Use & Care Guide |
|
- | ||||||
| LIT313358 | Cooking Guide |
|
- | ||||||
| LIT884471 | Repair Parts List |
|
- | ||||||
| 242828 | Wire (12 Ga. 150 C Black) |
|
- | ||||||
| 242821 | Wire (14 Ga. 150 C Blue) |
|
- | ||||||
| 242822 | Wire (14 Ga. 150 C Brown) |
|
- | ||||||
| 242830 | Wire (14 Ga. 200 C Brown) |
|
- | ||||||
| 242823 | Wire (14 Ga. 150 C Green) |
|
- | ||||||
| 242831 | Wire (14 Ga. 200 C Red) |
|
$ 342.23 | ||||||
| 242824 | Wire (14 Ga. 150 C Orange) |
|
- | ||||||
| 242829 | Wire, Red 12 Ga. 150~c |
|
- | ||||||
| 242826 | Wire, White 14 Ga. 150~c |
|
- | ||||||
| 242827 | Wire (14 Ga. 150 C Yellow) |
|
- | ||||||
| 242832 | Wire, Yellow 14 Ga. 200~c |
|
- | ||||||
| 8212471 | Touch-up (Replaces: 242756) |
|
Immediately | $ 74.76 | |||||
| 261582 | Grease |
|
- | ||||||
| 241430 | Foil, Aluminum Oven (18`` X 25`) |
|
$ 20.65 | ||||||
| 242820 | Wire (14 Ga. 150 C Black) |
|
- |
