Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 786739 Hinge, Oven Door (left Side) Appelez-nous -
1 786374 Hinge, Oven Door (right Side) Appelez-nous -
2 WP308685 Screw (4)   (Replaces: 786757) In-Stock Immediately $ 7.08

2 WP965173 Screw, 8 X 3/8 (11)   (Replaces: 786745) In-Stock Immediately $ 9.65

2 WP488130 Nut (4)   (Replaces: 786272) Special Order $ 6.27

2 4315131 Liner, Oven Door Appelez-nous -
2 786755 Screw, 8-32 X 5/8 (4) Appelez-nous -
2 WP965173 Screw, 8a X 3/8 (6)   (Replaces: 786756) In-Stock Immediately $ 9.65

3 786813 Runner (r.h.) Appelez-nous -
3 786814 Runner (l.h.) Appelez-nous -
4 786408 Handle Appelez-nous -
5 786410 Spacer, Handle (2) Appelez-nous -
7 786417 Frame Appelez-nous -
8 786419 Panel, Black Glass Appelez-nous -
10 786420 Trim, Glass Appelez-nous -
13 786424 Retainer, Insulation Appelez-nous -
14 786425 Bracket, Glass Support (4) Appelez-nous -
16 786426 Clip, Speed (14) Appelez-nous -
17 4179237 Bumper, Window (5) Appelez-nous -
19 786428 Pin, Hinge (2) Appelez-nous -
20 786429 Window Assembly Appelez-nous -
22 WPW10208653 Insulation, Door   (Replaces: 786806) In-Stock Immediately $ 49.92

23 4179236 Retainer, Window (4) Appelez-nous -
25 786671 Plate, Latch (2) Appelez-nous -
26 786432 Gasket Assembly Appelez-nous -
28 4179232 Wrapper, Storage Drawer Appelez-nous -
29 786520 Panel, Drawer (toast) Appelez-nous -
29 786517 Panel, Drawer (black) Appelez-nous -
29 786519 Panel, Drawer (platinum) Appelez-nous -
29 786522 Panel, Drawer (white) Appelez-nous -
29 786521 Panel, Drawer (almond) Special Order $ 45.18

31 4315117 Liner, Door Panel Appelez-nous -
32 786526 Bumper, Rubber (2) Appelez-nous -
36 786807 Rack, Literature Appelez-nous -
40 786422 Baffle, Air Appelez-nous -
41 786524 Glass, Black Appelez-nous -
42 786525 Frame, Glass Appelez-nous -

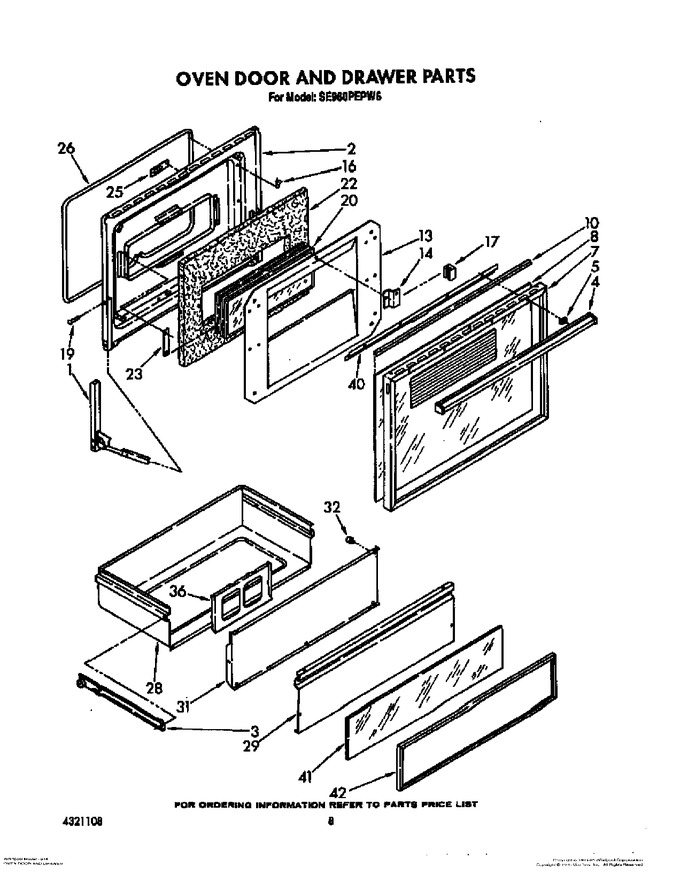

    View Diagram in Separate Window     Print Icon   Print Part List
