Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 4179233 Burner, Ultra Ray Broiler Appelez-nous -
2 786543 Bracket, Ignitor Appelez-nous -
4 4179235 Bracket, Burner Mounting Appelez-nous -
5 786665 Pipe Plug, 1/8 Npt Appelez-nous -
7 786308 Spud, Orifice (natural Gas No. 50) Appelez-nous -
7 786309 Spud, Orifice (lp Gas No. 58) Appelez-nous -
8 786547 Tubing (inlet To Gas Valve) Appelez-nous -
10 786548 Orifice & Tubing Assembly (gas Valve To Ultra Ray Burner) Appelez-nous -
11 786549 Hood & Tubing Assembly (gas Valve To Lower Oven Burner) Appelez-nous -
13 786550 Tubing (inlet To Manifold) Appelez-nous -
14 786310 Valve, Dual Gas Appelez-nous -
16 786554 Manifold Appelez-nous -
17 786311 Valve, Top Burner (tri-set) Appelez-nous -
19 786556 Fitting (2) Appelez-nous -
20 786312 Valve, Shut-off Appelez-nous -
22 786557 Inlet Appelez-nous -
23 786313 Regulator, Pressure Appelez-nous -
25 786314 Oven Burner, Lower Appelez-nous -
26 786315 Top Burner, Front (2) Appelez-nous -
28 786316 Top Bruner, R.r. Appelez-nous -
29 786317 Top Burner, L.r. Appelez-nous -
31 786559 Knob, Top Burner (4) Appelez-nous -
32 4321111 Knob, Oven Control Appelez-nous -
34 786562 Knob, Selector Appelez-nous -
35 786565 Nut, Compression 3/8 Appelez-nous -
37 786566 Sleeve, Compressor 3/8 Appelez-nous -
38 786551 Union Appelez-nous -
40 786552 Tubing (union To Gas Valve) Appelez-nous -
41 4315107 Tubing (gas Valve Upper Orifice) Appelez-nous -
43 786558 Spring, Thermostat Bulb Appelez-nous -
44 786563 Bracket, Mounting Appelez-nous -
46 786564 Valve, Upper Appelez-nous -
47 786567 Burner, Upper Appelez-nous -
49 786569 Orifice L.p. Appelez-nous -
49 786568 Orifice, Universal Appelez-nous -
52 786546 Tubing (inlet To Upper-oven Union) Appelez-nous -
53 4157867 Nut Special Order $ 46.58


    View Diagram in Separate Window     Print Icon   Print Part List

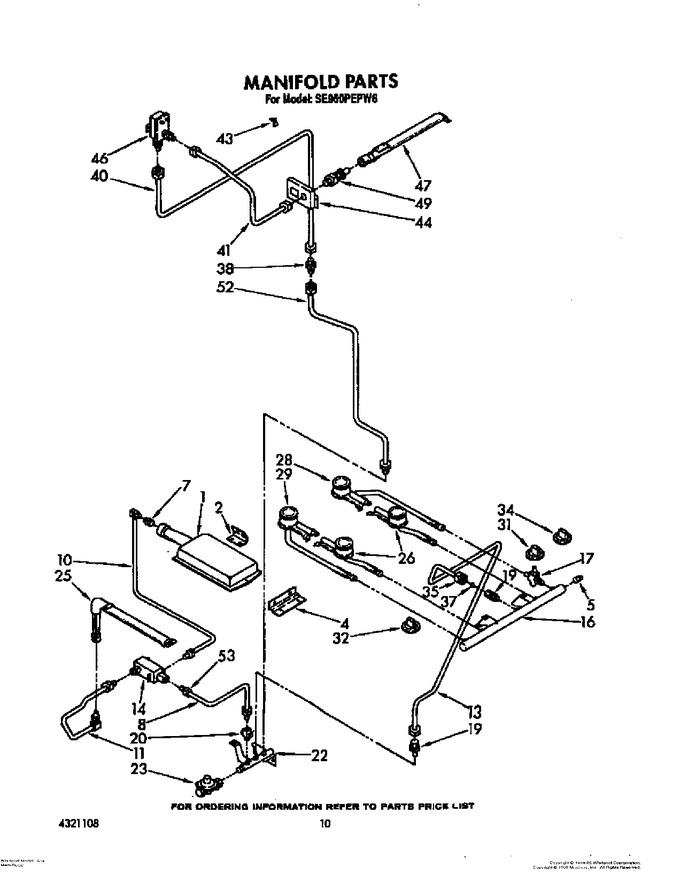

Diagram for SE960PEPW6
