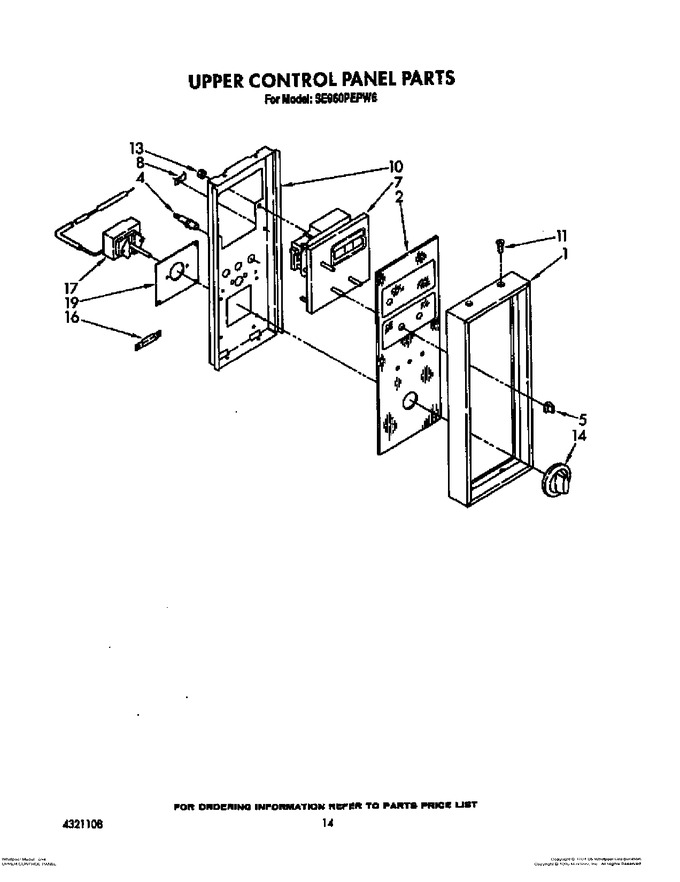

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 786377 | Frame |
|
- | |||||
| 2 | 786379 | Glass, Panel |
|
- | |||||
| 4 | 786433 | Light Indicator |
|
- | |||||
| 5 | 786434 | Knob, Clock |
|
- | |||||
| 7 | 786435 | Clock |
|
- | |||||
| 8 | 786436 | Clip, Bracket |
|
- | |||||
| 10 | 786437 | Bracket, C.p. |
|
- | |||||
| 11 | 786438 | Screw |
|
- | |||||
| 13 | 786439 | Nut, Hex |
|
- | |||||
| 14 | 786440 | Knob, Thermostat |
|
- | |||||
| 16 | 786441 | Bracket, Mounting |
|
- | |||||
| 17 | 786442 | Thermostat |
|
- | |||||
| 19 | 786443 | Plate, Mounting |
|
- | |||||
| LIT786296 | Guide, Use & Care |
|
- | ||||||
| LIT4321108 | List, Repair Parts |
|
- | ||||||
| LIT786302 | Guide, Cooking |
|
- | ||||||
| LIT4179329 | Instructions, Installation |
|
- |
