Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 786460 Panel, Surface Light Appelez-nous -
2 786461 Trim, Flue Appelez-nous -
4 4315134 Bottom, Oven Appelez-nous -
5 786463 Trim Strip (right Side) Appelez-nous -
5 786464 Trim Strip (left Side) Appelez-nous -
7 786466 Trim, Upper Oven Support (left Side) Appelez-nous -
7 786465 Trim, Upper Oven Support (right Side) Appelez-nous -
8 786467 Channel, Support (right Side) Appelez-nous -
8 786468 Channel, Support (left Side) Appelez-nous -
10 786469 Plate, Door Strike Appelez-nous -
11 4315102 Lower Trim, Splashplate Appelez-nous -
13 786471 Trim, Rear Appelez-nous -
14 786472 Glass, Splashplate Appelez-nous -
16 786473 Panel, Decorative Appelez-nous -
17 4315138 Panel, Bottom Appelez-nous -
19 4315140 Guide, Door Appelez-nous -
20 786477 Panel, Side (right Side) (platinum) Appelez-nous -
20 786479 Panel, Side (right Side) (almond) Appelez-nous -
20 786480 Panel, Side (right Side) (white) Appelez-nous -
20 786478 Panel, Side (right Side) (toast) Appelez-nous -
22 786485 Panel, Side (left Side) (white) Appelez-nous -
22 786484 Panel, Side (left Side) (almond) Appelez-nous -
22 786483 Panel, Side (left Side) (toast) Appelez-nous -
22 786482 Panel, Side (left Side) (platinum) Appelez-nous -
23 4315103 Retainer, Side Insulation Appelez-nous -
25 786487 Strike, Oven Door Appelez-nous -
26 786488 Rack, Oven Appelez-nous -
28 786489 Trim, Glass Appelez-nous -
29 786490 Cover Plate, Front Frame Appelez-nous -
31 786491 Hinge, Bottom Appelez-nous -
32 786492 Hinge, Top Appelez-nous -
34 786493 Panel, Top Appelez-nous -
35 786494 Cover, Convenience Outlet Appelez-nous -
37 786495 Backplate Appelez-nous -
38 4315137 Panel, Side (left Side) Appelez-nous -
38 4315136 Panel, Side (right Side) Appelez-nous -
40 4315135 Panel, Back Appelez-nous -
41 786499 Heat Shield, Splashplate Appelez-nous -
43 786500 Retainer, Insulation Appelez-nous -
44 786455 Rear Cover Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

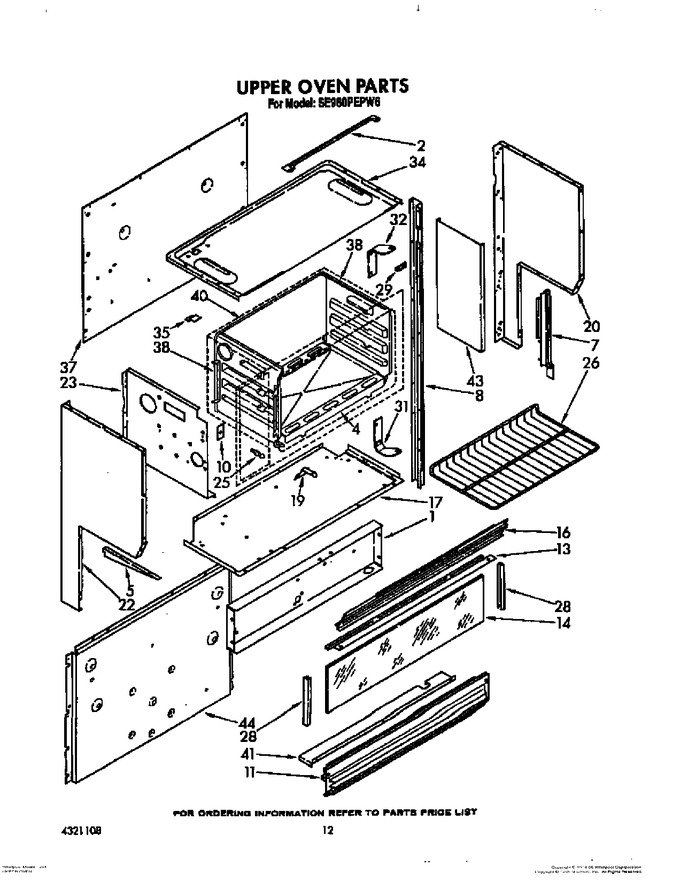

Diagram for SE960PEPW6
