Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 58530 Assy,base-complete Appelez-nous -
2 56118 Assy, Exhaust Duct Appelez-nous -
3 25724 Hex Head Screw Appelez-nous -
4 58524W Cabinet, White Appelez-nous -
4 58524L Cabinet, Almond Appelez-nous -
5 56565 Rivet,pop Appelez-nous -
6 58537 Vapor Barrier Appelez-nous -
7 58548 Plate,control Top Appelez-nous -
8 WP90767 Screw,8b-18 X 3/8 Ind   (Replaces: 23962) In-Stock Immediately $ 7.04

9 Y00000000 See Note Washer Outer Cabinet Appelez-nous -
10 30215 Gasket Appelez-nous -
11 20267 Screw,10-24 X 3/8 Round Appelez-nous -
12 03815 Lockwasher,no.10 Ext Shk Special Order $ 3.34

13 Y00000000 See Note Ground Wire, Green Appelez-nous -
14 M0282009 Locknut   (Replaces: 23951) Special Order $ 12.06

15 70135 Screw,10-24 X 1/2 Semsxreplace Special Order $ 4.74

16 WP27001200 Hex Head Scrw   (Replaces: 25723) Special Order $ 6.91

17 51784 Screw,10b-16 X 1/2 Hex Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

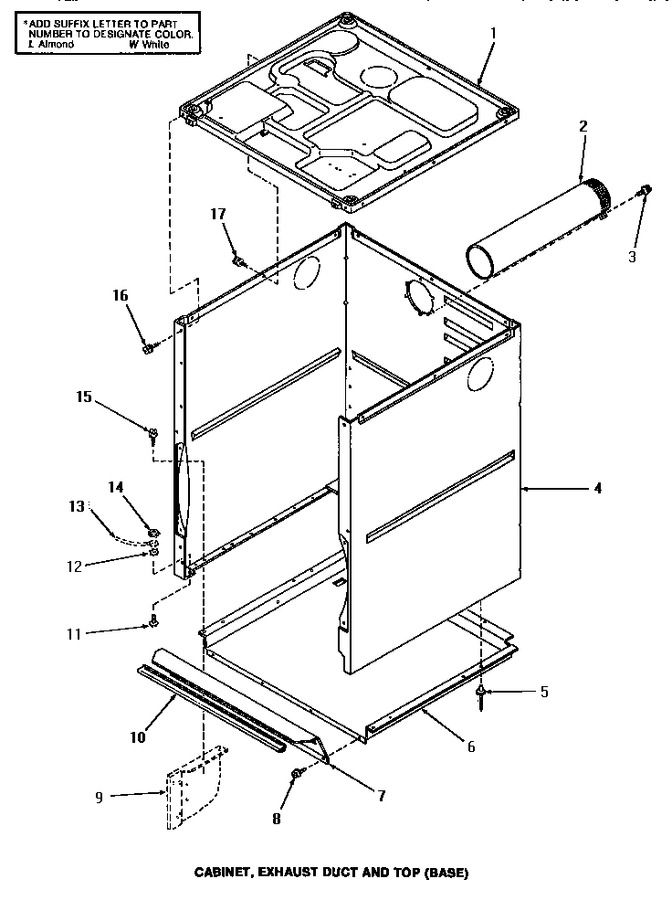

Diagram for UE8031
