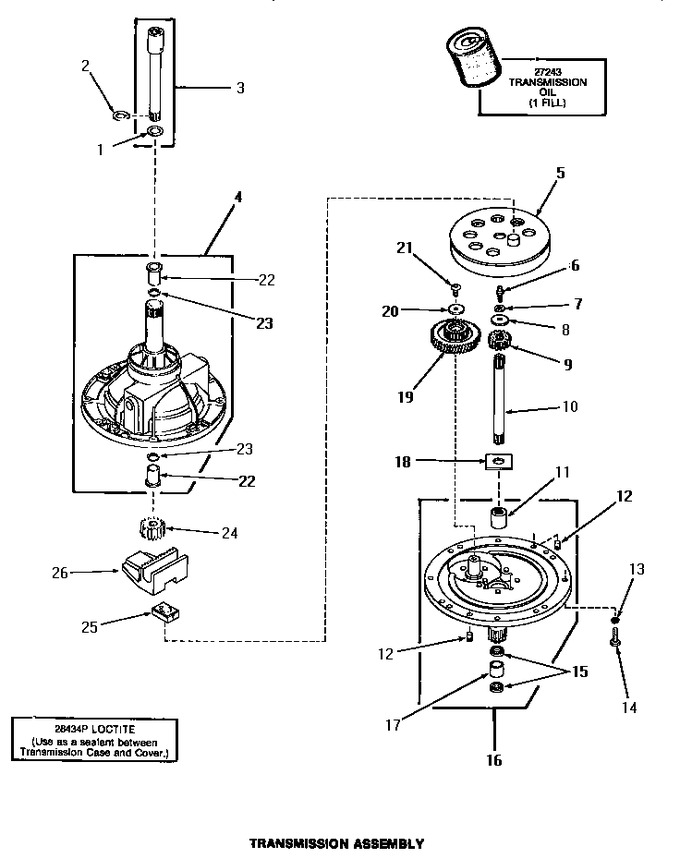

24 - Transmission Assy


25 - Transmission Assy & Balance Ring


26 - Washer Outer Cabinet & Leveling Legs


27 - Wire Harnesses & Power Cord (dryer)


28 - Wire Harnesses & Power Cord (washer)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y00000000		See Note Shim Washer -- (see Note)		Appelez-nous	-
2	27197		Ring,retaining				$ 6.95
3	368P3		Kit,coupling & Shaft		Appelez-nous	-
4	28435		Transmission Case Assembly		Appelez-nous	-
5	DE81-05916A		Assy,gear & Stud   (Replaces: 26577)				$ 65.22
6	27030		Screw,1/4-20 Special		Appelez-nous	-
7	21456		Lockwasher,1/4 Intshkp				$ 154.99
8	26509		Washer				$ 6.95
9	Y29160		Pinion,drive		Appelez-nous	-
10	27081		Shaft,input		Appelez-nous	-
11	27026		Cover Transmission		Appelez-nous	-
12	27172		Pin,dowel		Appelez-nous	-
13	02431		Lockwasher,1/4 Ext Shk		Appelez-nous	-
14	20253		Screw,cap-1/4-20 X 1``		Appelez-nous	-
15	Y28114		Seal		Appelez-nous	-
16	30122		Transmission Cover Assembly		Appelez-nous	-
17	27022		Bearing		Appelez-nous	-
18	27016		Washer		Appelez-nous	-
19	29161		Gear,reduction		Appelez-nous	-
20	29260		Washer				$ 2.50
21	29273		Screw,1/4-20 X 3/8		Appelez-nous	-
22	27021		Bearing		Appelez-nous	-
23	Y28114		Seal		Appelez-nous	-
24	RO81		Pinion,agitator   (Replaces: 27003)			Immediately	$ 27.76
25	26493		Slide			Immediately	$ 8.56
26	Y27001		Rack		Appelez-nous	-
NI	27243		Oil,cw Transmission F-		Appelez-nous	-
NI	28434P		Loctite		Appelez-nous	-
