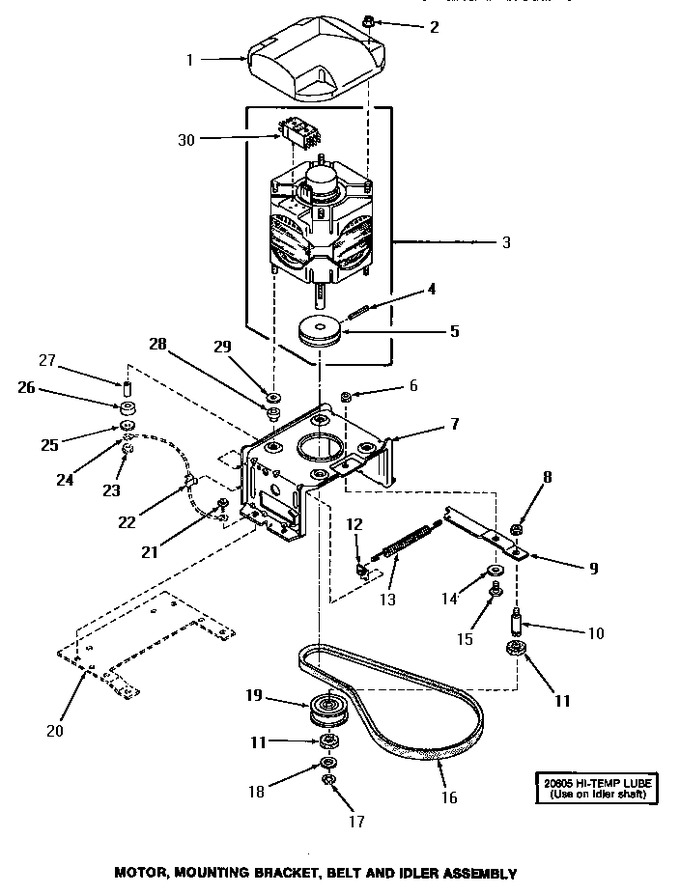

14 - Motor, Mtg Bracket, Belt & Idler Assy


15 - Outer Tub, Cover & Pressure Hose


16 - Pump Assy, Hoses & Siphon Break Kit


17 - Rear Blkhd, Felt Seal & Cylinder Roller


18 - Short Post Drive (addition)


19 - Side Panels, Front Panel & Inner Base


20 - Solenoid & Lock Assemblies


21 - Terminal Block & Bracket


22 - Terminals (dryer)


23 - Terminals (washer)


24 - Transmission Assy


25 - Transmission Assy & Balance Ring


26 - Washer Outer Cabinet & Leveling Legs


27 - Wire Harnesses & Power Cord (dryer)


28 - Wire Harnesses & Power Cord (washer)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	27136		Shield,motor		Appelez-nous	-
2	27201		Locknut		Appelez-nous	-
3	35485P		Assy,motor & Pulley Xreplace   (Replaces: 29892)				$ 659.77
4	23750		Pin,roll		Appelez-nous	-
5	27171		Pulley,motor		Appelez-nous	-
6	WPW10139757		Nut, Hex Jam 1/4-20l   (Replaces: 52566)				$ 7.16
7	30308		Sub 35187		Appelez-nous	-
8	56156		Locknut   (Replaces: 28803)				$ 6.95
9	29705		Idler Lever		Appelez-nous	-
10	28802P		Shaft,idler   (Replaces: 28802)				$ 14.59
11	Y29443		Washer,felt		Appelez-nous	-
12	28849		Clip,spring		Appelez-nous	-
13	28807		Spring		Appelez-nous	-
14	81392		Washer			Immediately	$ 6.95
15	27229		Shoulder Bolt			Immediately	$ 6.95
16	28808		Belt,agitate & Spin			Immediately	$ 22.09
17	WP23748		Ring, Retaining   (Replaces: 23748)			Immediately	$ 10.75
18	WP233520		Washer, 501 Id X3/4 Odx   (Replaces: 52549)			Immediately	$ 7.16
19	28800P		Wheel,idler   (Replaces: 28800)				$ 12.66
20	Y00000000		See Note Motor Mounting Plate		Appelez-nous	-
21	26592		Hex Head Screw		Appelez-nous	-
22	Y00161		Ground Clip		Appelez-nous	-
23	23604		Nut,hex 10-32 Lock		Appelez-nous	-
24	Y00000000		See Note Ground Wire, Green		Appelez-nous	-
25	03888		Washer		Appelez-nous	-
26	01953		Washer,lower Motor Mou		Appelez-nous	-
27	27181		Spacer,motor		Appelez-nous	-
28	01952A		Mounting,rubber		Appelez-nous	-
29	03888		Washer		Appelez-nous	-
30	24139		Switch,motor		Appelez-nous	-
30	24142		Switch,motor		Appelez-nous	-
NI	20606		Hi-temp Lube		Appelez-nous	-
