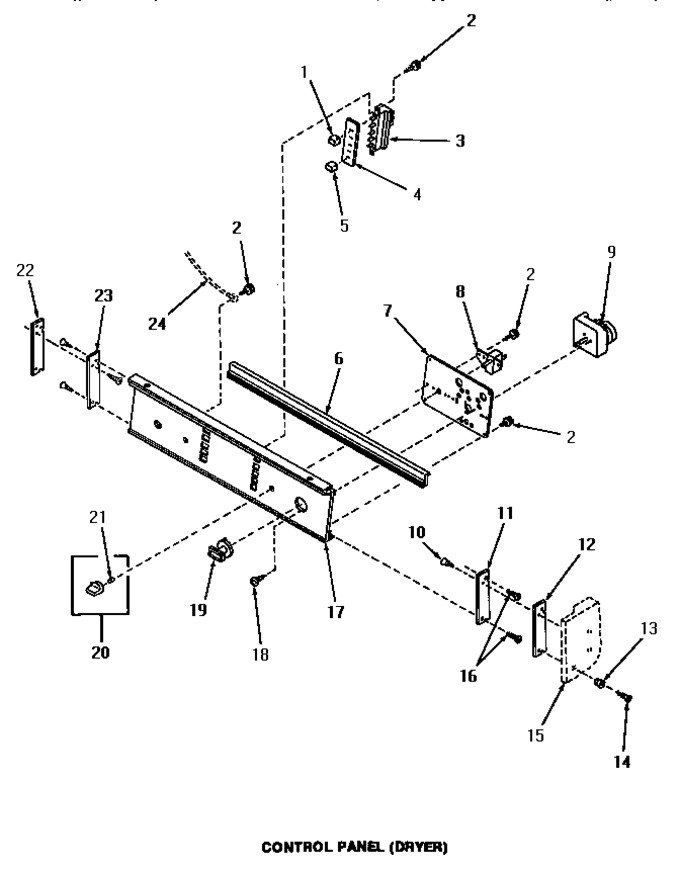

06 - Control Panel (dryer)


07 - Dryer Heater Box


08 - Dryer Loading Door, Front Panel & Seals


09 - Fr Blkhd, Air Duct, Felt Seal & Cylinder


10 - Inlet/fill Hose/back Fl Preventer & Brkt


11 - Lint Filter, Washtub & Hub


12 - Mixing Valve Assy


13 - Motor, Exhaust Fan & Belt


14 - Motor, Mtg Bracket, Belt & Idler Assy


15 - Outer Tub, Cover & Pressure Hose


16 - Pump Assy, Hoses & Siphon Break Kit


17 - Rear Blkhd, Felt Seal & Cylinder Roller


18 - Short Post Drive (addition)


19 - Side Panels, Front Panel & Inner Base


20 - Solenoid & Lock Assemblies


21 - Terminal Block & Bracket


22 - Terminals (dryer)


23 - Terminals (washer)


24 - Transmission Assy


25 - Transmission Assy & Balance Ring


26 - Washer Outer Cabinet & Leveling Legs


27 - Wire Harnesses & Power Cord (dryer)


28 - Wire Harnesses & Power Cord (washer)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	29910		Button,control-dark Br		Appelez-nous	-
2	WP90767		Screw,8b-18 X 3/8 Ind   (Replaces: 23962)			Immediately	$ 7.04
3	30108		Switch,5 Position		Appelez-nous	-
4	30039		Cover, Switch		Appelez-nous	-
5	28778		Button,control-beige		Appelez-nous	-
6	29855		Gasket,shield		Appelez-nous	-
7	29808		Plate,switch Mount		Appelez-nous	-
8	53516		Buzzer		Appelez-nous	-
9	56260		Timer		Appelez-nous	-
10	30302		Screw,8abx1/2x6 Flat H		Appelez-nous	-
11	29857		Cap,end-r.h.		Appelez-nous	-
12	30292		Gasket,end Cap & Adhes		Appelez-nous	-
13	29890		Collar		Appelez-nous	-
14	29896		Phillips Head Screw		Appelez-nous	-
15	Y00000000		See Note Washer Outer Cabinet		Appelez-nous	-
16	Sub. To D512973		Screw, 8b-16x5/8 Tap   (Replaces: 52864)		Appelez-nous	-
17	30170		Assy,control Panel-com		Appelez-nous	-
18	70212		Screw,8-32 X 5/32 Rd H		Appelez-nous	-
19	58772		Assy,knob-timer		Appelez-nous	-
20	28124		Assy,knob-switch		Appelez-nous	-
21	10519		Retainer		Appelez-nous	-
22	29856		Gasket,end Cap & Adhes		Appelez-nous	-
23	29858		No Longer Available		Appelez-nous	-
24	Y00000000		See Note Ground Wire, Green		Appelez-nous	-
