01 - Blower Motor (convection)

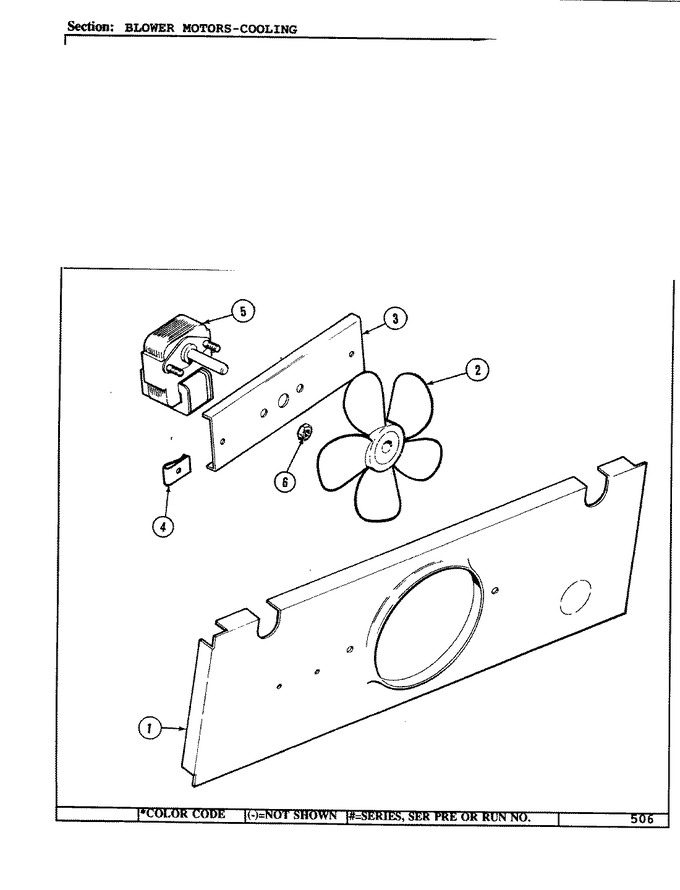

02 - Blower Motor (cooling)
03 - Body
04 - Control Panel
05 - Door
06 - Internal Controls
07 - Oven Liner
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 703096 | Plate, Motor | 4 |
|
- | ||||
| 1 | DE81-09287A | Plate, Motor (Replaces: 702044) | 1 |
|
$ 165.01 | ||||
| 2 | 701718 | Blade, Fan | 1 |
|
- | ||||
| 3 | Y703570 | Mount, Motor | 1 |
|
- | ||||
| 4 | 712038 | Tinnerman | 1 |
|
- | ||||
| 5 | Y701721 | Motor, Fan | 1 |
|
- | ||||
| 6 | M0282005 | Nut, Hex (Replaces: 701719) | 1 |
|
$ 7.07 |
