SELECT A DIAGRAM

01 - Blower Motor (convection)


02 - Blower Motor (cooling)


03 - Body


04 - Control Panel


05 - Door


06 - Internal Controls


07 - Oven Liner

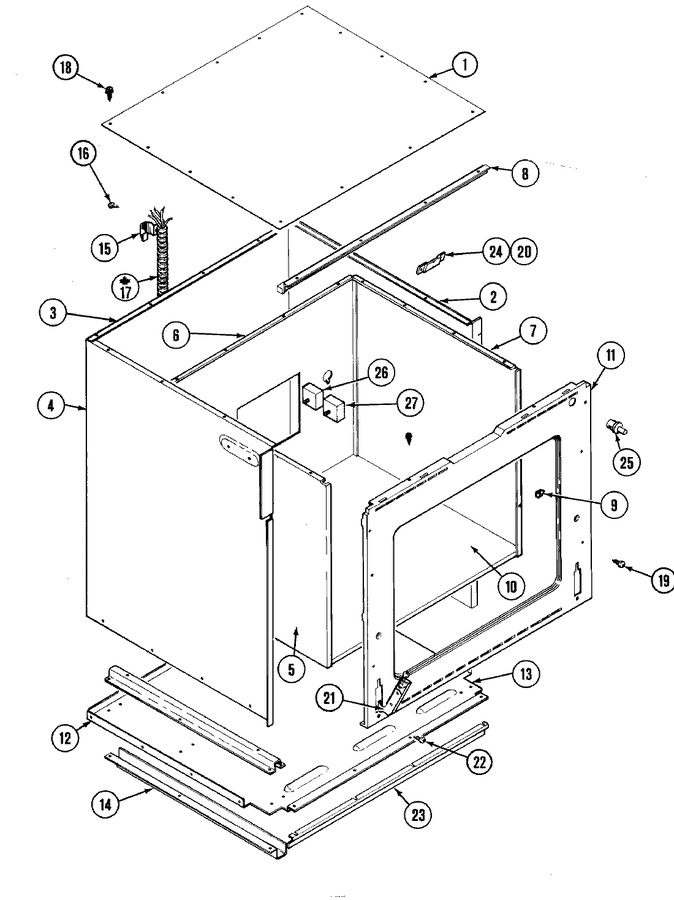

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	701681		Top (outer)	1	Appelez-nous	-
2	701672		Panel, Outer (rt)	1	Appelez-nous	-
3	701691		Panel, Rear (outer)	1	Appelez-nous	-
4	701695		Panel, Outer (lt)	1	Appelez-nous	-
5	DE81-09195A		Panel, Side (lt)   (Replaces: 701697)	1			$ 779.04
6	701700		Panel, Back	1	Appelez-nous	-
7	701676		Panel, Side (rt)	1	Appelez-nous	-
8	703095		Support, Top	1	Appelez-nous	-
9	Y700556		Clip, J	1	Appelez-nous	-
10	DE81-07471A		Panel, Bottom   (Replaces: 701669)	1			$ 320.80
11	703609		Closure, Front	1	Appelez-nous	-
12	701701		Angle, Oven Support	1	Appelez-nous	-
12	DE81-06547A		Support, Bottom   (Replaces: 701667)	1			$ 163.64
13	701668		Panel, Bottom (outer)	1	Appelez-nous	-
14	700596		Rail, Bottom	1	Appelez-nous	-
15	DE81-08030A		Clamp, Conduit   (Replaces: 701692)	1			$ 131.01
16	WP7101P126-60		Screw   (Replaces: Y708310)	1		Immediately	$ 6.85
17	701914		Cable, Wire	1	Appelez-nous	-
17	DE81-08029A		Harness, Main   (Replaces: 701693)	1			$ 132.75
18	WP12990527		Screw   (Replaces: Y708955)	1		Immediately	$ 7.15
19	W11233072		Screw   (Replaces: Y708733)	1		Immediately	$ 12.62
20	WP90767		Screw   (Replaces: 715773)	1		Immediately	$ 7.04
21	Y703419		Hinge	1	Appelez-nous	-
22	WP3196183		Screw   (Replaces: Y701664)	1		Immediately	$ 6.98
23	701848		Trim, Oven (lower)	1	Appelez-nous	-
24	701680		Bracket, Vent Tube	1	Appelez-nous	-
25	701666		Switch, Door	1	Appelez-nous	-
25	WPW10068250		Screw   (Replaces: Y700582)	1			$ 3.66
26	701698		Switch, Broil Cycle	1	Appelez-nous	-
27	WPW10339879		Tie, Cable   (Replaces: Y702105)	1			$ 7.11
27	701699		Switch, Bake Cycle	1	Appelez-nous	-
27	704354		Switch, Bake Cycle	4	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
