01 - Blower Motor (convection)
02 - Blower Motor (cooling)
03 - Body
04 - Control Panel
05 - Door
06 - Internal Controls
07 - Oven Liner
SELECT A DIAGRAM
New Model Search:

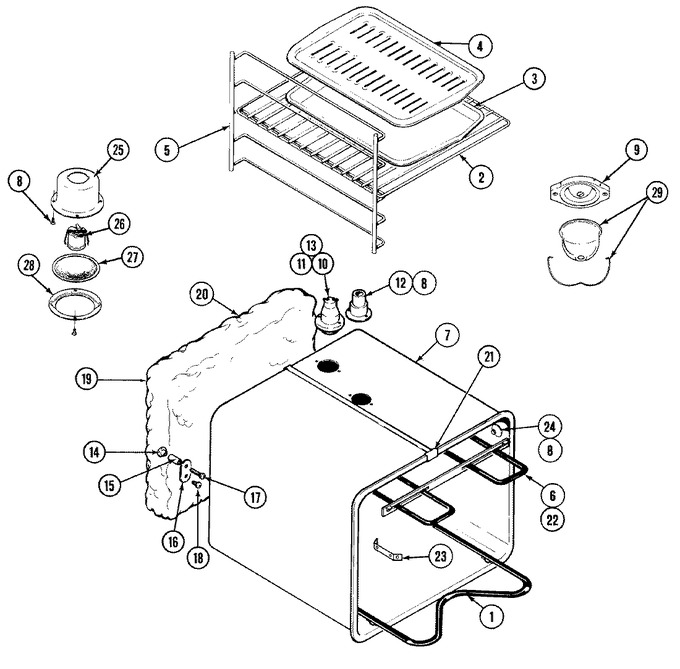

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPY04100020 | Element, Bake 240v (Replaces: Y701724) | 1 |
|
Immediately | $ 136.96 | |||
| 2 | Y701725 | Rack, Oven | 1 |
|
- | ||||
| 3 | 4396923 | Pan, Broil (Replaces: 708810) | 1 |
|
Immediately | $ 52.04 | |||
| 4 | 4396923 | Rack, Broil Pan (Replaces: Y708811) | 1 |
|
Immediately | $ 52.04 | |||
| 5 | Y701728 | Support, Rack | 1 |
|
- | ||||
| 6 | WPY04100016 | Element, Broil (Replaces: Y701729) | 1 |
|
$ 137.21 | ||||
| 7 | Y712377 | Weld, Oven | 3 |
|
- | ||||
| 7 | 701733 | Weld, Oven | 1 |
|
- | ||||
| 9 | 715281 | Receptacle, Light | 1 |
|
- | ||||
| 10 | 701736 | Washer | 1 |
|
- | ||||
| 11 | 715485 | Screw | 1 |
|
- | ||||
| 12 | 701738 | Tube, Vent | 1 |
|
- | ||||
| 13 | 8009 | Bulb, Oven (40 Watt Brass) (Replaces: Y707319) | 1 |
|
Immediately | $ 16.80 | |||
| 14 | 715294 | Nut, Tee | 1 |
|
- | ||||
| 15 | 701741 | Spacer, Oven | 1 |
|
- | ||||
| 16 | 701742 | Plate, Grounding | 1 |
|
- | ||||
| 17 | WP71001171 | Screw (Replaces: Y707745) | 1 |
|
$ 6.26 | ||||
| 18 | 701744 | Screw | 1 |
|
- | ||||
| 19 | 701702 | Insulation, Wrap | 1 |
|
- | ||||
| 20 | 701703 | Insulation, Rear | 1 |
|
- | ||||
| 21 | Y702618 | Clip, Oven | 1 |
|
- | ||||
| 21 | WP210720 | Rivet (Replaces: 701662) | 1 |
|
$ 12.14 | ||||
| 22 | 702594 | Spacer | 1 |
|
$ 641.16 | ||||
| 23 | Y701541 | Clip, Bulb | 1 |
|
- | ||||
| 24 | 712088 | Cover, Meat Probe | 1-2 |
|
- | ||||
| 25 | 704142 | Receptacle, Holder | 3 |
|
- | ||||
| 26 | Y704145 | Receptacle, Snap-in | 3 |
|
- | ||||
| 27 | Y704143 | Lens, Light | 3 |
|
- | ||||
| 28 | Y704144 | Retainer, Lens | 3 |
|
- | ||||
| 29 | 712282K | Light-lens Kt+ | 1 |
|
- |
