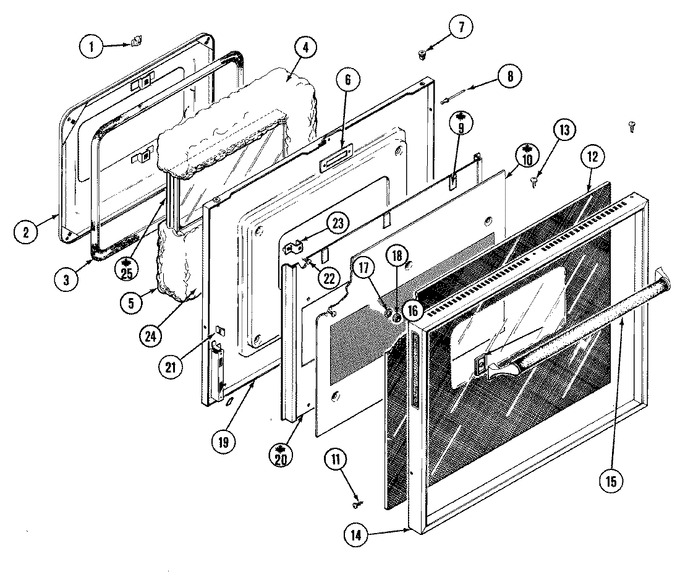

SELECT A DIAGRAM

01 - Blower Motor (convection)


02 - Blower Motor (cooling)


03 - Body


04 - Control Panel


05 - Door


06 - Internal Controls


07 - Oven Liner


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y700503		Clip, Retainer	1	Appelez-nous	-
2	Y701649		Plug, Oven	1	Appelez-nous	-
3	WP701650		Seal, Oven Door   (Replaces: 701650)	1			$ 184.62
4	701658		Insulation, Bottom	1	Appelez-nous	-
5	701660		Insulation, Top	1	Appelez-nous	-
6	Y712010		Plate, Latch (upper)	1	Appelez-nous	-
7	701643		Nut, Push In	1	Appelez-nous	-
8	DE81-07129A		Rivet, Accordion   (Replaces: 701641)	1			$ 128.48
9	715938		Pad, Spacer	1	Appelez-nous	-
9	W10840861		Pad, Spacer   (Replaces: Y702688)	1			$ 8.89
10	DE81-09358A		Panel, Perforated (upr)   (Replaces: 703784)	1			$ 54.82
10	701644		Panel, Perforated	1	Appelez-nous	-
11	W11233072		Screw   (Replaces: Y708733)	1		Immediately	$ 12.62
12	Y703706		Glass, Outer	1	Appelez-nous	-
13	W11233072		Screw   (Replaces: Y707347)	1		Immediately	$ 12.62
14	703705		Frame	1	Appelez-nous	-
15	Y703707		Handle	1	Appelez-nous	-
16	Y703430		Pad, Mounting	1	Appelez-nous	-
17	Y703431		Palnut	1	Appelez-nous	-
18	Y703433		Bushing	1	Appelez-nous	-
19	712188		Liner, Door	1	Appelez-nous	-
20	712250		Baffle	1	Appelez-nous	-
20	11034884		Baffle, Door   (Replaces: 701645)	1			$ 93.30
21	Y700834		Clip	1	Appelez-nous	-
22	WPY706189		Screw   (Replaces: 700906)	1		Immediately	$ 6.47
23	701652		Bracket, Stand-off	1	Appelez-nous	-
24	DE81-08905A		Insulation, Side   (Replaces: 701659)	1			$ 160.26
25	715870		Screw	1	Appelez-nous	-
25	WP210720		Rivet   (Replaces: 701662)	1			$ 12.14
25	Y703449		Washer	1	Appelez-nous	-
25	703804		Pack, Window	1	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
