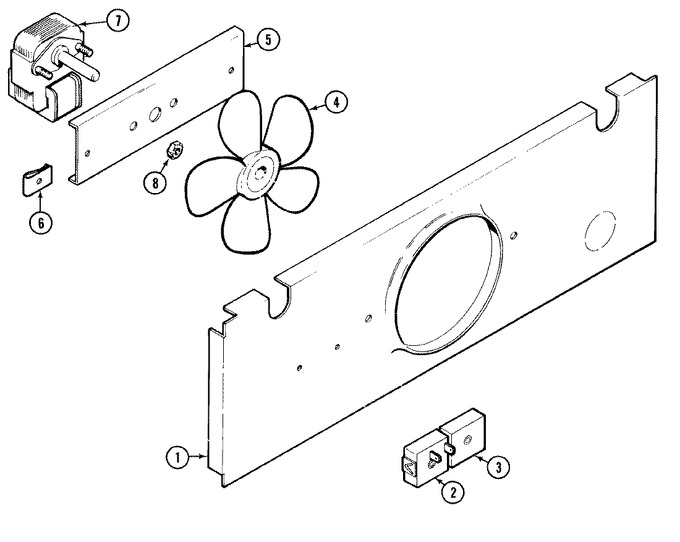

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	704336		Plate, Motor	11	Appelez-nous	-
1	WP90767		Screw   (Replaces: Y700502)	11		Immediately	$ 7.04
2	704354		Switch, Bake Cycle	11	Appelez-nous	-
3	704355		Switch, Broil Cycle	11	Appelez-nous	-
3	704335		Screw	11	Appelez-nous	-
4	701718		Blade, Fan	11	Appelez-nous	-
5	WP90767		Screw   (Replaces: 715773)	11		Immediately	$ 7.04
5	Y703570		Mount, Motor	11	Appelez-nous	-
6	Y700556		Clip, J	11	Appelez-nous	-
7	Y701721		Motor, Fan	11	Appelez-nous	-
8	M0282005		Nut, Hex   (Replaces: 701719)	11			$ 7.07
