01 - Blower Motor (convection)
02 - Blower Motor (cooling)
03 - Body
04 - Control Panel
05 - Door
06 - Internal Controls
07 - Liner
SELECT A DIAGRAM
New Model Search:

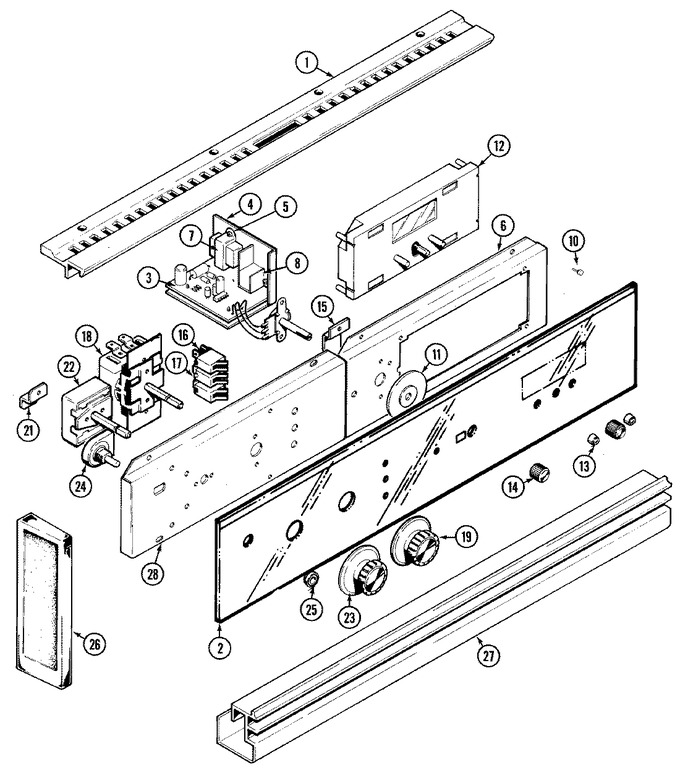

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 704714 | Screw, Trim | 11 |
|
- | ||||
| 1 | 704256 | Extrusion, Top | 11 |
|
- | ||||
| 2 | 704262 | Glass | 11 |
|
- | ||||
| 3 | 704242 | Board, Circuit | 11 |
|
- | ||||
| 4 | 701844 | Shield, C.b. | 11 |
|
- | ||||
| 5 | Y700584 | Screw | 11 |
|
- | ||||
| 5 | 700893 | Support, P.c. Board | 11 |
|
- | ||||
| 6 | 705336 | Panel, Control (rt) | 11 |
|
- | ||||
| 7 | 701629 | Transformer | 11 |
|
- | ||||
| 8 | 703765 | Relay | 11 |
|
- | ||||
| 9 | 701630 | Bracket, Mount | 11 |
|
- | ||||
| 9 | 703729 | Harness, P.c. Board | 11 |
|
- | ||||
| 9 | 703730 | Harness, Probe | 11 |
|
- | ||||
| 10 | 705331 | Pad, Spacer | 11 |
|
- | ||||
| 11 | 704319 | Dial, Temperature | 11 |
|
- | ||||
| 12 | 703676 | Bracket, Timer | 11 |
|
- | ||||
| 12 | 703679 | Palnut | 11 |
|
- | ||||
| 12 | Y703708 | Clock | 11 |
|
- | ||||
| 13 | WP7711P492-60 | Knob, Clock (sm/blk) (Replaces: Y704239) | 11 |
|
$ 12.13 | ||||
| 14 | 703810 | Harness, Wire | 11 |
|
- | ||||
| 14 | WP7711P492-60 | Knob, Clock (blk) (Replaces: Y703910) | 11 |
|
$ 12.13 | ||||
| 15 | 701754 | Bracket, Hat | 11 |
|
- | ||||
| 16 | Y702394 | Light, Indicator 240v | 11 |
|
- | ||||
| 17 | Y702393 | Light, Indicator-120v | 11 |
|
- | ||||
| 17 | 701627 | Led | 11 |
|
- | ||||
| 18 | DE81-09159A | Wire, Wire (Replaces: 703370) | 11 |
|
$ 313.88 | ||||
| 18 | 703080 | Thermostat-upper | 11 |
|
- | ||||
| 18 | 703089 | Wire, Tan | 11 |
|
- | ||||
| 18 | DE81-04412A | Wire, Pink (Replaces: 703090) | 11 |
|
$ 327.97 | ||||
| 18 | 703290 | Wire, Resistor | 11 |
|
- | ||||
| 19 | 703917 | Knob, Thermostat | 11 |
|
$ 21.34 | ||||
| 20 | 71002058 | Screw (Replaces: Y702124) | 11 |
|
$ 5.82 | ||||
| 21 | 701609 | Angle, Attachment | 11 |
|
- | ||||
| 21 | WP12990527 | Screw (Replaces: Y708955) | 11 |
|
Immediately | $ 7.15 | |||
| 22 | 703738 | Harness, Wire | 11 |
|
- | ||||
| 22 | 703077 | Switch, Selector Upper | 11 |
|
- | ||||
| 23 | 703901 | Knob, Selector Switch (blk) | 11 |
|
- | ||||
| 24 | 700558 | Switch, Light (push) | 11 |
|
- | ||||
| 25 | 704323 | Bezel, Switch | 11 |
|
- | ||||
| 26 | 704257 | End Cap (lt-blk) | 11 |
|
- | ||||
| 26 | 704258 | End Cap (rt-blk) | 11 |
|
- | ||||
| 27 | 704255 | Extrusion, Bottom (blk) | 11 |
|
- | ||||
| 28 | 705337 | Panel, Control (lt) | 11 |
|
- | ||||
| 28 | Y700630 | Lens, Indicator Lights | 11 |
|
$ 4.18 | ||||
| 28 | 702746 | Tie, Mount Cable | 11 |
|
- |
