01 - Blower Motor (convection)
02 - Blower Motor (cooling)
03 - Body
04 - Control Panel
05 - Door
06 - Internal Controls
07 - Liner
SELECT A DIAGRAM
New Model Search:

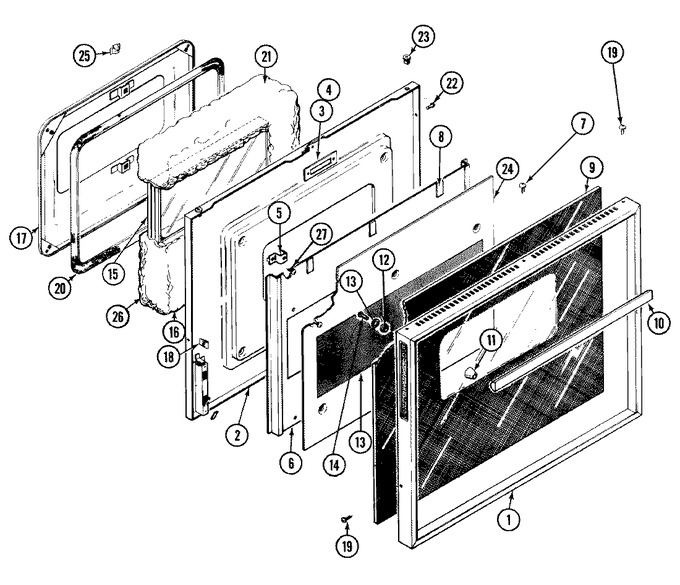

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 704318 | Frame | 11 |
|
- | ||||
| 2 | Y703449 | Washer | 11 |
|
- | ||||
| 2 | 712188 | Liner, Door | 11 |
|
- | ||||
| 2 | 715870 | Screw | 11 |
|
- | ||||
| 3 | Y712010 | Plate, Latch (upper) | 11 |
|
- | ||||
| 4 | WP210720 | Rivet (Replaces: 701662) | 11 |
|
$ 12.14 | ||||
| 5 | 701652 | Bracket, Stand-off | 11 |
|
- | ||||
| 6 | 712250 | Baffle | 11 |
|
- | ||||
| 6 | Y704223 | Bumper, Button | 11 |
|
- | ||||
| 7 | WPY706189 | Screw (blk) (Replaces: Y704238) | 11 |
|
Immediately | $ 6.47 | |||
| 8 | W10840861 | Pad, Spacer (Replaces: Y702688) | 11 |
|
$ 8.89 | ||||
| 9 | 704241 | Glass, Door | 11 |
|
- | ||||
| 10 | Y704225 | Handle | 11 |
|
- | ||||
| 11 | Y704224 | End Cap (blk) | 11 |
|
- | ||||
| 12 | Y704230 | Washer | 11 |
|
- | ||||
| 13 | Y700446 | Washer | 11 |
|
$ 5.27 | ||||
| 14 | Y704231 | Screw | 11 |
|
- | ||||
| 15 | 703804 | Pack, Window | 11 |
|
- | ||||
| 16 | 701658 | Insulation, Bottom | 11 |
|
- | ||||
| 17 | 712209 | Plug, Upper | 11 |
|
- | ||||
| 18 | Y700834 | Clip | 11 |
|
- | ||||
| 19 | W11233072 | Screw (blk) (Replaces: Y704237) | 11 |
|
Immediately | $ 12.62 | |||
| 20 | WP701650 | Seal, Oven Door (Replaces: 701650) | 11 |
|
$ 184.62 | ||||
| 21 | DE81-08905A | Insulation, Side (Replaces: 701659) | 11 |
|
$ 160.26 | ||||
| 22 | DE81-07129A | Rivet, Accordion (Replaces: 701641) | 11 |
|
$ 128.48 | ||||
| 23 | 701643 | Nut, Push In | 11 |
|
- | ||||
| 24 | DE81-09358A | Panel, Perforated (upr) (Replaces: 703784) | 11 |
|
$ 54.82 | ||||
| 25 | Y700503 | Clip, Retainer | 11 |
|
- | ||||
| 26 | 701660 | Insulation, Top | 11 |
|
- | ||||
| 27 | 703958 | Screw | 11 |
|
- |
